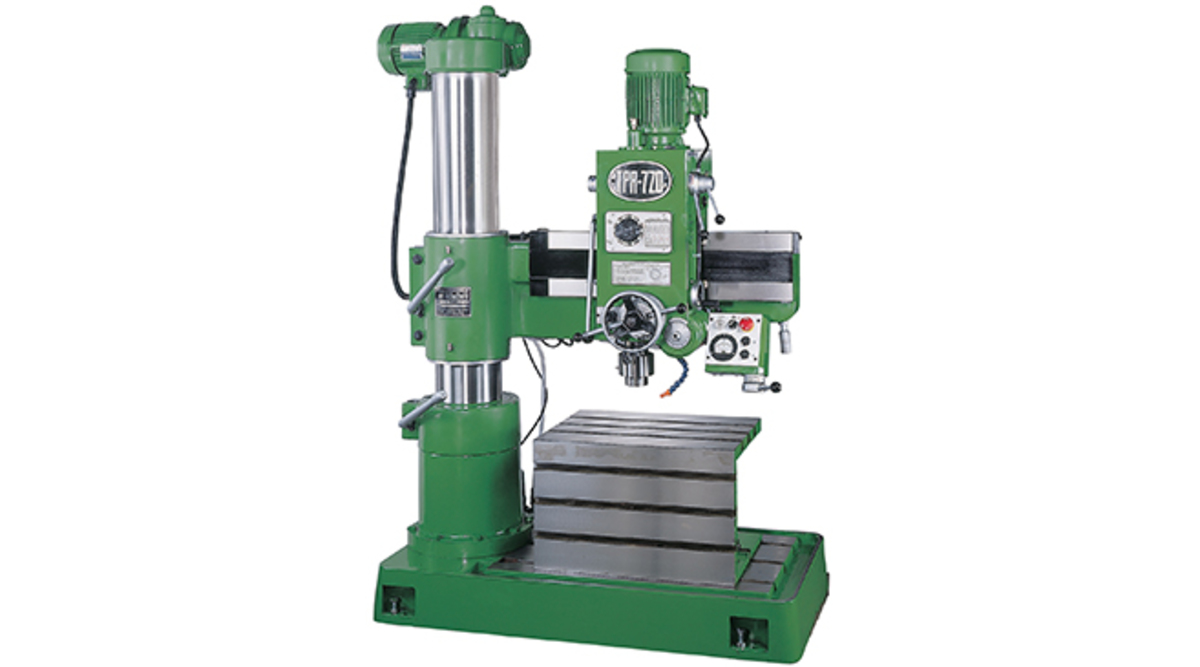

TPR-720A
Request Quote on This Model
Select Machine Size/Model Here
Specifications
| MODEL | TPR-720A | |
| Dai. Of column | ||
| Distance from column surface spindle center, Max | 750 | |
| Distance from column surface to spindle center, Min | ||
| Travel of spindle head | 530 | |
| Distance from base surface to spindle end, Max | 1060 | |
| Distance from base surface to spindle, Min | 260 | |
| Elevating height of Arm | 580 | |
| Effective area of box table | 600x445x380 | |
| Dimension of base | 1260x640x160 | |
| Taper hole spindle | MT#4 | |
| Stroke of spindle | 220 | |
| R.P.M of spindle (rmp x steps) | 88,154,282,455,796,1500x6 | |
| Feed of spindle (rev x steps) | 0.05,0.09,0.15x3 | |
| Main motor (HP) | 2HP | |
| Elevating motor (HP) | 1HP | |
| Clamping motor (HP) | ||
| Coolant equipment (HP) | 1/8HP | |
| Machine height from floor (max) | 2170 | |
| Base + column height | 1850 | |
| Net weight (approx.) Kgs | 1120 | |
| Shipping weight (approx) kgs | 1250 | |
| Shipping dimensions (lxwxh) | 1680x826x2160 | |
| Capacity Drilling | Steel | 32Ø |
| Cast Iron | 50Ø | |
| Capacity Tapping | Steel | 25Ø |
| Cast Iron | 32Ø | |
