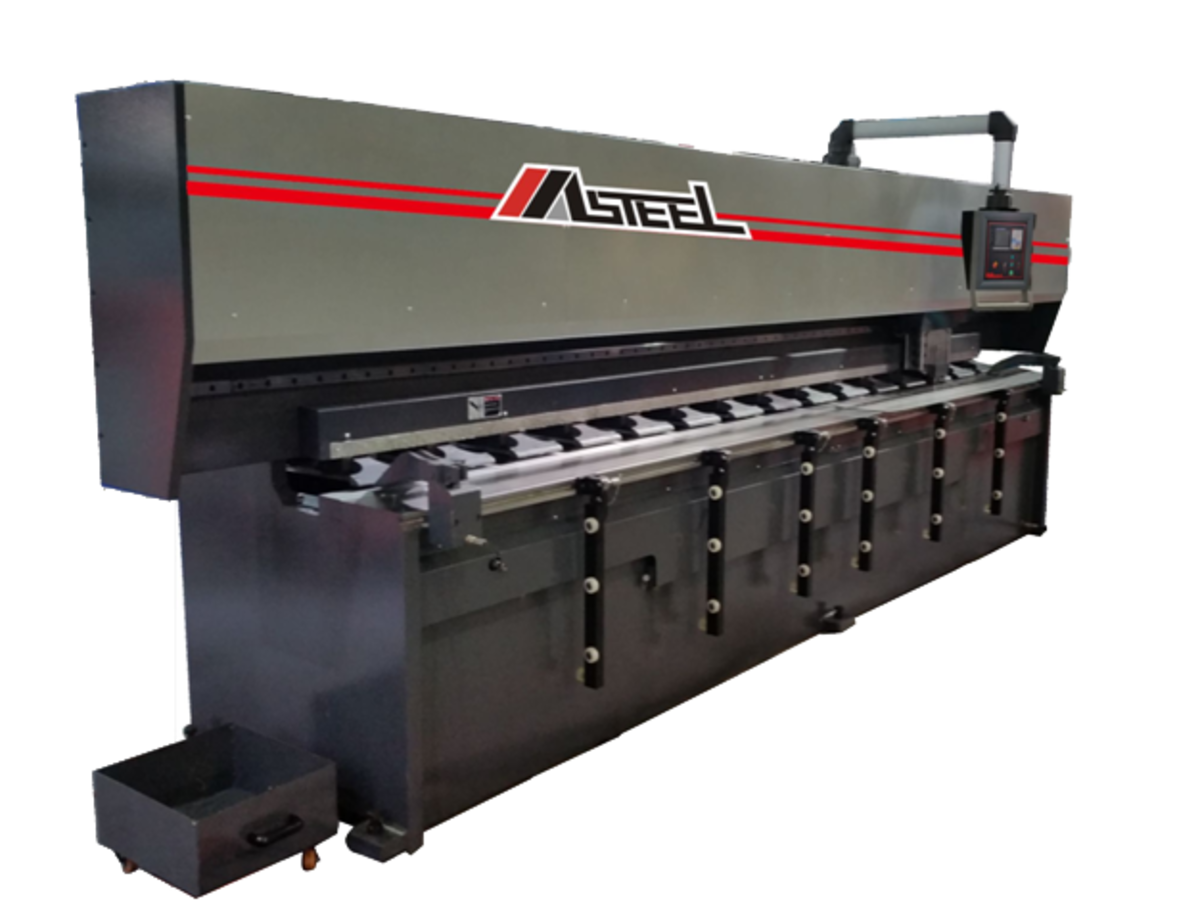

NCV-3000
Request Quote on This Model
Select Machine Size/Model Here
Technical Specifications
| Sheet size --Width “Y” | 1.2M/ 48 |
| Sheet size --Length “X” | 3.2 M/ 122” |
| Thickness range | 0.8mm to 6mm/ 0.031 to 0.250” |
| Table height | 660mm/26” |
| Cutting speed | 10 to 20 M/ min. 400 to 800”/ min |

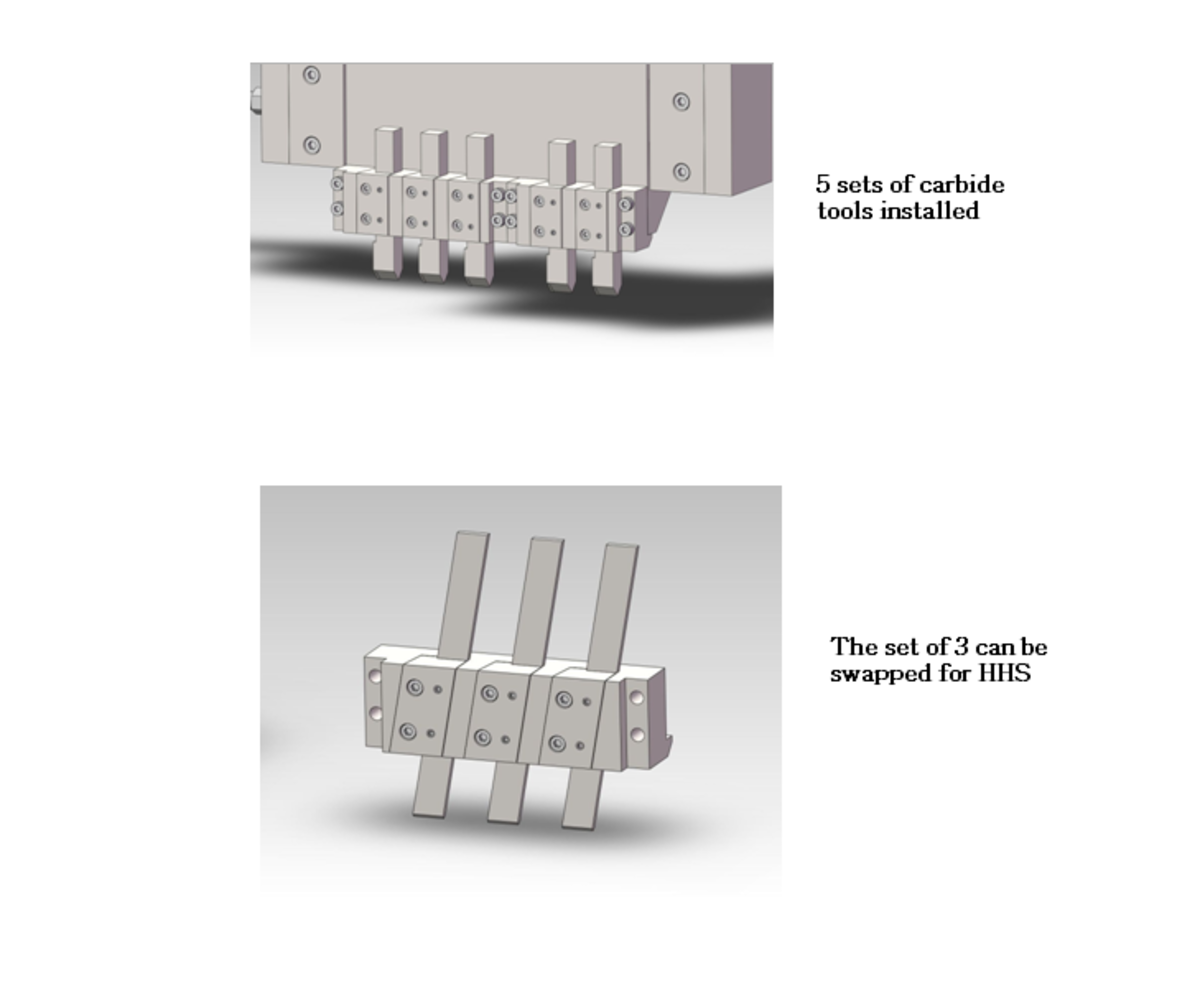

| Tool cutting capacity “Z” | 2.25 square mm 0.06 x 0.06” |
| Z Axis min. feed | 0.01mm / 0.0004” |
| Sheet feed positioning Y | 0-2M/min 0 to80”/min |
| Sheet feed accuracy Y | 0.01mm/ 0.0004 |

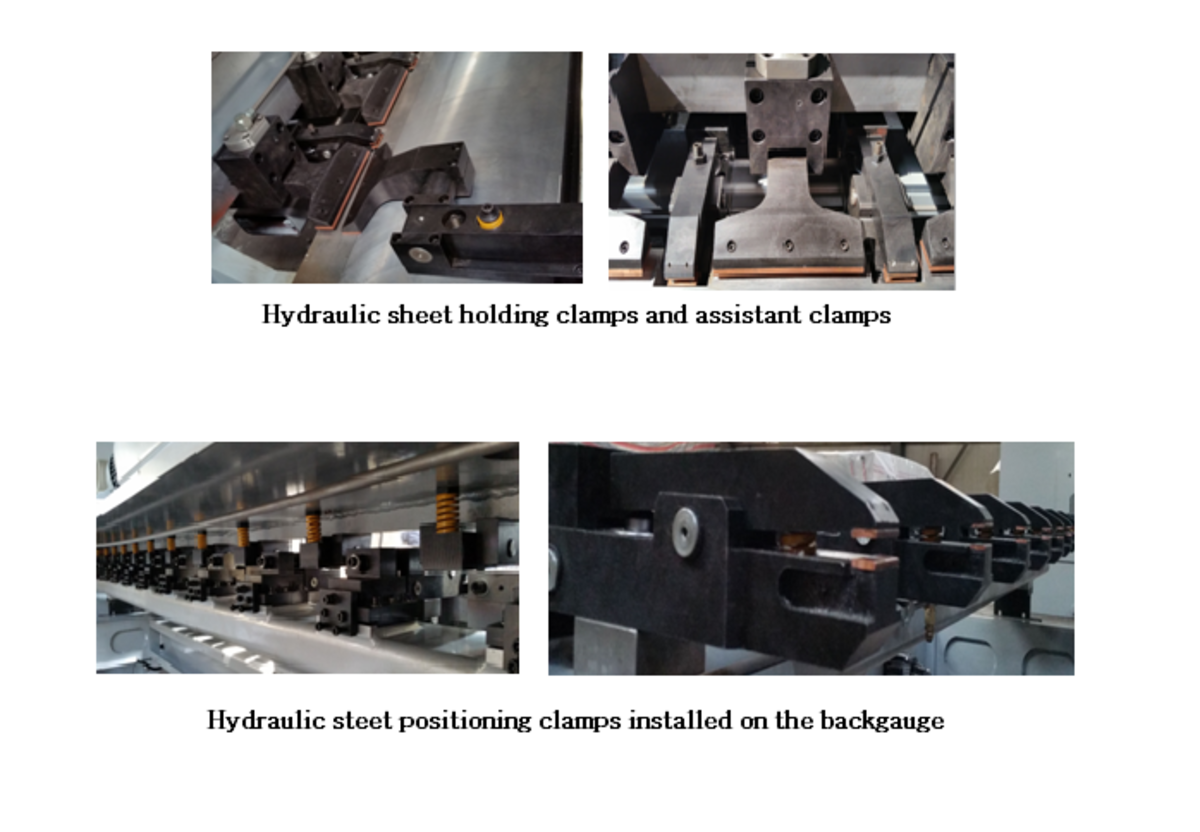

| Clamping | Pneumatic operated full length clamps |
| Overall width | 2200mm./ 87” |
| Overall Height | 2300mm/ 91” |
| Overall Length | 190” |
| Ship weight (lbs. approx.) | 9MT/20,000 |
| Motor H.P. X | 5.5 |
| Motor HP Y | 1.3 |
| Motor HP Z | 1.3 |
| Compressed air | 90 psi |
| Voltage | 230/460/3/60Hz |
