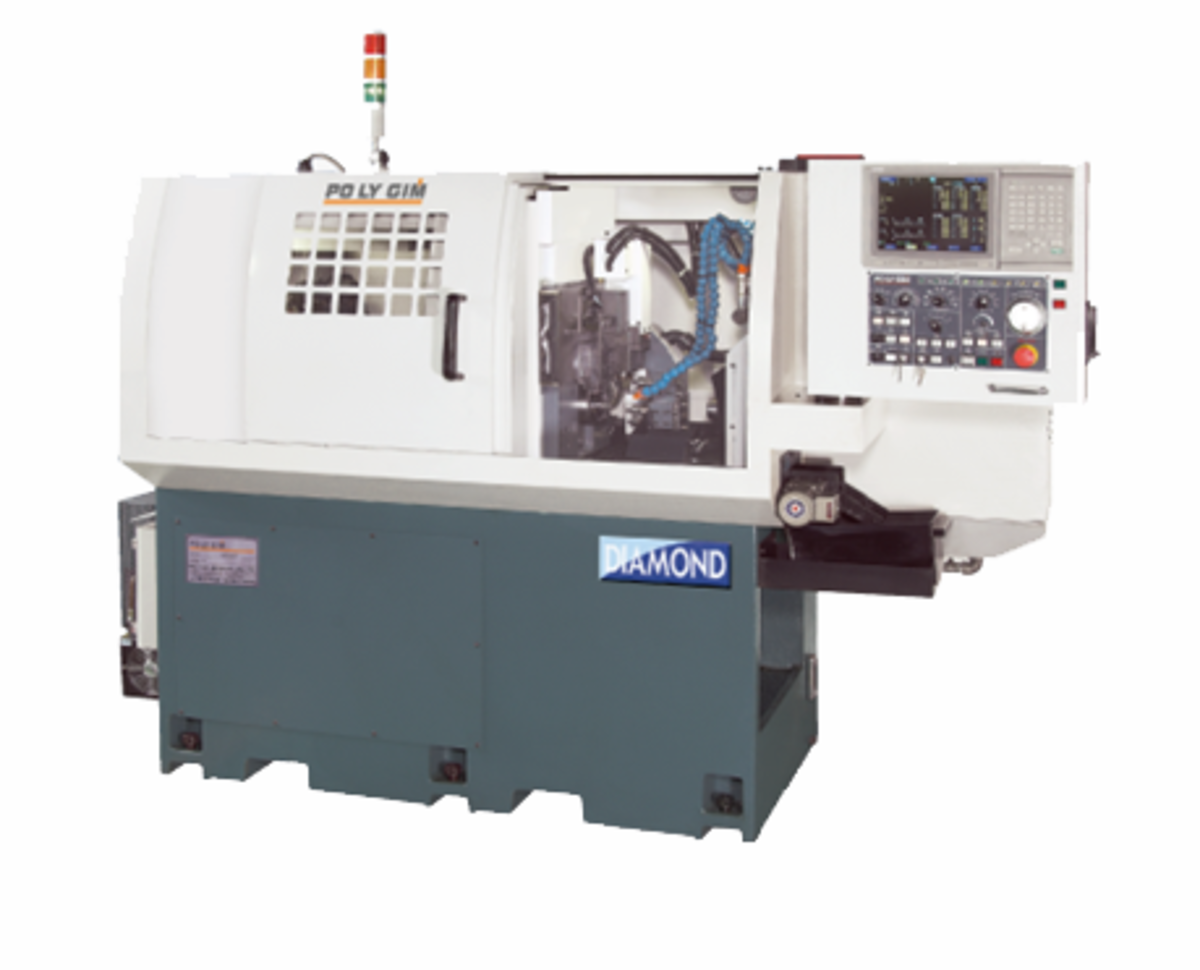

DIAMOND 20
Select Machine Size/Model Here
Specifications
| Items | DIAMOND 20 | |
| Working Range | Max. Machining Dia. | 20 mm |
| Max. Machining Length Per Chucking | 250 mm | |
| Max. Drilling Dia. | 14 mm | |
| Max.Tapping Dia. | M10 | |

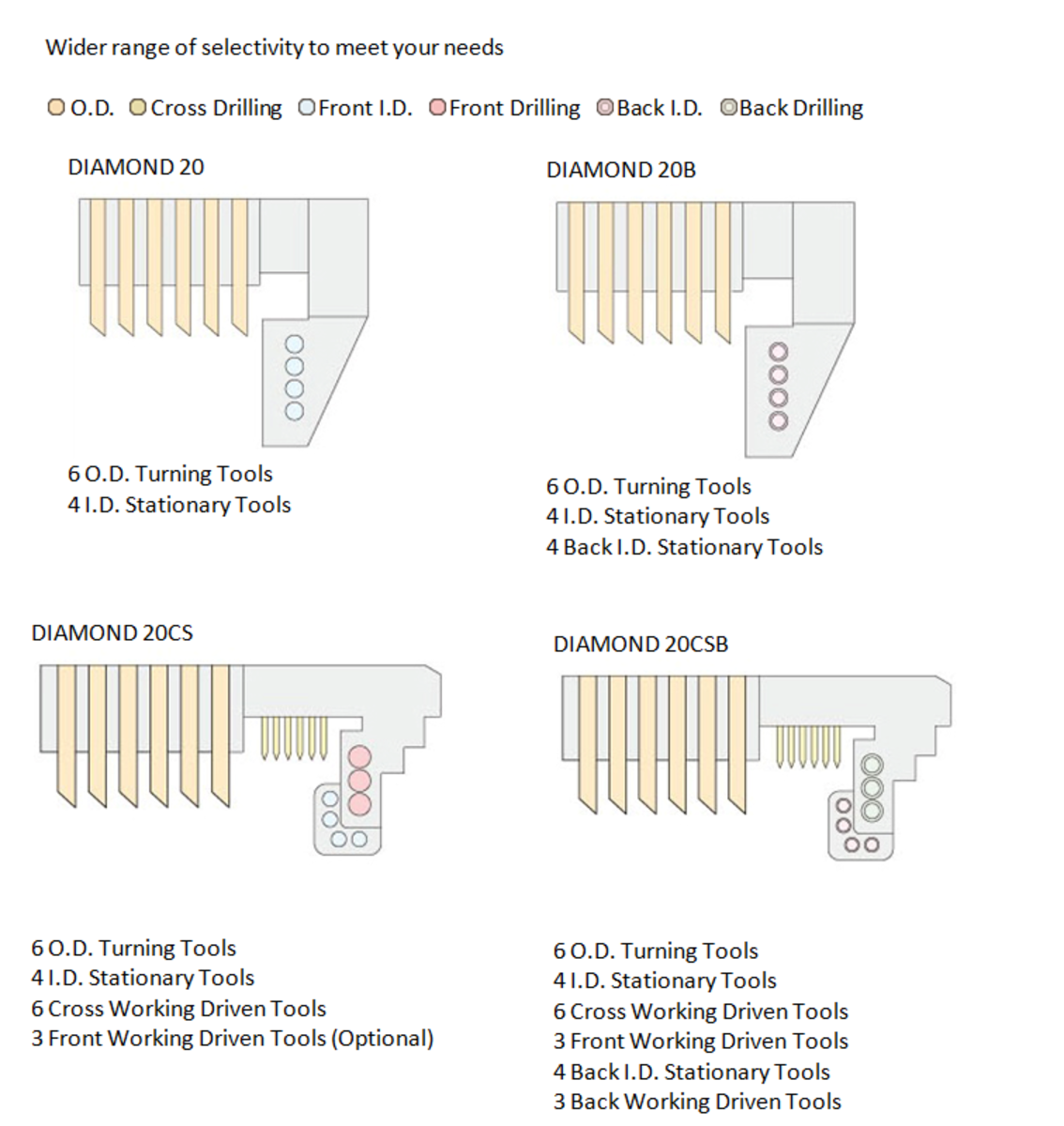

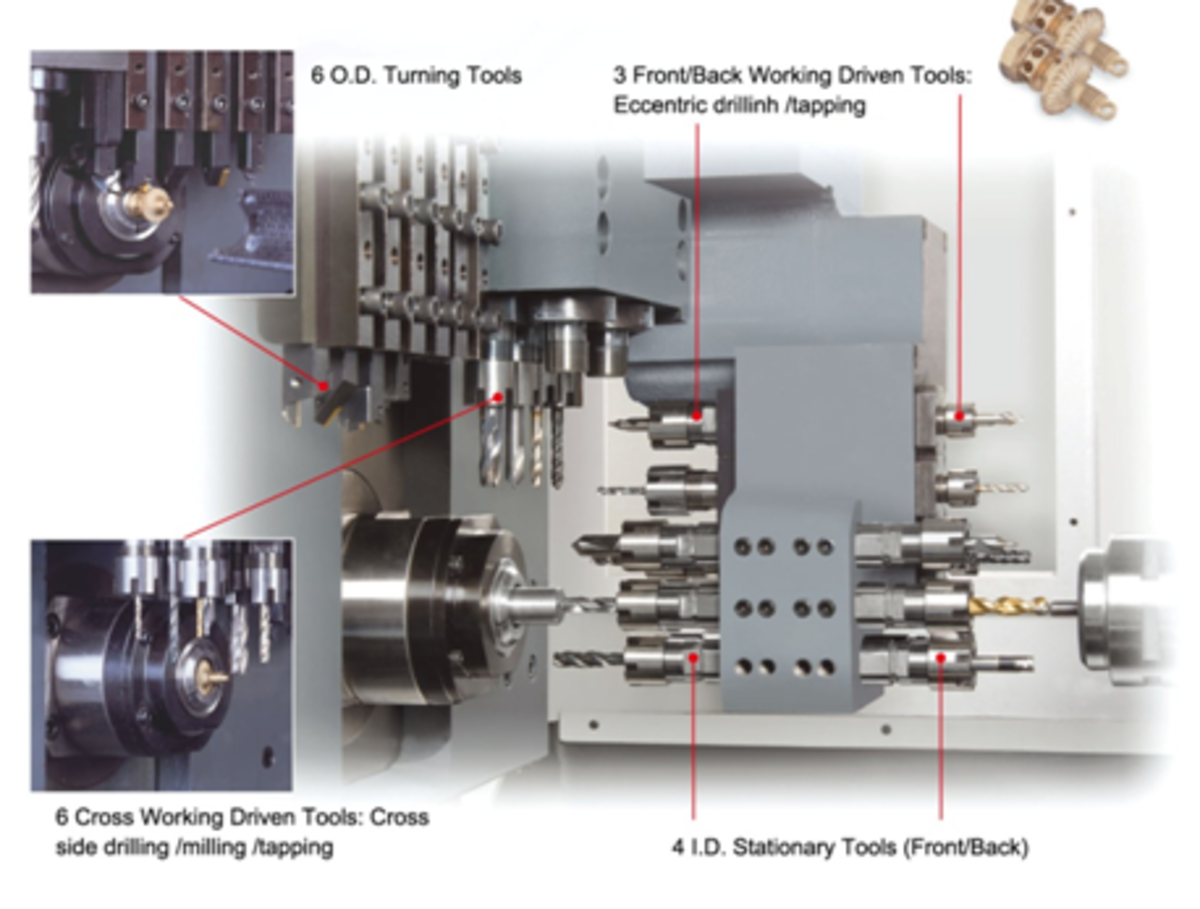

| O.D. Tooling | Number of Tools | 6 |
| Dimension | 12 ×12 ×100 | |
| I.D. Tooling | Number of Tools | 4 |
| Dimension | 10 mm (ER16) | |
| Cross Working Driven Tooling | Number of Tools | - |
| Dimension | - | |
| Cross Spindle Speed | - | |
| Front Working Driven Tooling | Number of Tools | - |
| Dimension | - | |
| Spindle Speed | - | |
| Back I.D. Tooling | Number of Tools | - |
| Dimension | - | |
| Back Working Driven Tooling | Number of Tools | - |
| Dimension | - | |
| Spindle Speed | - | |
| Spindle | Bore of Spindle | 21 mm |
| Spindle Speed | 200-10000 r.p.m. | |
| Back Spindle | Back Spindle Hole Dia. | - |
| Back Spindle Speed | - | |
| Max. Length for Front Ejection | - | |
| Rapid Speed | Rapid Speed | 18 M |
| Motors | Spindle Motor | 3.7 kw |
| Back Spindle Motor | - | |

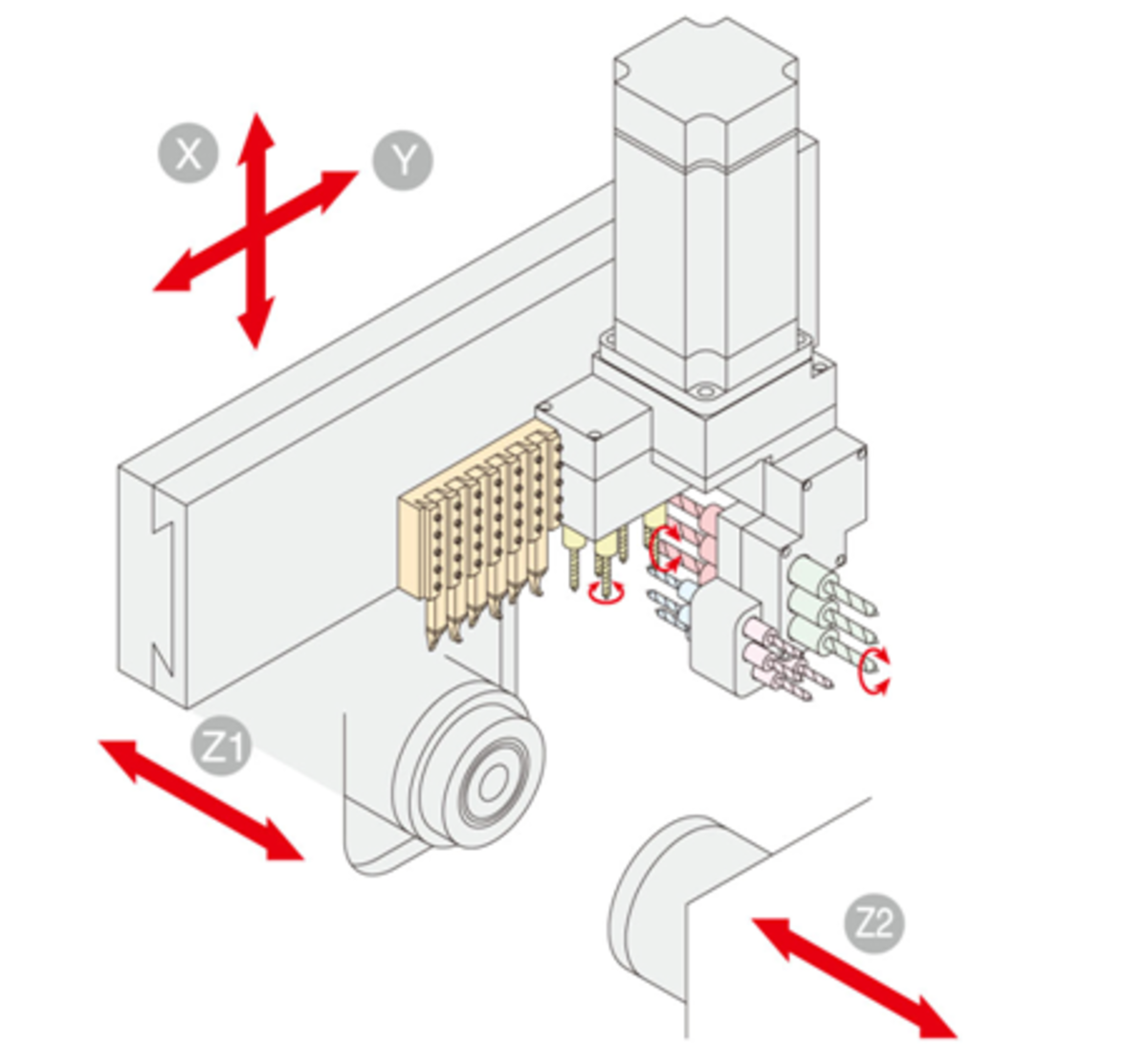

| X1, Y1, Z1 Axis Motor | 0.5 kw | |
| Z2 Axis Motor | - | |
| Coolant Pump | 0.18 kw | |
| Lubrication | 4 w | |
| Cross Spindle | - | |
| Machine Dimensions | Center Height | 960 mm |
| Weight | 2150 kg | |
| Machine Dimension | 1588 × 988 × 1568 mm | |
| Air Pressure | Air Pressure | 5 kg/cm |
| Air Supply | 10 L/min | |
