MM-2S

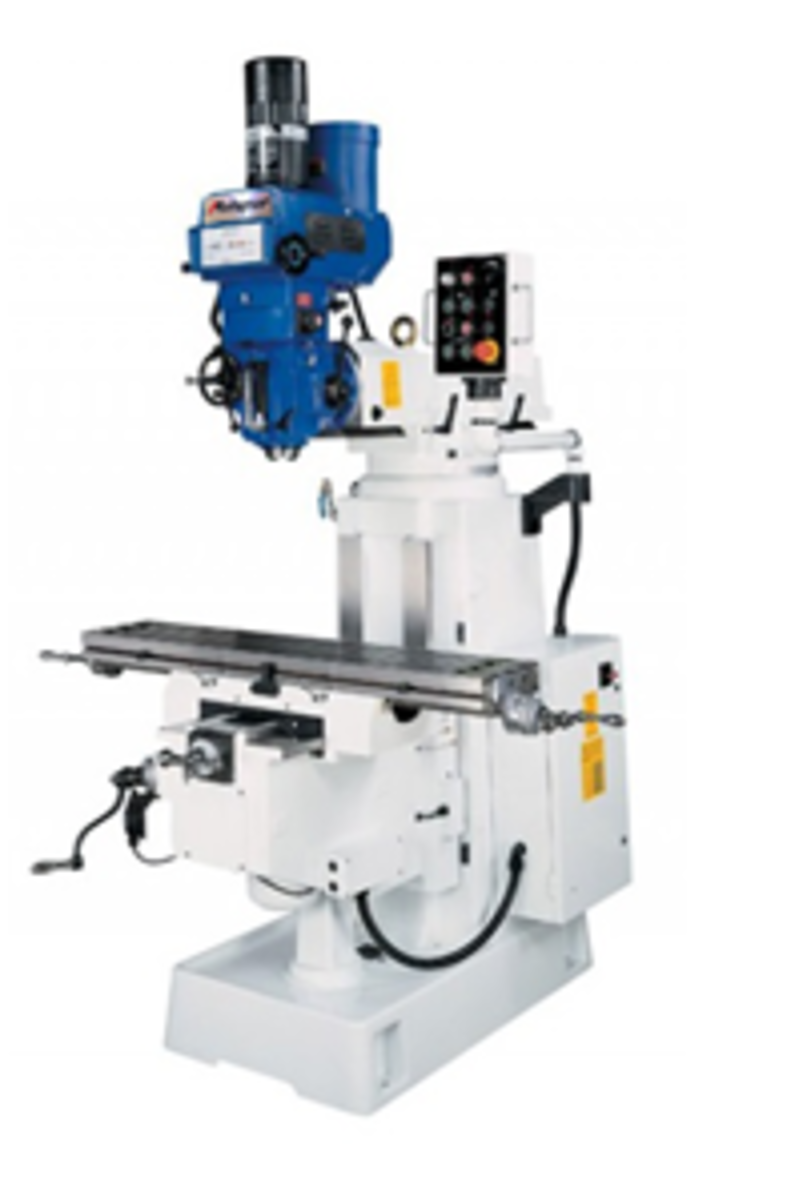

Series Image

OPTIONS

MM-2S & MM-2VS:
1067 x 230 TABLE
Power Feed X or Y or Z axis AL-500S

MM-4S, MM-4VS & MM-4EVS:
5HP motor
1370 x 254 TABLE
Power Feed X or Y or Z axis AL-500S
NT#40 Spindle with Quill Dia. 100mm
COOLANT PUMP & CHIP TRAY
PENDANT STYLE OPERATOR BOX

MM-5VK:
Power Feed X or Y axis AL-500S

Request Quote on This Model

Select Machine Size/Model Here

Specifications

ITEM MM-2S
TABLE TABLE SIZE 1067 x 230
T SLOT (W X NO X PITCH) 16 x 3 x 63
TRAVEL X Y Z - MANUAL 725 x 305 x 406
X Y Z - AUTO 640 x 305 x 406
SPINDLE SPINDLE NOSE R8 OR N.S.T.30
STEPS 8
SPINDLE SPEED Rpm 80-2720
SWIVELLING ANGLE 45°   (R&L)
QUILL TRAVEL 127
QUILL FEEDS/REV 0.04/0.08/0.15
SPINDLE NOSE TO TABLE 57 – 463
SPINDLE CENTER TO COLUMN 213 – 533
CROSS TRAVEL OF RAM 320
HORIZONTAL ROTATION OF RAM 360°
MOTOR VERTICAL SPINDLE 2HP-3P
COOLANT PUMP 1/8 HP – 2P
SIZE MACHINE (L x W x H) 1400 x 1450 x 2100
NET WEIGHT (KGS) 900
Request Quote on This Model
