SDW-24

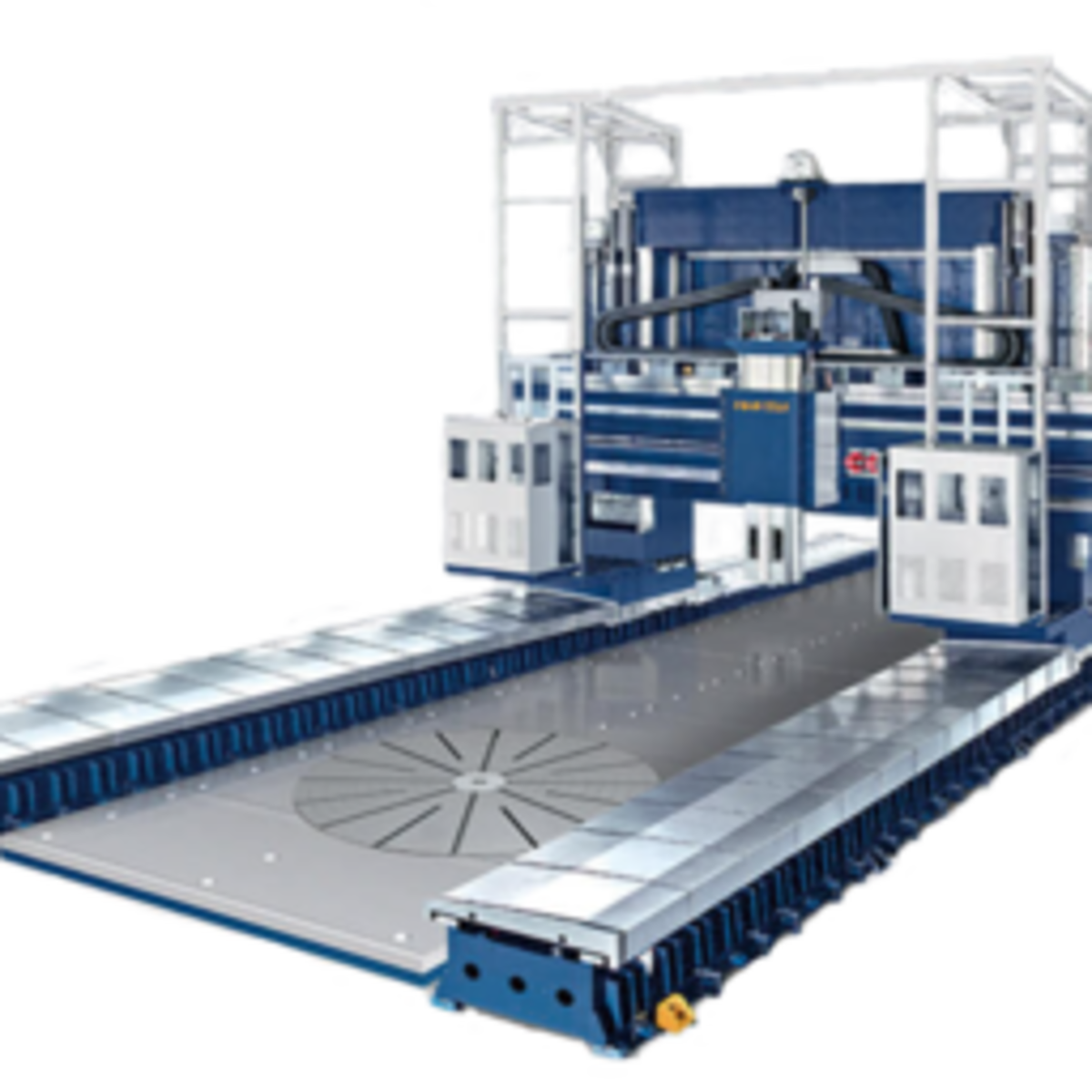

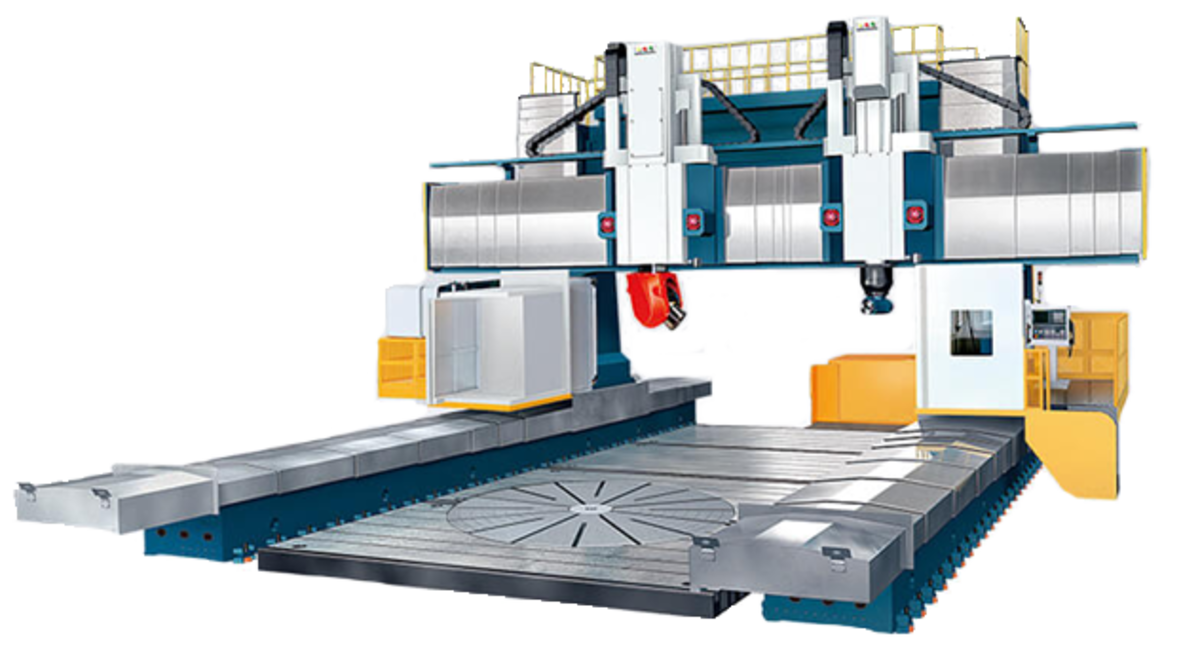

SLIDING DOUBLE COLUMN MACHINING CENTERS WITH MOVING-CROSSRAIL (W-TRAVEL)
Request Quote on This Model
Select Machine Size/Model Here
Specifications
| Model | Unit | SDW-24 | |
| Between Columns | mm | 2450 | |
| Travel | X-Travel | m | 6m ~ 36m Every 1m add |
| Y-Travel | mm | 2400 | |
| Z-Travel | mm | SDW:1100 | |
| W-Travel | mm | 1500/2000 for SDW series | |
| Table | Table wide | mm | 1600 |
| Table length | m | Table length = X Travel | |
| Spindle nose to table | mm | SDW:800~800 + Z +W | |
| Power-speed | kW | 22/26 – 6000 rpm | |
| X axis rack-pinion | - | - | |
| Y axis rack-pinion | - | NA | |
| ATC Capacity | pcs | 32 pcs | |
| X/Y/Z/W Feed rate G00 | m/min | 12/12/10/1 | |
| Machine size | Length | m | 13.5m ~ 43.5 Every 1m add |
| Width | m | 6.5 | |
| Height | m | 7.2 | |
| Machine Weight (app.) | ton | 50+2/m | |
