HDT-18

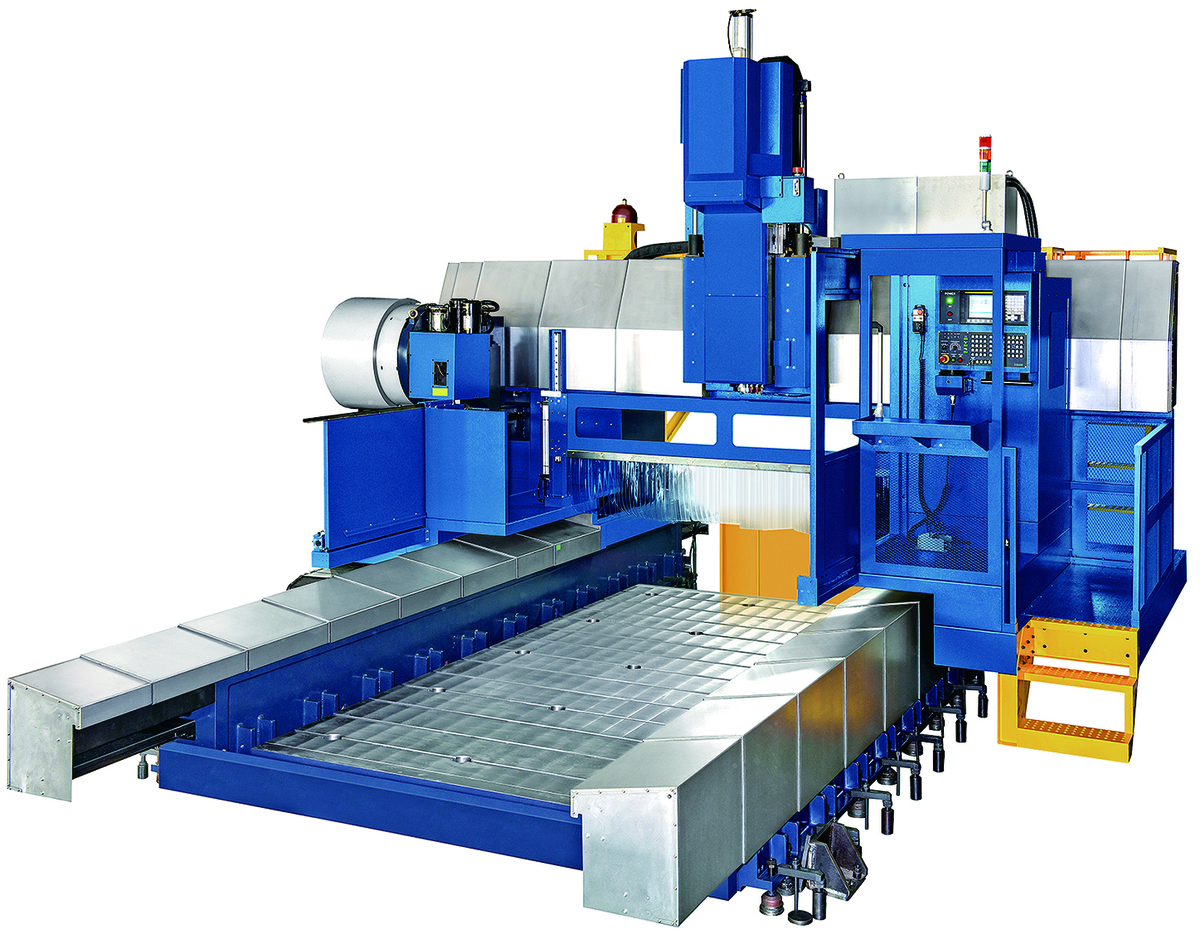

Series Image

HIGH SPEED MILLING, DRILLING, & TAPPING MACHINE

Request Quote on This Model

Select Machine Size/Model Here

Specifications

Model Unit HDT-18
Between Columns mm 1850
Travel       X-Travel m 2m~20m Every 1m add
Y-Travel mm 1800
Z-Travel mm 800 (1100)
W-Travel mm N/A
Table             Table wide mm 1200
            Table length m Table length = X Travel
Spindle nose to table mm 555~1355
Power-speed kW 18.5/22 – 6000 rpm
X axis rack-pinion - X >= 5m
ATC Capacity pcs 24 pcs
X/Y/Z Feed rate G00 m/min 15/15/12
  Machine size Length m 6.5m ~ 23.5m Every 1m add
Width m 5.9
Height m 4
Machine Weight (app.) ton 20+1.5/m
