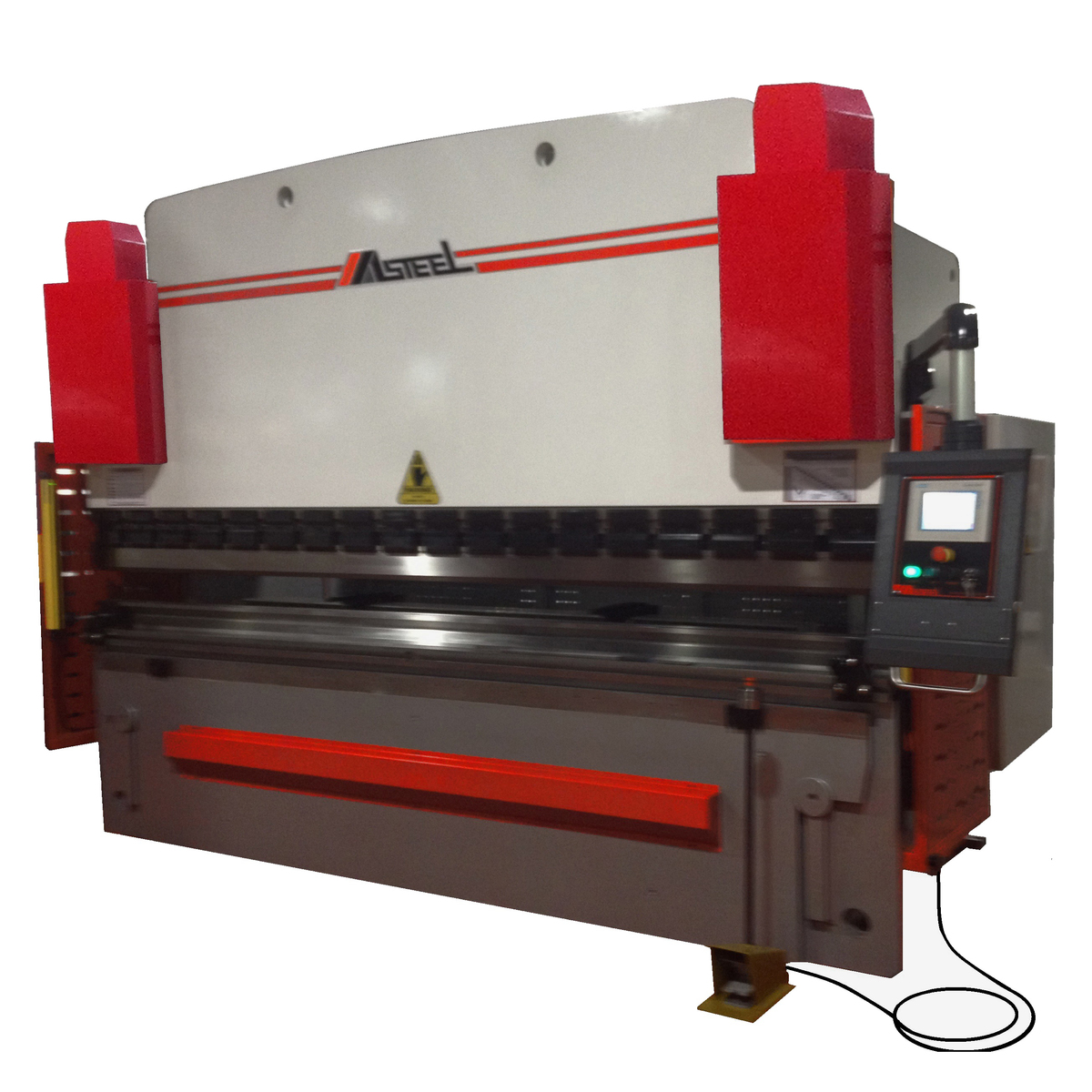

MBHSA-06070
STANDARD EQUIPMENT:
Two axis back gauge
One axis CNC control:X – axis
One axis manual adjustment: R – axis
Precision-made back gauge fingers
Fully equipped with Masteel tooling and clamping system
Floating-adjustable die clamping system for various die application
Hardened and precision ground tool steel gooseneck punch: 53-58RC;100Ton/M(33Ton/Ft) capacity
Hardened and precision ground Masteel 8 openings, 4-way die: HB190-260

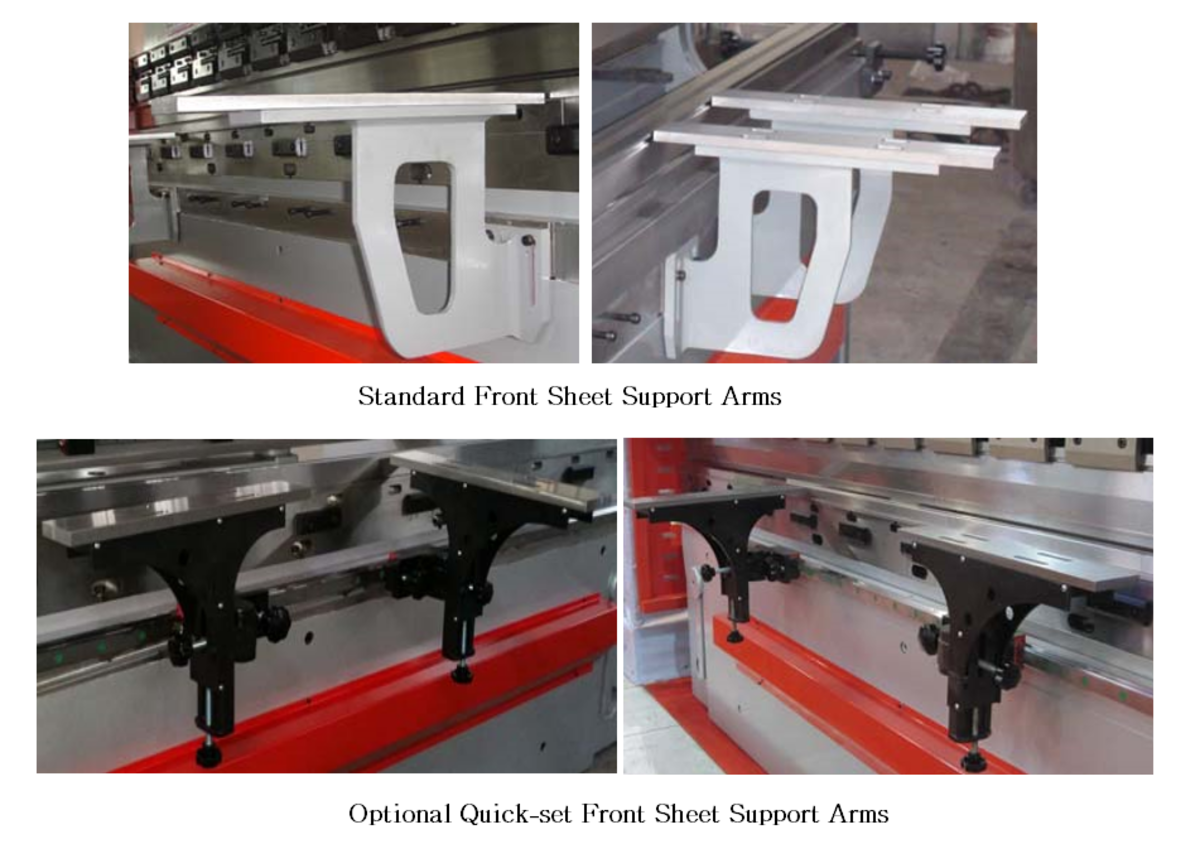

2 - Front support arms
OPTIONAL EQUIPMENT:

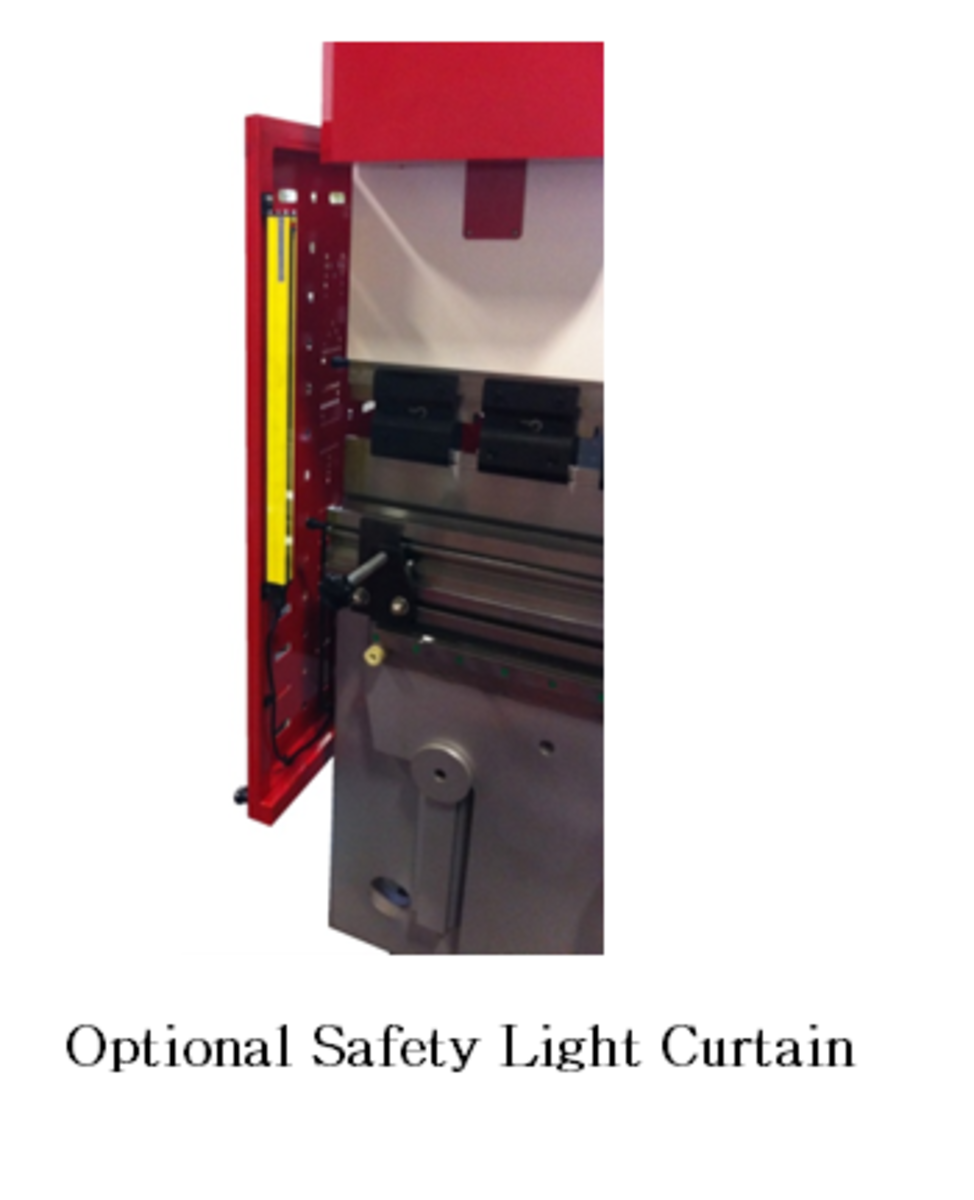

CNC R axis , Central lubrication, Safety light curtain

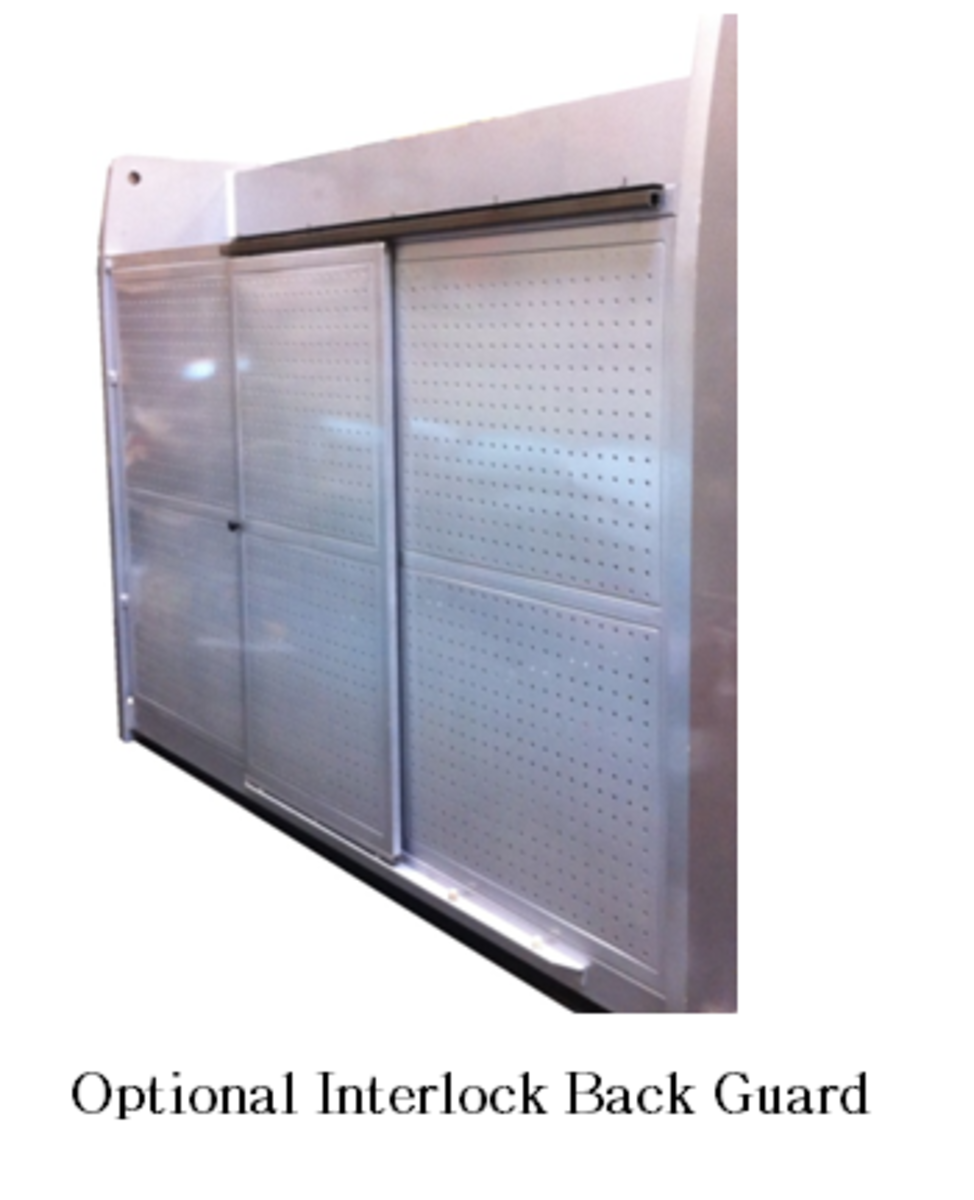

Interlock Back Guard, Quick- set front sheet support (2 SETS)
Special top and bottom tools,
440 or 600V Electrical, Laser protection system for die area
Hydraulic oil coolant, WILA Manuel Anti-Deflection system
Nema 12 Electrical Cabinet w/ Thermal Breaker Disconnect
WILA Hydraulic top and bottom tool holding system

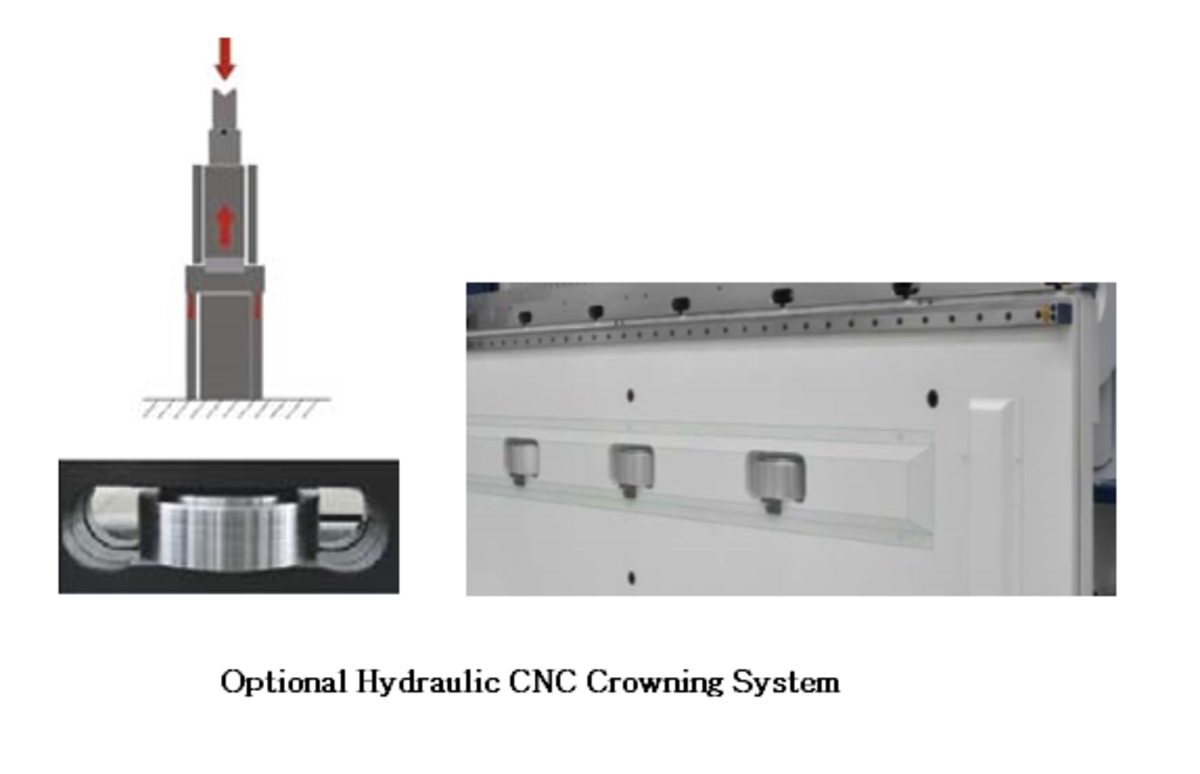

WILA Anti-Deflection System which operates automatically with DNC unit according to tonnage applied
Select Machine Size/Model Here
Specifications
| MODEL | MBHSA-06070 |
| Max. Capacity Tons | 70 |
| Max. Bending Length | 6' |
| Distance between Frames | 63" |
| Height of Bed | 34" |
| Bed Below Floor | __ |
| Depth of Throat | 12 – ¾" |
| Length of Ram Stroke | 8" |
| Fast Approach Speed IPM | 275 |
| Press Speed IPM | 25 |
| Fast Return Speed IPM | 245 |
| Max. Open Height | 17.5" |
| Main Motor | 10 |
| Back gauge Travel | 28" |
| Weight Lbs | 5,800 |
| Dimensions L x W x H | 78 x 40 x 68 |
| TOOLING INCLUDED IN PRICE | |

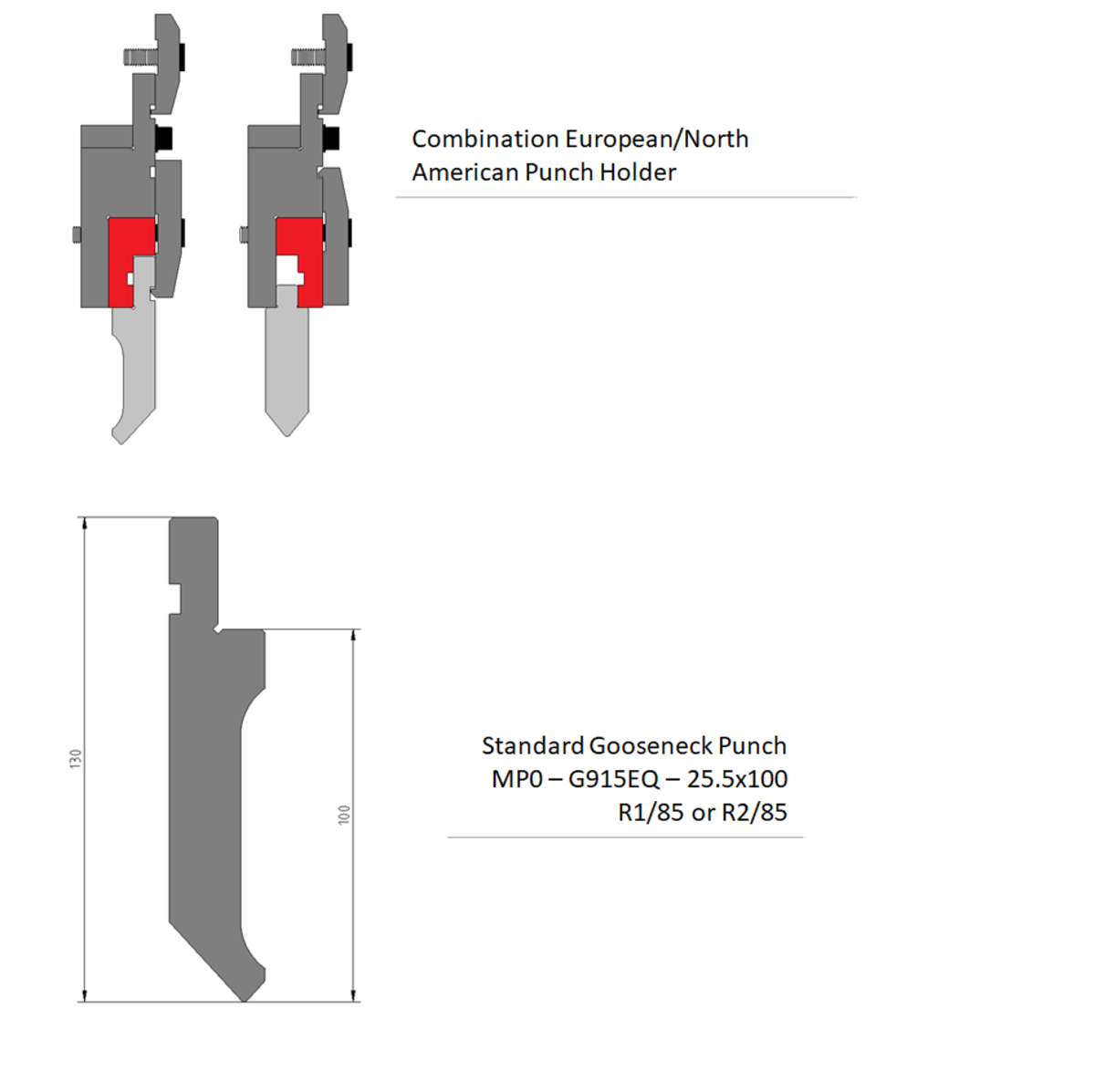

| PUNCH HOLDER | COMBINATION EUROPEAN/NORTH AMERICAN |
| PUNCH | GOOSENECK MP0 – G915EQ -25.5x100 R1/85 OR R2/85 |

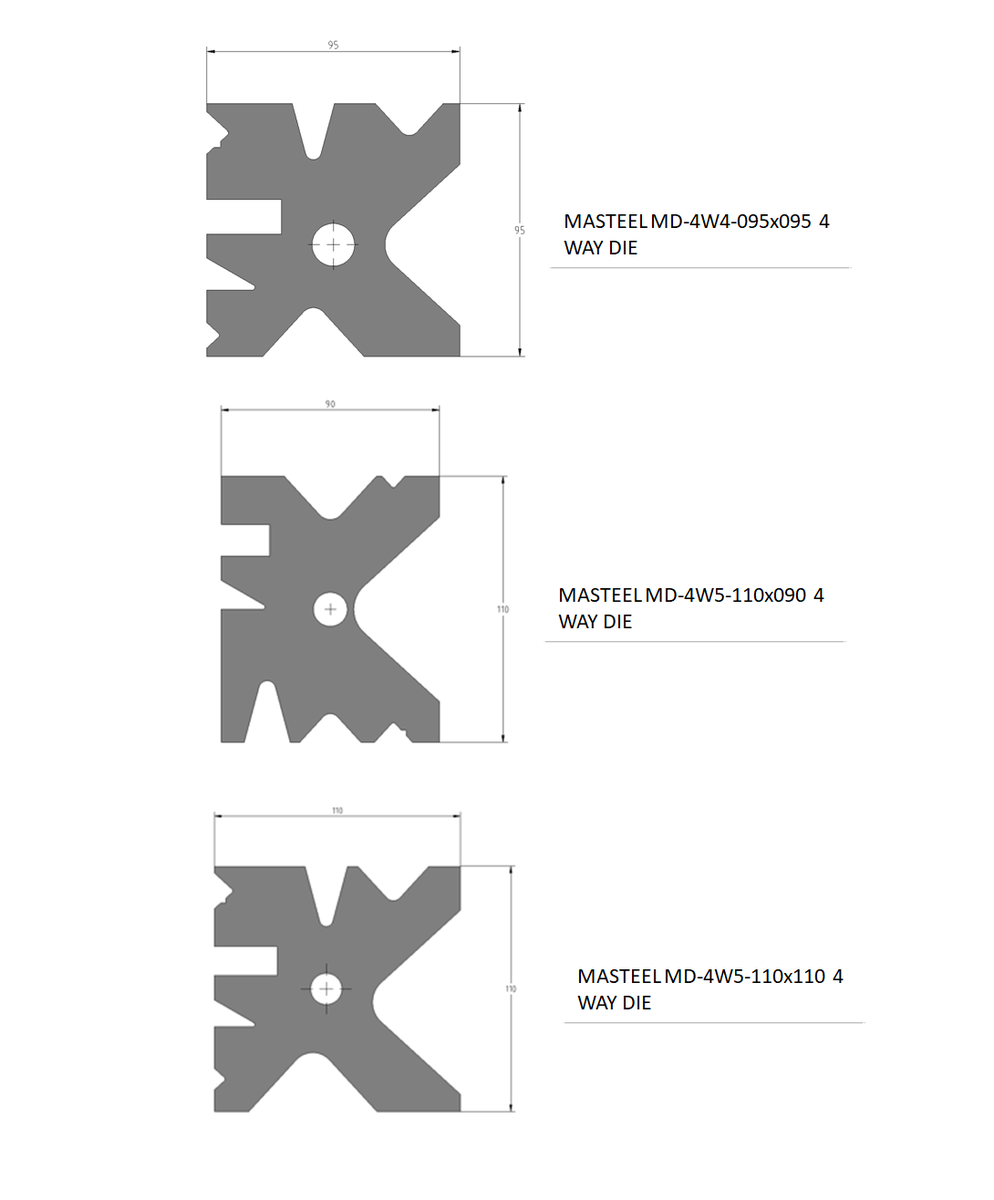

| DIE | MASTEEL MD-4W3-065x065 4 WAY DIE |
