Ken Linmax Gantry Type 5-Axis Machining Center

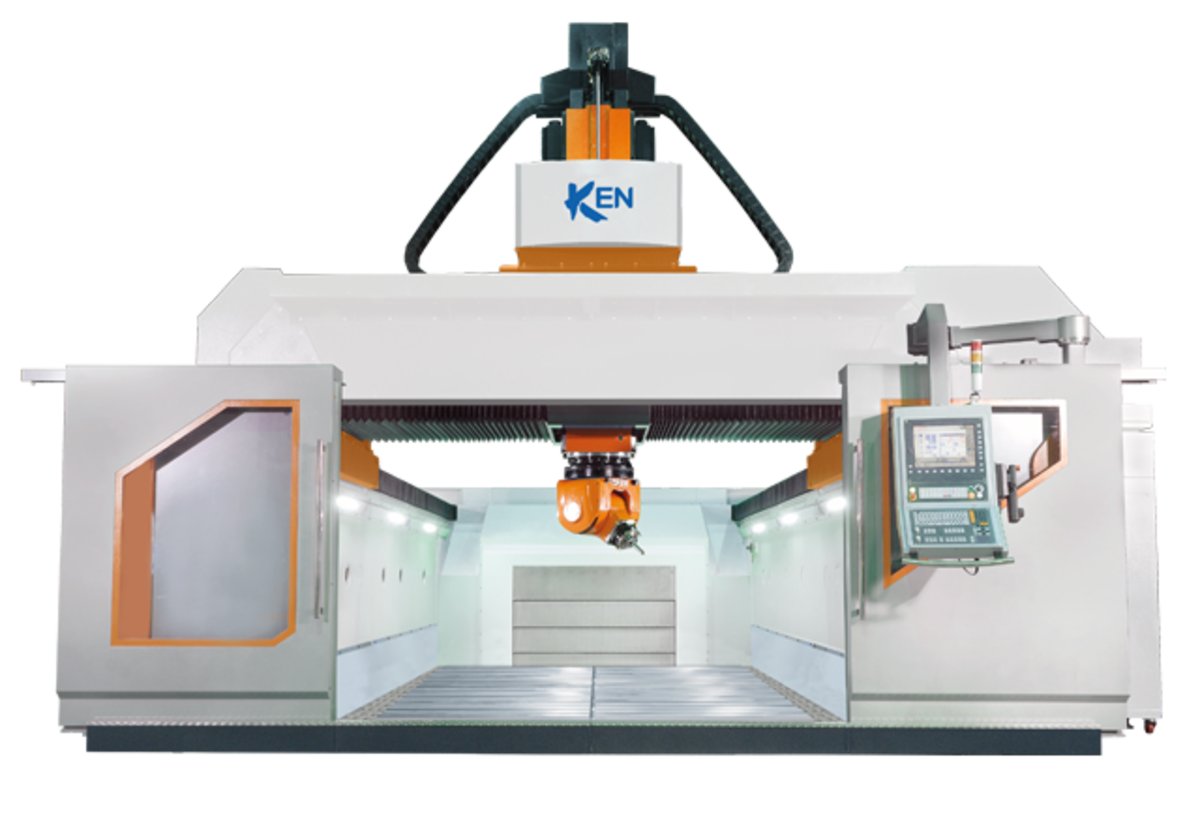

The Ken Linmax gantry type 5-axis machining centre incorporates a highly specialized design for high speed / high precision 5-axis machining of molds and aircraft components. The design encompasses the following features: - a torque motor driven 2-axis milling head - back lash free linear motor drives on the X and Y axes with minimal wear ‘n tear - dual ball screw drives on the Z-axis for maximum torque - all axial movements on top of the machine with the workpiece on a stationary fixed table for maximum work piece load capacity and minimum floor space requirements - high rigidity X-axis box-in-box column construction - double high rigidity Y-axis crossbeam construction - double high rigidity Z-axis spindle head construction - a choice of 2-xis milling heads and spindles to best-fit specific machining applications
Specifications
| Specifications /Mold | Unit | Linmax B-22 | Linmax B-25 | Linmax B-30 |
| X-axis Travel | mm | 3200/4000(or more) | 4000/5000(or more) | 5000/6000(or more) |
| Y-axis Travel | mm | 2200 | 2500 | 3000 |
| Z-axis Travel | mm | 1250 | 1250 | 1250 |
| Table long | mm | 3200/4000(or more) | 4000/5000(or more) | 5000/6000(or more) |
| Table width | mm | 2000 | 2200 | 2700 |
| T-slot size (Width) | mm | 28 | ||
| Table load | Kg/㎡ | 5000 | ||
| Distance between spindle nose to table surface | mm | 200-1450 | 200-1450 | 200-1450 |
| Distance between column | mm | 3259 | 3590 | 4090 |
| Feedrate | ||||
| X/Y/Z-axis rapid feedrate | m/min | 50 | 50 | 50 |
| X/Y/Z-axis acceleration | m/sec² | 5 | 5 | 4 |
TCH-L13(EVO) Milling Head (B&C Axis)
TCH-19(A63) Milling Head (B&C Axis)
TCH-19(A100) Milling Head (B&C Axis)
TCH-20(A63) Milling Head (B&C Axis)
TCH-20(A100) Milling Head (B&C Axis)
TCH-30F Milling Head (B&C Axis)
HSK-A100 Vertical Spindle
