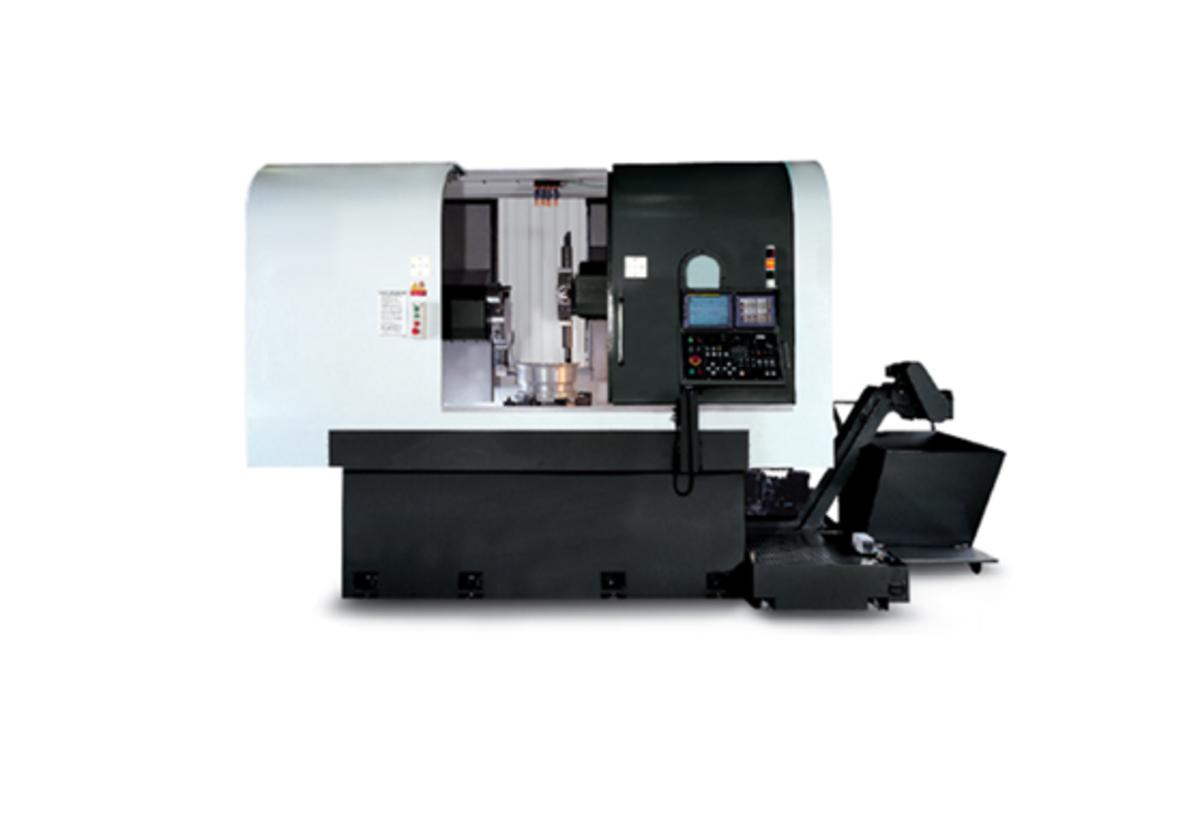

VLT-130

Series Image

Twin Turret Vertical Lathes

• Machine bed is made of meehanite cast iron for good rigidity.
• Chuck headstock with powerful coolant system for efficient chip removal.
• Easy loading/unloading, suitable for big, heavy, irregular shape workpieces.
• Maintains the best circularity without inertial ellipse after machining.
• Solid, heavy duty table face permits close-in fixturing for high-rigidity, vibration free machining.
• Smallest footprint in its class, offering the best work flow available.

Request Quote on This Model

Select Machine Size/Model Here

Specifications

Model Unit VLT-130
Max. Swing Dia. mm Ø600
Max. Turning Dia. mm Ø450
Max. Turning Height mm 300
Spindle Motor kw 37/45
Machine (LxW) mm 4120x5600
Machine (H) mm 5320
Machine Weight kg 9500
Request Quote on This Model
