VL-1000ATC+C

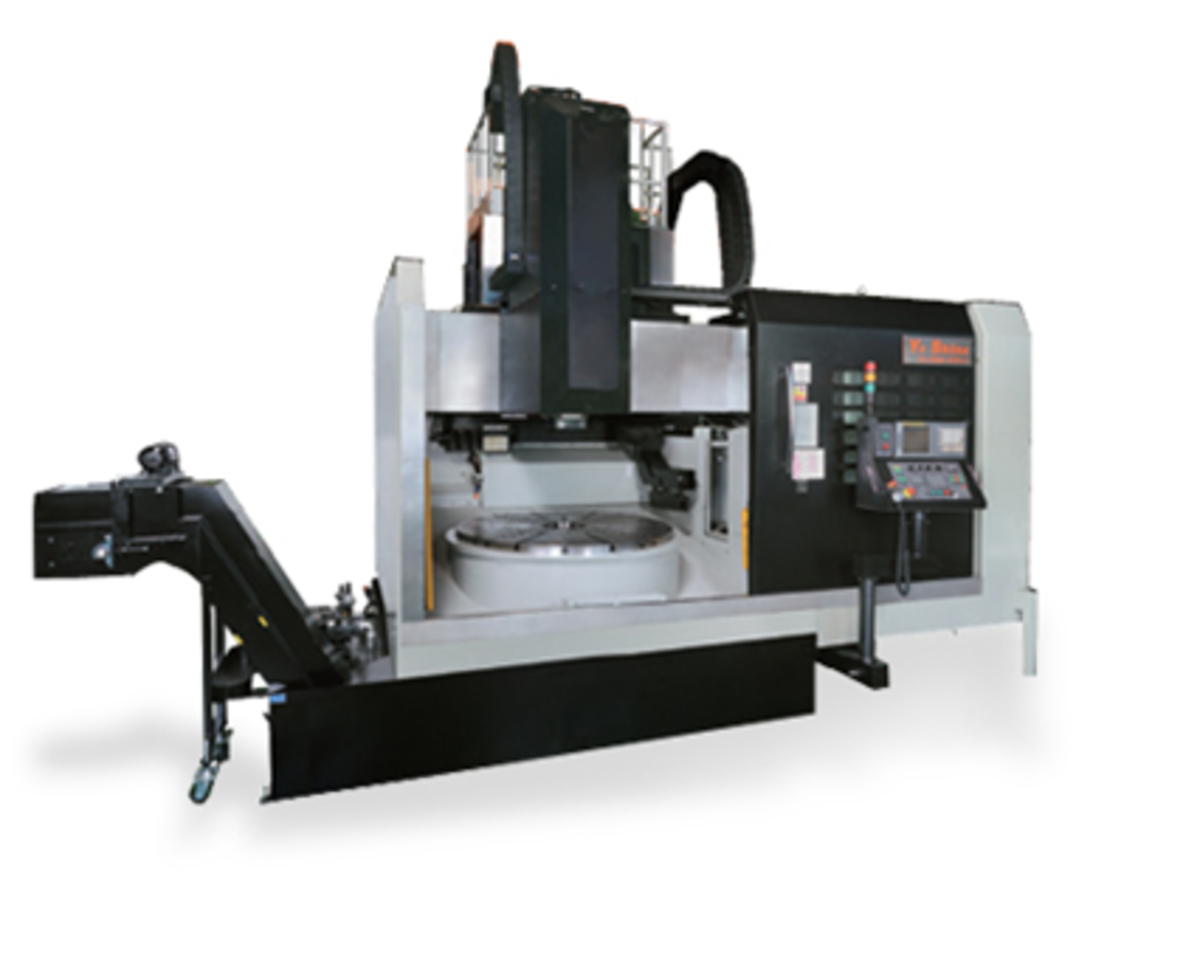

Series Image

Heavy Duty Vertical Lathes

• Machine bed is made of meehanite cast iron for good rigidity.
• Chuck headstock with powerful coolant system for efficient chip removal.
• Easy loading/unloading, suitable for big, heavy, irregular shape workpieces.
• Maintains the best circularity without inertial ellipse after machining.
• Solid, heavy duty table face permits close-in fixturing for high-rigidity, vibration free machining.
• Smallest footprint in its class, offering the best work flow available.

Request Quote on This Model

Select Machine Size/Model Here

Specifications

Model Unit VL-1000ATC+C
Max. Swing Diameter mm Ø1350
Max. Turning Diameter mm Ø1150
Max. Turning Height mm 1070
#1 Spindle Motor (30min/Cont) kw 37/45
#2 Spindle Motor (30min/Cont) kw 7.5/11 (11/15)
Machine (L1) mm 4600
Machine (W1) mm 5500
Machine (H1) mm 5330
Machine Weight kg 25000
Request Quote on This Model
