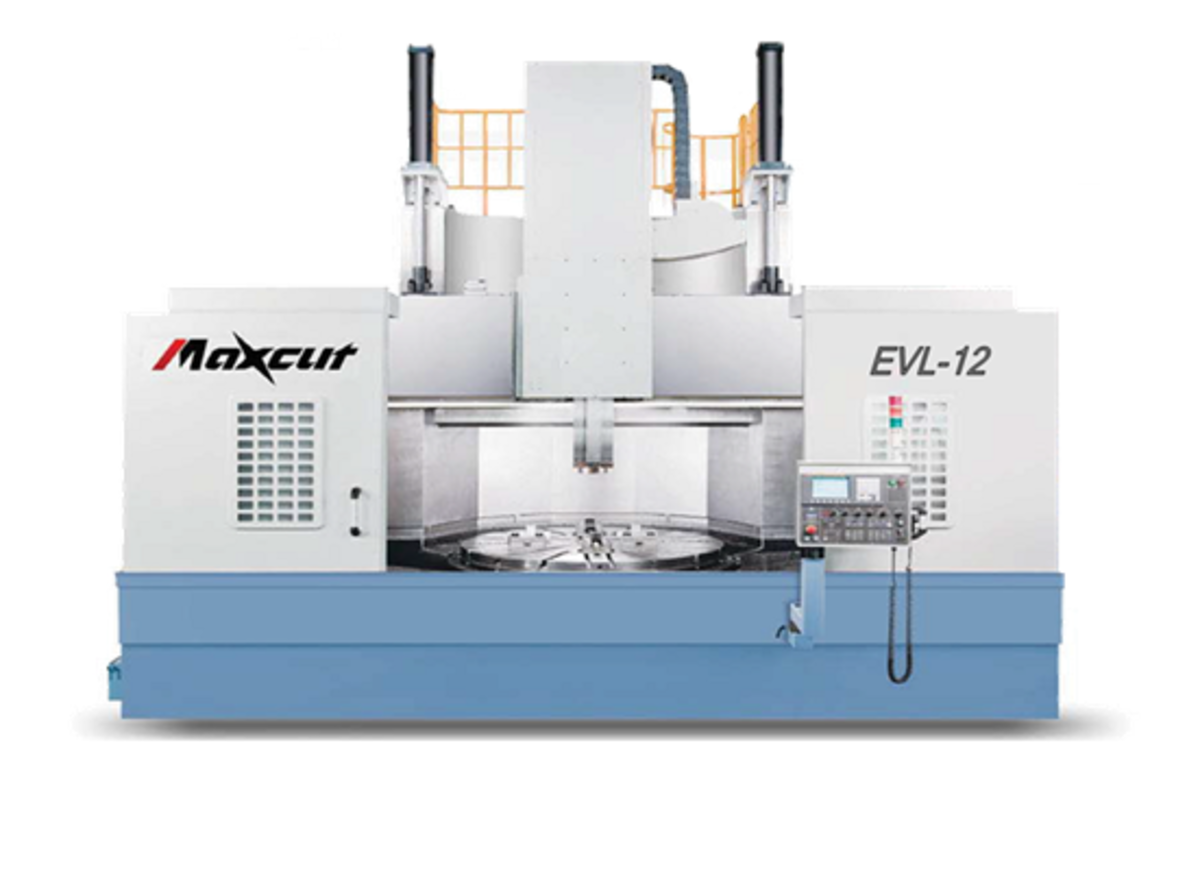

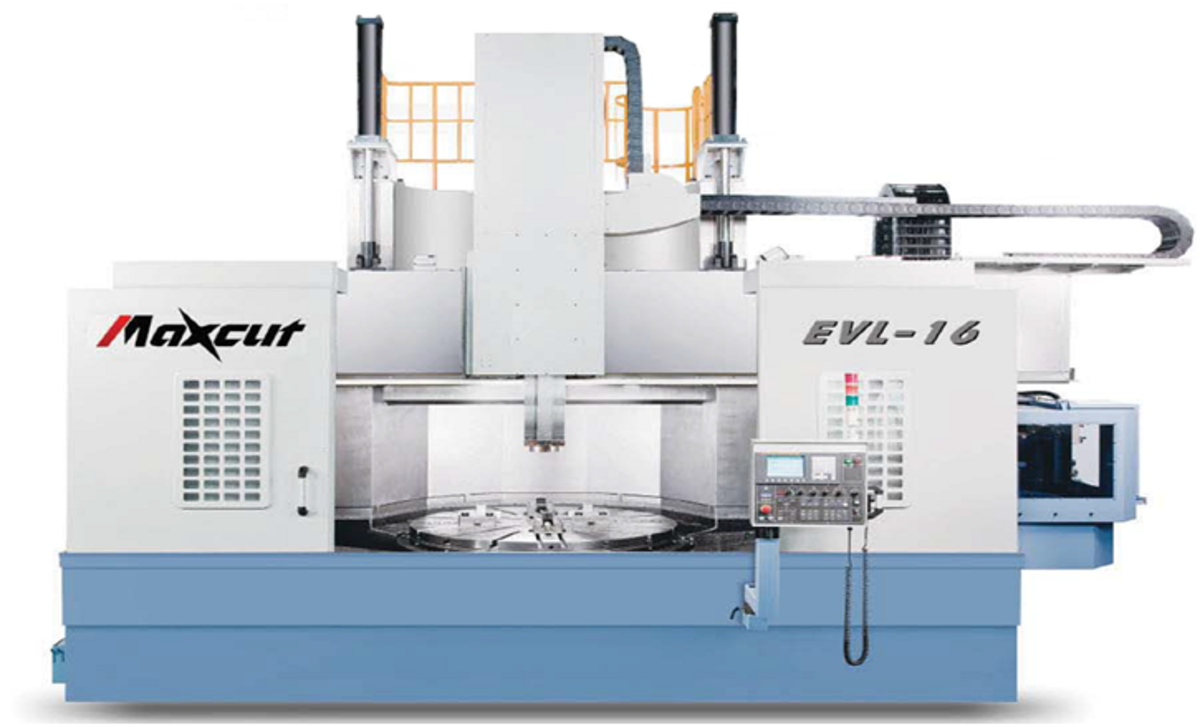

EVL-12

Series Image Series Image



FEATURES
Fully enclosed splash guard
Hydraulic unit
Automatic lubrication system
Work light
Gear/ bearing lubrication and oil cooler control
Chip conveyor
Moveable vertical cross rail and mechanism
Coolant system with tank
Three color alarm light
Workpiece counter (FANUC standard)
Coolant through tool holder
Heat exchanger for electrical cabinet
Service tool box & tool kits
Chip trolley
Coolant gun & Air blast
20 bar CTS for milling
Table manual 4-jaw chuck (independent 4-jaw) with magnetic rotary encoder
Leveling adjustable block & seat pads (without J type bolts)
Tool holder(one piece type)
a. O.D/facing tool holder(40mm)
b. Boring tool holder(Ø80mm)
c. Long type Boring toolholder(Ø80mm)
d. Dummy cover

Request Quote on This Model

Select Machine Size/Model Here

SPECIFICATIONS

MODEL   EVL-12
CAPACITY UNIT
Max. swing diameter Mm(in) 1600(62.99)
Max. turning diameter Mm(in) 1600(62.99)
Distance from bite holder end to table surface Mm(in) 0-1.205 (0-47.44)
Max. turning height Mm(in) 1200(47.24)
Max. workpiece weight Kg 8000
TABLE
Table diameter (manual chuck) Mm(in) 1250(49.21)
Range of table speeds (low) Rpm 34-103
Range of table speeds (high) Rpm 104-312
Gear speed Steps 2
Max. table torque Nm 12400
ATC
ATC (automatic tool changer) Set 1
Number of tool stations - 12 (random)
Tool type - T-Puller
Tool size Mm(in) 25/32/40(1/1.25/1.5)
Cross section of ram Mm(in) 200x200(7.87x7.87)
TRAVEL
Horizontal travel (X-Axis) Mm(in) -820+1000(-32.8+39.37)
Vertical travel (Z-Axis) Mm(in) 900(35.43)
Cross rail travel Mm(in) 500(19.68), 2steps (3positions)
FEED RATES
Rapid rate (X) m/min 10
Rapid rate (Z) m/min 10
Cutting feed rate Mm/rev 0.001-50
Feed override % 0-150
MOTOR
Table main motor Kw(hp) a40i, 37/45 (49.6/60.3)
Feed servo motor (X-Axis) Kw(hp) a30i, 7  (9.4)
Feed servo motor (Z-Axis) Kw(hp) a30Bi, 7 (9.4)
Milling motor Kw(hp) --
Cf axis motor Kw(hp) --
MACHINE
Floor space (LxW) Mm 7200 x 5000
Machine Max. height (H) Mm 5450
Machine  weight kg 23500
