25 CSL

Series Image Series Image Series Image

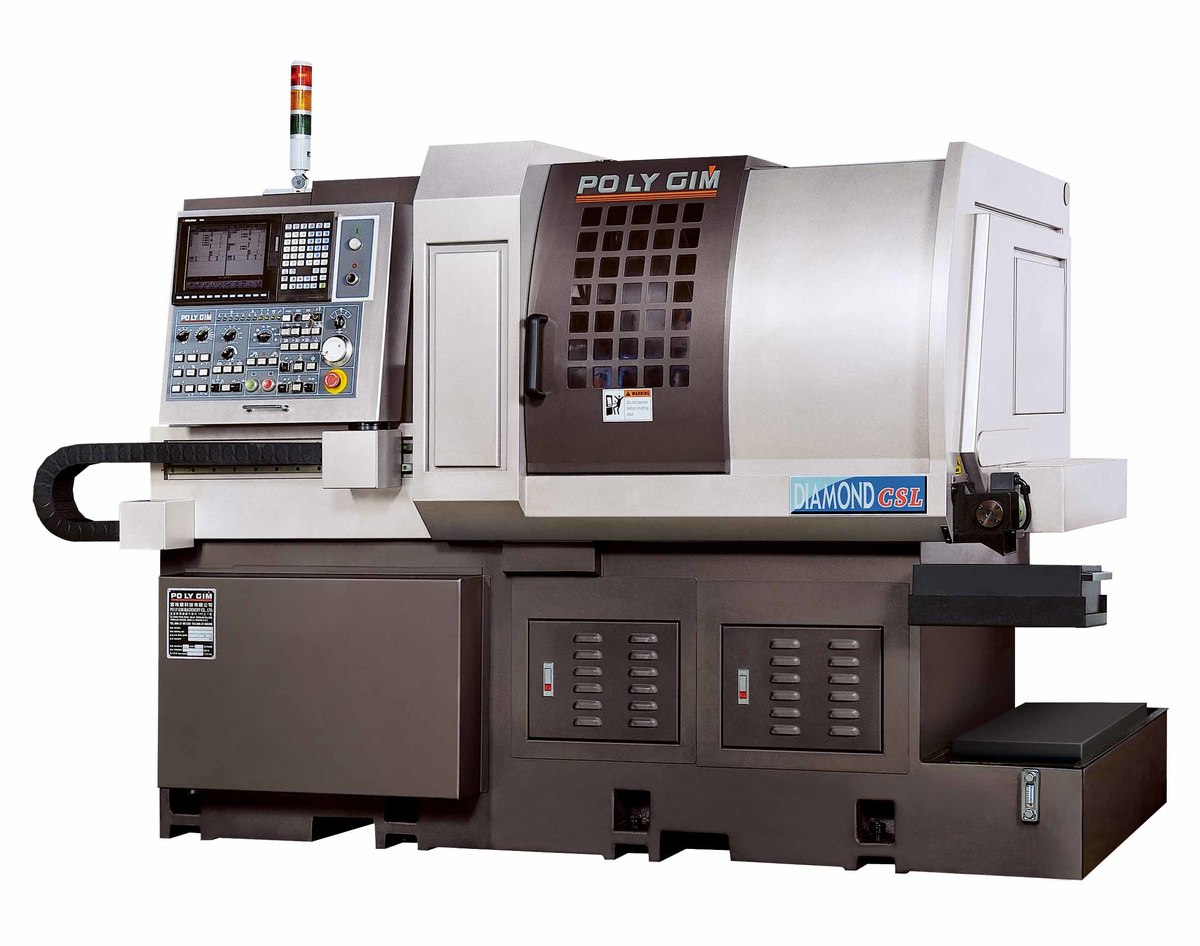

Swiss Type CNC Lathe

www.polygim.com.tw

Request Quote on This Model

Select Machine Size/Model Here

Specifications

Items 25 CSL
Working Range Max. Machining Dia. 26 mm
Max. Machining Length Per Chucking 268 mm
Max. Drilling Dia. 20 mm
Max.Tapping Dia. M16
Tooling System O.D. Tooling 6
O.D. Tool Dimension 16 x 16 x 120
I.D. Tooling 2
I.D. Tool Dimension 13 mm (ER20)
Cross Side Tooling 6
Cross Side Tool Dimension 13 mm (ER20)
Cross Spindle Speed 200~6000 r.p.m.
Bevel Drill / Mill Tool Holes and Speed (Optional) 3
100~6000 r.p.m.
Front Drilling Holes (Optional) 2
Back Drilling Holes (Optional) 3
Back Tool Holes 4
Spindle Spindle Hole Dia. 26 mm
Spindle Speed 200~8000 r.p.m.
Back Spindle Back Spindle Hole Dia. 25 mm
Back Spindle Speed 200~6000 r.p.m.
Max. Length for Front Ejection 70 mm
Max. Part Projection Length 120 mm
Max. Back Drilling Dia. 16 mm
Max. Back Tapping Dia. M12
Rapid Speed X1, Z1 Axis 18 m/min
X2, Z2 Axis 18 m/min
Y1 Axis 18 m/min
Motors Main Spindle Motor 5.5 kw
Back Spindle Motor 2.2 kw (7.0 kw with M70)
X1 / X2 Axis Motor 1 kw
Z1,Y1,Z2 Axis Motor 0.5 kw
B Axis Motor 0.75 kw (with M65) / 1 kw (with M70/M730)
Y2 Axis Motor (Optional) -
Cross Driven Spindle Motor 1.5 kw
Bevel Driven Spindle Motor 0.4 kw
Back Off-center Driven Spindle Motor 0.75 kw (1 kw option Y2 axis)
Coolant Pump 0.75 kw x 2
Lubrication 4 w x 2
Machine Dimensions Center Height 960 mm
Weight 3988 kg
Machine Dimension 2480 x 1280 x 1780
Air Pressure Air Pressure 5 kg/cm
Air Supply 10 L/min

Standard Accessories:

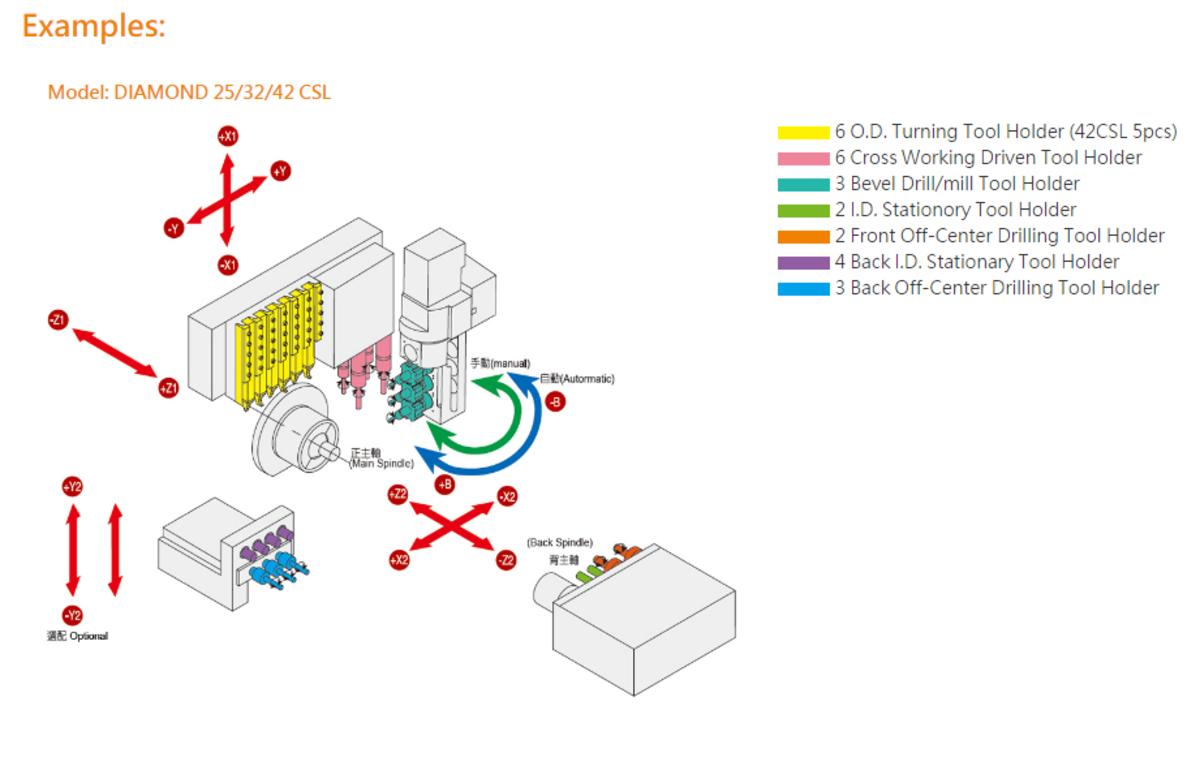

Standard Accessories:    DIAMOND 25/32/42 CSL
Main spindle 5° orientation
Back spindle 5° orientation
Work light
Coolant system
Part off detective sensor
Live bushing
Part catcher
6 pcs O.D tuming tool holder (42CSL 5pcs)
2 pcs I.D stationary tool holder
6 pcs cross working driven tool holder
4 pcs back I.D stationary tool holder

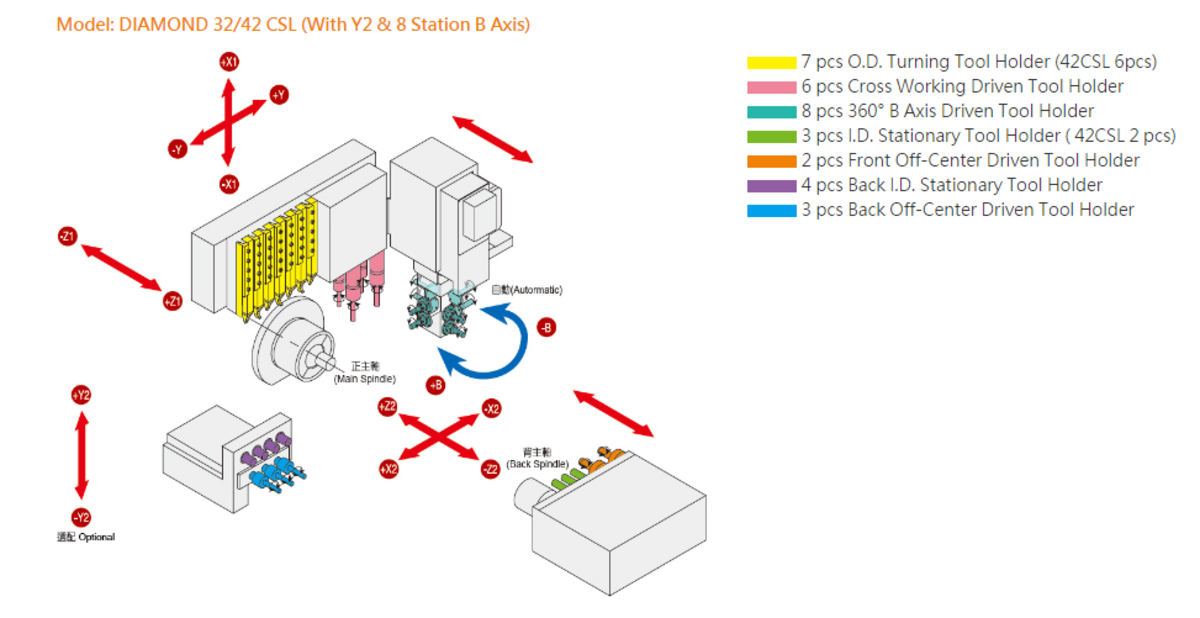

Standard Accessories: DIAMOND 32/42 CSL (With Y2 & 8 Station B Axis)
Main spindle C axis orientation
Back spindle 5° orientation
Work light
Coolant system
Part off detective sensor
Live bushing
Part catcher
7 pcs O.D tuming tool holder (42CSL 6pcs)
3 pcs I.D stationary tool holder (42CSL 2pcs)
6 pcs cross working driven tool holder
4 pcs back I.D stationary tool holder
