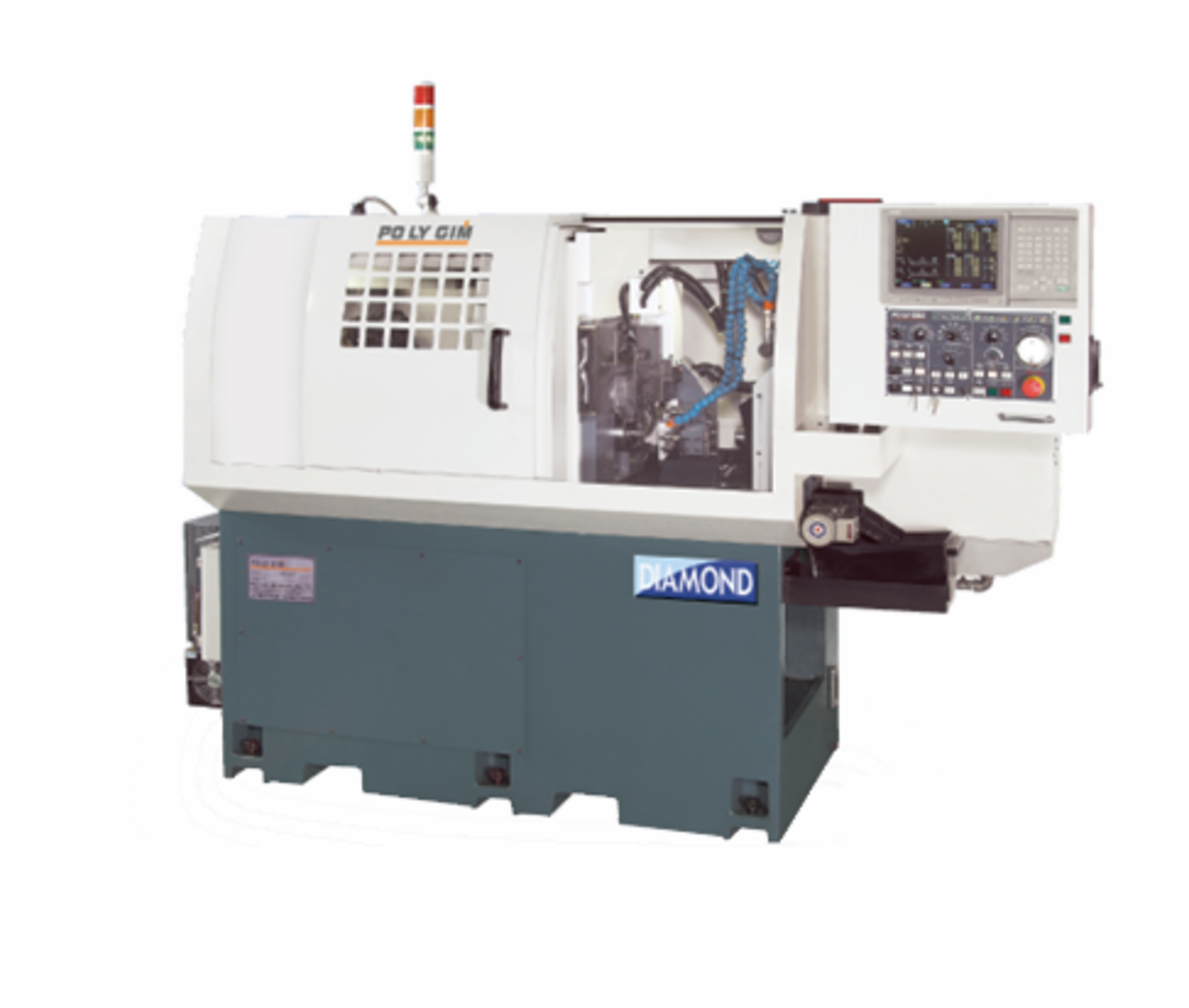

DIAMOND 32

Series Image Series Image Series Image Series Image

Swiss Type CNC Lathe

www.polygim.com.tw

Request Quote on This Model

Select Machine Size/Model Here

Specifications

Items DIAMOND 32
Working Range Max. Machining Dia. 33 mm
Max. Machining Length Per Chucking 250 mm
Max. Drilling Dia. 26 mm
Max. Tapping Dia. M12

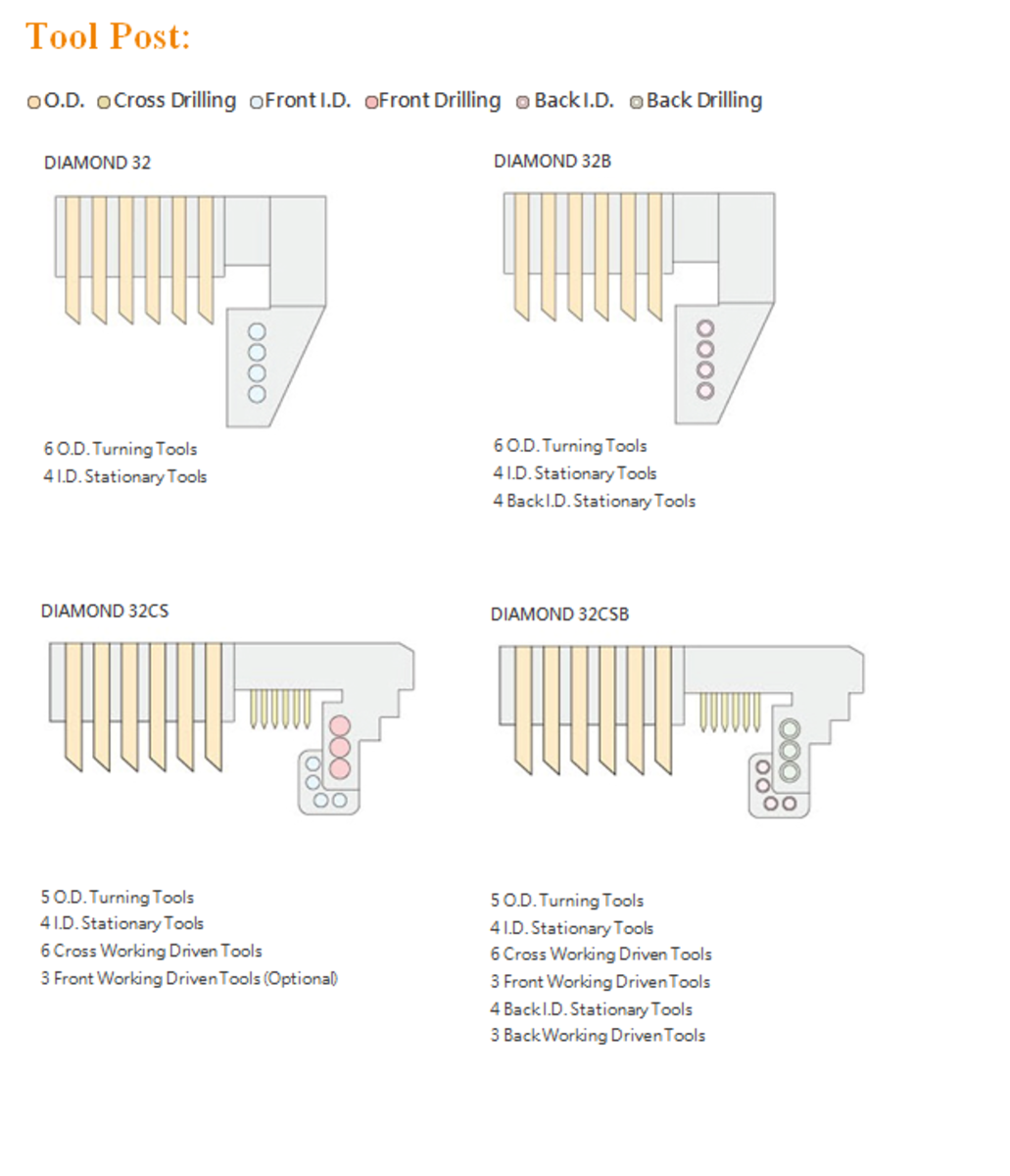

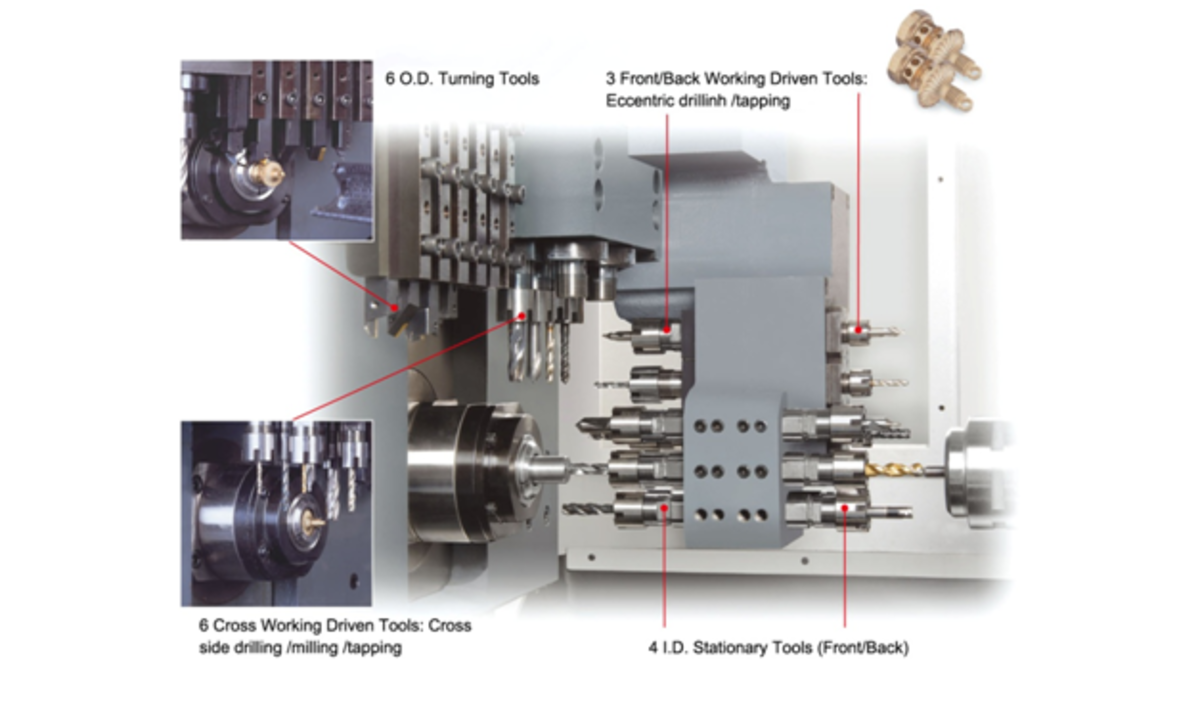

O.D. Tooling Number of Tools 6
Dimension 16 ×16 ×120
I.D. Tooling Number of Tools 4
Dimension 13 mm (ER20)
Cross Working Driven Tooling Number of Tools -
Dimension -
Cross Spindle Speed -
Front Working Driven Tooling Number of Tools -
Dimension -
Spindle Speed -
Back I.D. Tooling Number of Tools -
Dimension -
Back Working Driven Tooling Number of Tools -
Dimension -
Spindle Speed -
Spindle Bore of Spindle 36 mm
Spindle Speed 200- 8000 r.p.m.
Back Spindle Back Spindle Hole Dia. -
Back Spindle Speed -
Max. Length for Front Ejection -
Rapid Speed Rapid Speed 18 M
Motors Spindle Motor 5.5 kw
Back Spindle Motor -

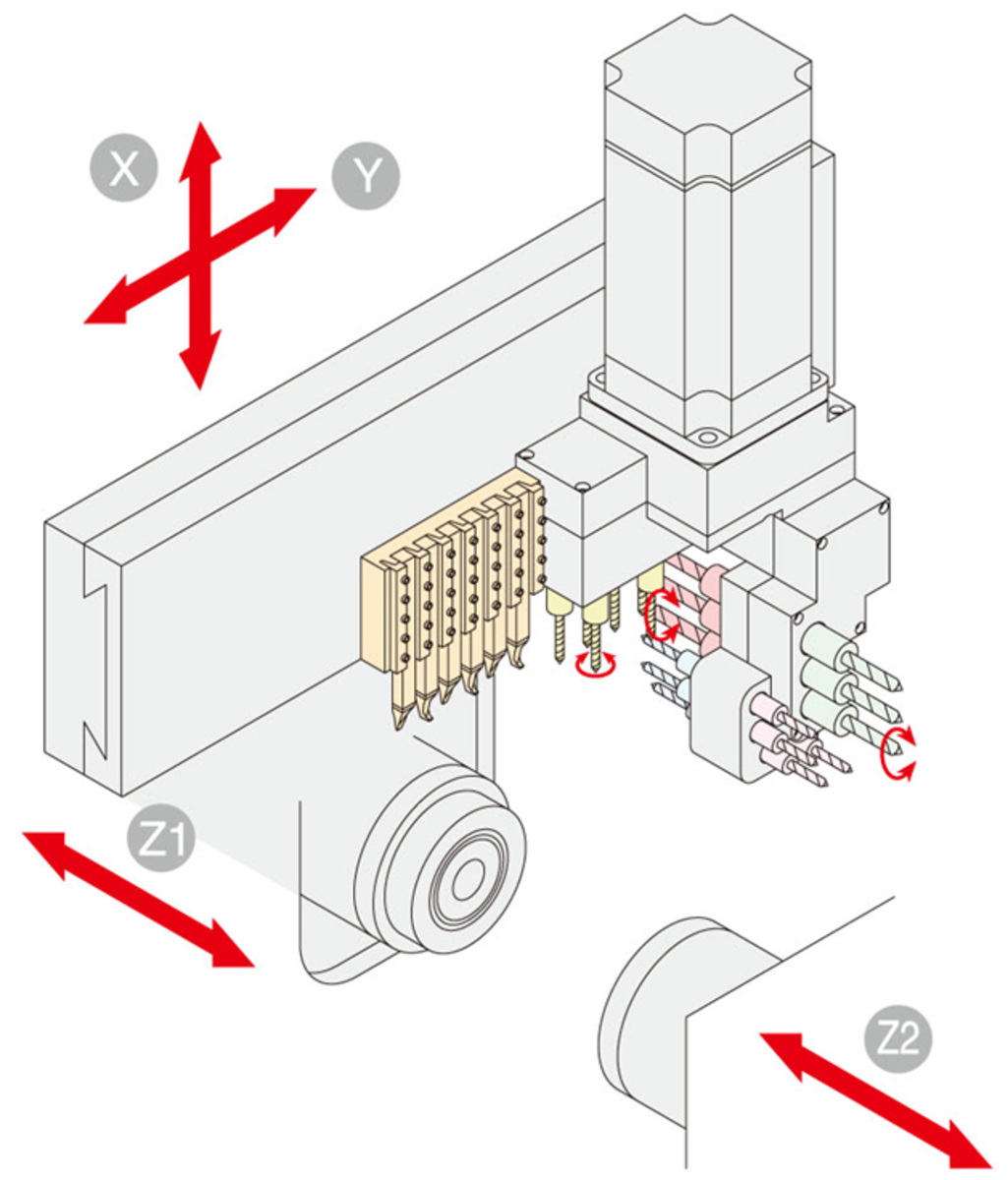

X1, Y1 ,Z1  Axis Motor 0.5 kw
Z2 Axis Motor -
Coolant Pump 0.55 kw
Lubrication 4 w
Cross Spindle -
Machine Dimensions Center Height 960 mm
Weight 2270 kg
Machine Dimension 2200 × 1140 × 1568 mm
Air Pressure Air Pressure 5 kg/cm
Air Supply 10 L/min
