DIAMOND 20B II

Series Image Series Image Series Image Series Image Series Image

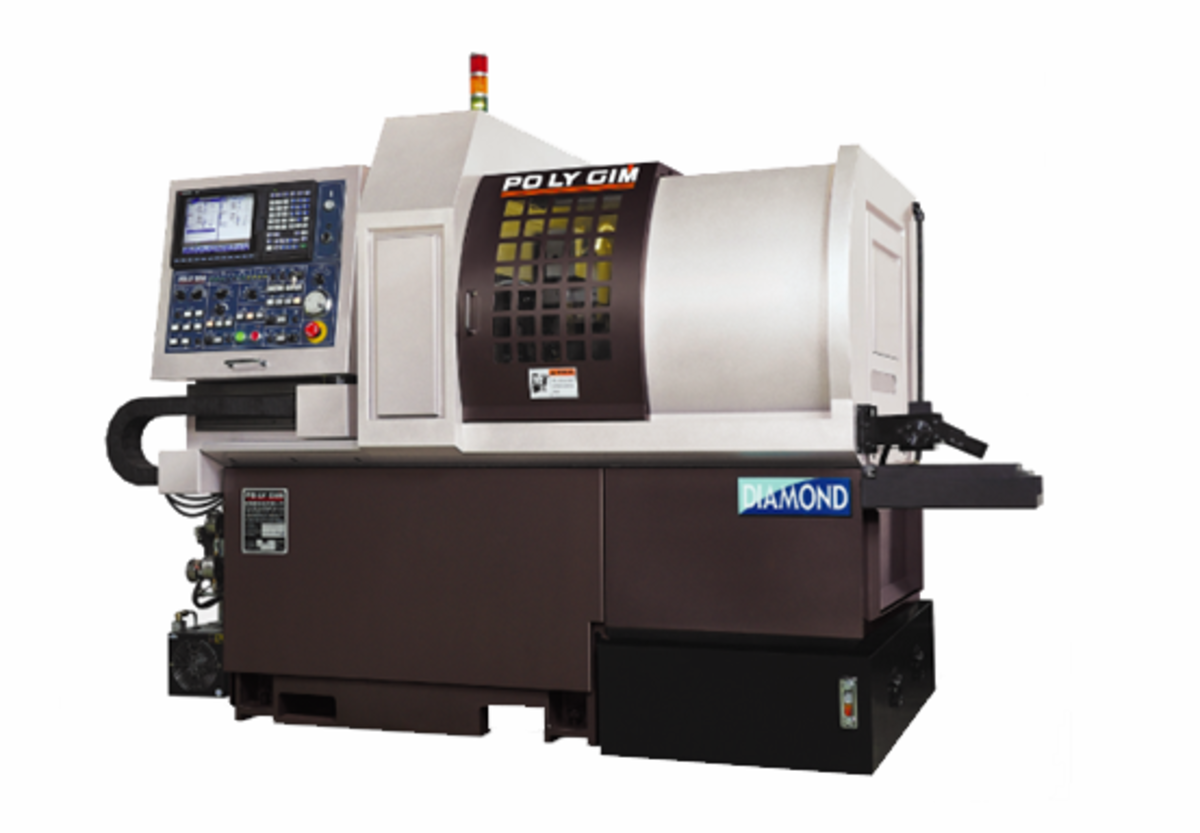

Swiss Type CNC Lathe

www.polygim.com.tw

Request Quote on This Model

Select Machine Size/Model Here

Specifications

Items DIAMOND 20B II
Working Range Max. Machining Dia. 20 mm
Max. Machining Length Per Chucking 250 mm
Max. Drilling Dia. (Main / Sub Spindle) 12 mm
Max.Tapping Dia. (Main / Sub Spindle) M10

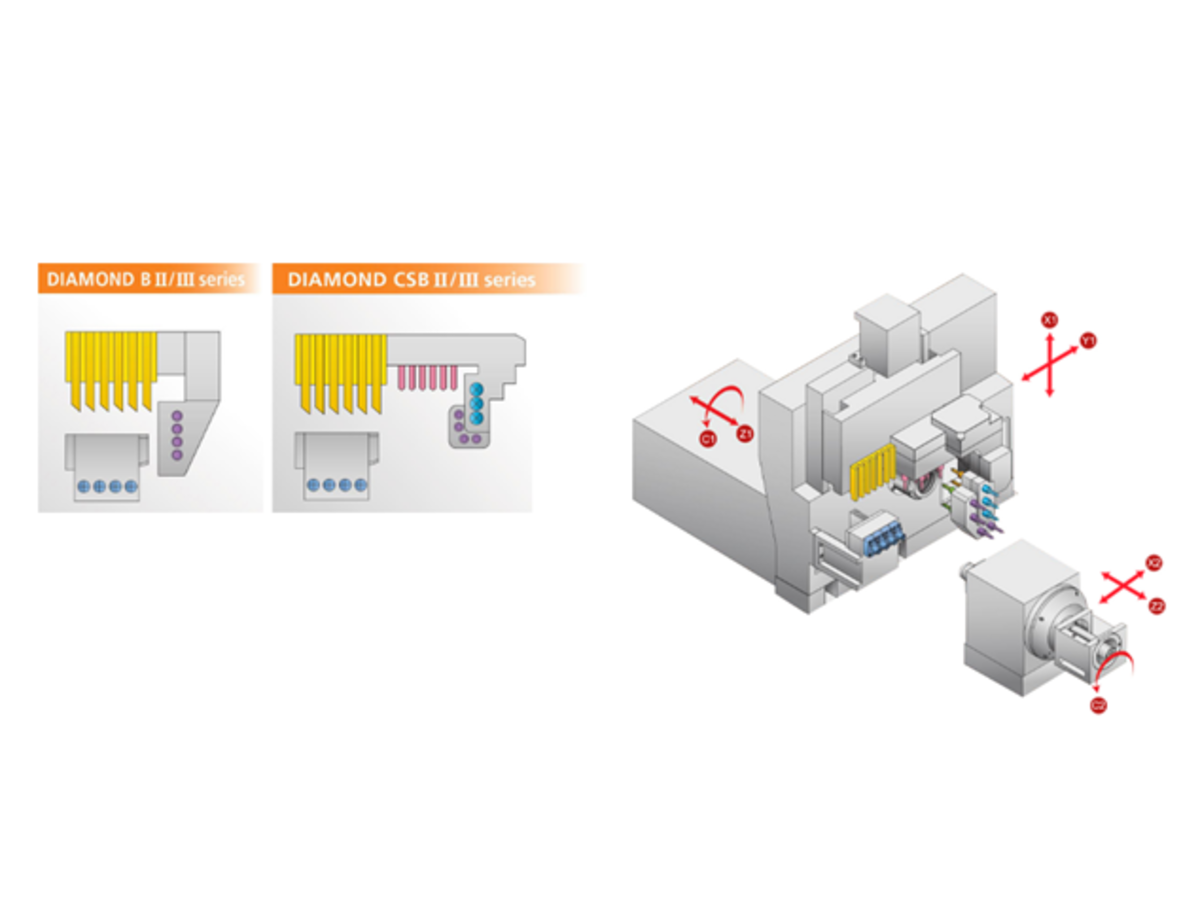

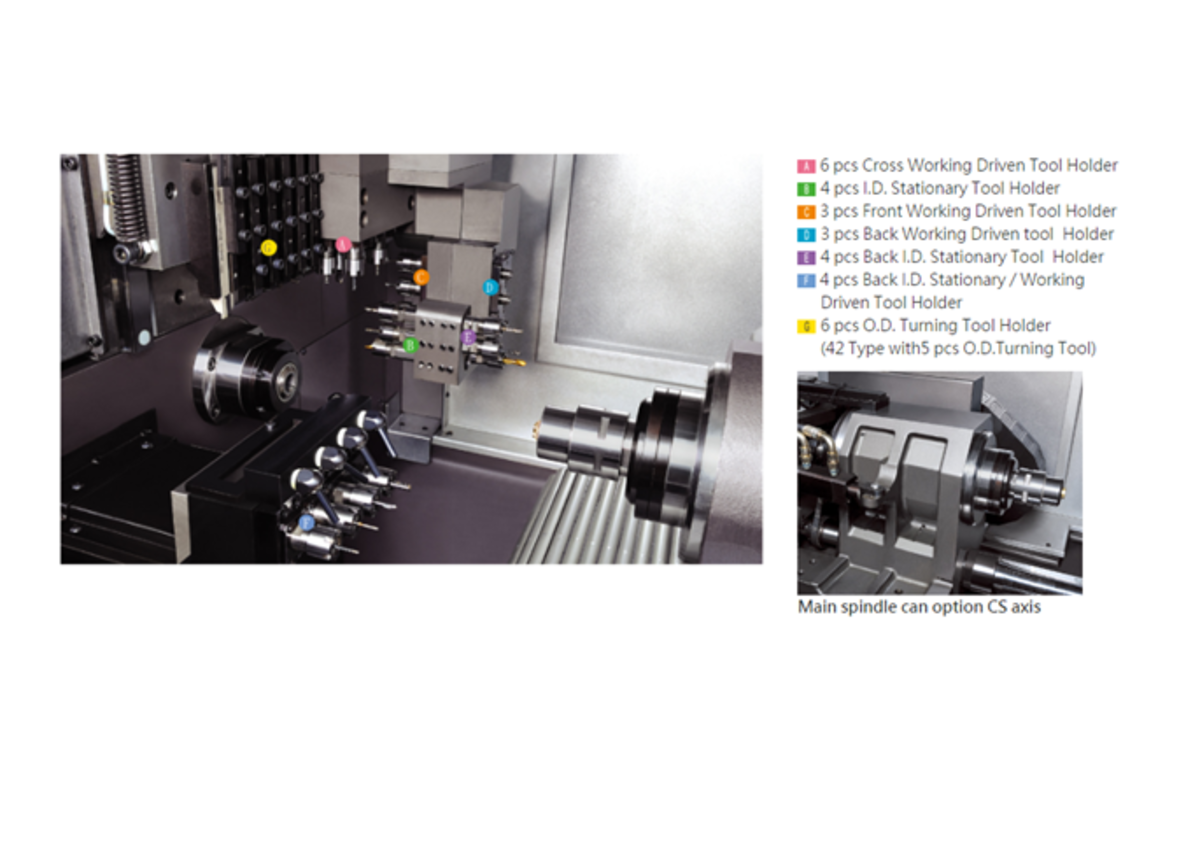

O.D.Tooling Number of Tools 6
Dimension 12 × 12 × 120
I.D. Tooling Number of Tools 4
Dimension 10 mm (ER16)
Cross Working Driven Tooling Number of Tools -
Dimension -
Speed -
Front Working Driven Tooling Number of Tools -
Dimension -
Speed -
Back I.D. Tooling Number of Tools 4+4
Dimension 10 mm (ER16)
Back Working Driven Tooling Number of Tools -
Dimension -
Number of Tools -
Dimension -
Speed -
Spindle Spindle Hole Dia. 22 mm
Spindle Speed 200- 8000 r.p.m.
Main Spindle Indexing Angle C axis

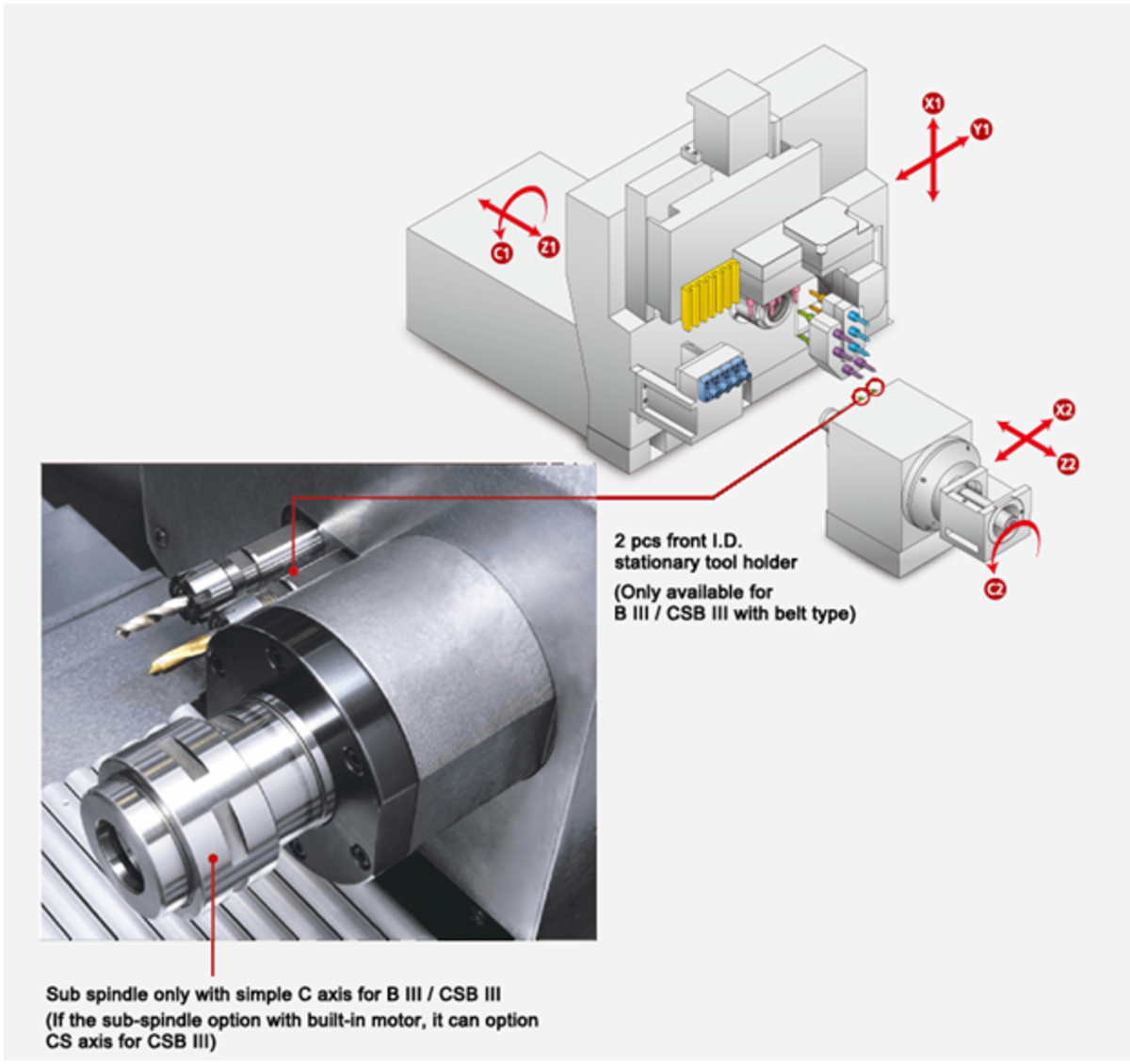

Back Spindle Spindle Hole Dia. 22 mm
Spindle Speed 200-8000 r.p.m.

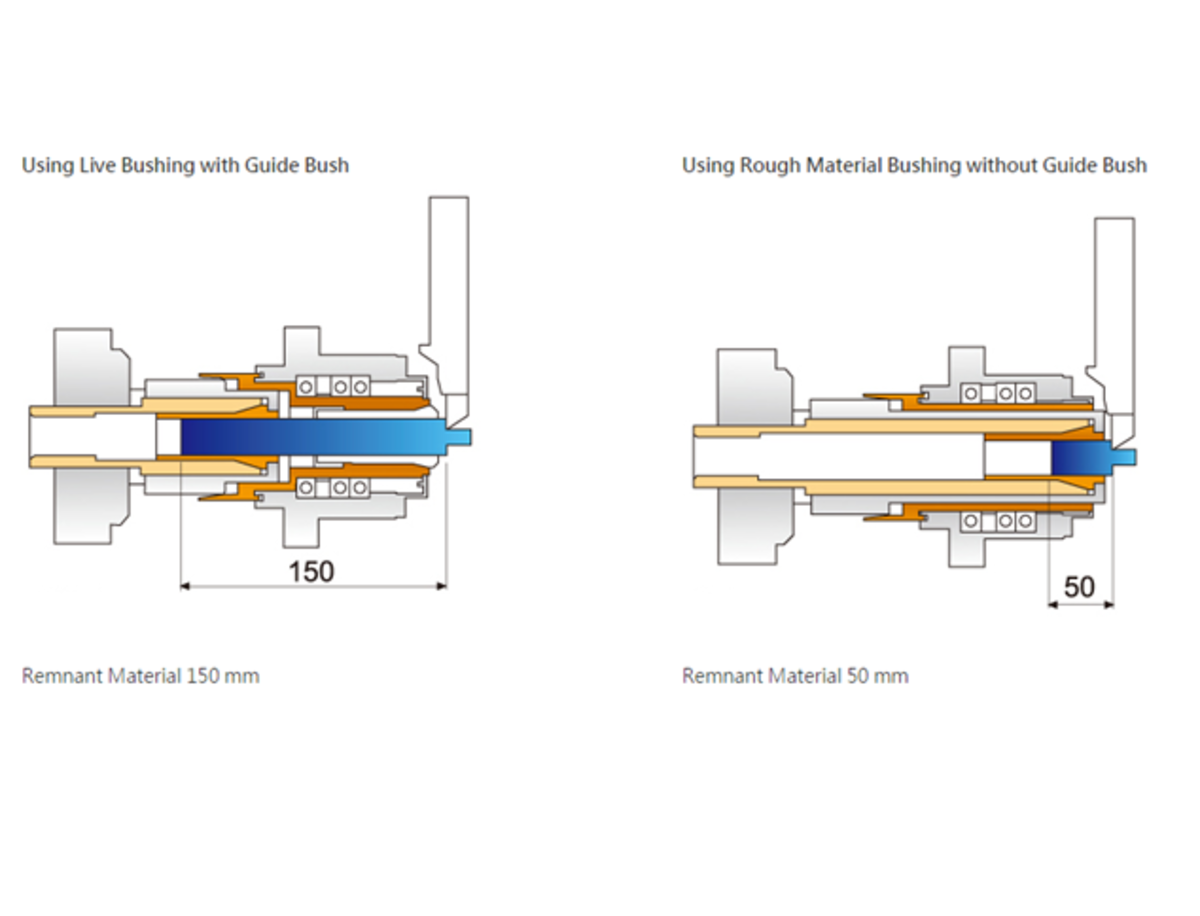

Max. Length for Front Ejection 60 mm
Sub Spindle Indexing Angle C axis
Rapid Traverse X1, Y1, Z1, X2, Z2 30 m/min
Motors Spindle Motor 3.7 kw
Back Spindle Motor 3.7 kw
X1, Y1, Z1, X2, Z2 Axis Motor 0.5 kw
Coolant Pump Motor 1 HPx2
Lubrication Motor 4 w x2
Driven Tools Motor-fixed Arm -
Driven Tools Motor-back Replaced Toolholder Set -
Machine Dimensions Center Height 1050 mm
Weight 3100 kg
Machine Dimension 2500 × 1280 × 1780
Air Pressure Air Pressure 5 kg/cm
Air Supply 10 L/min
