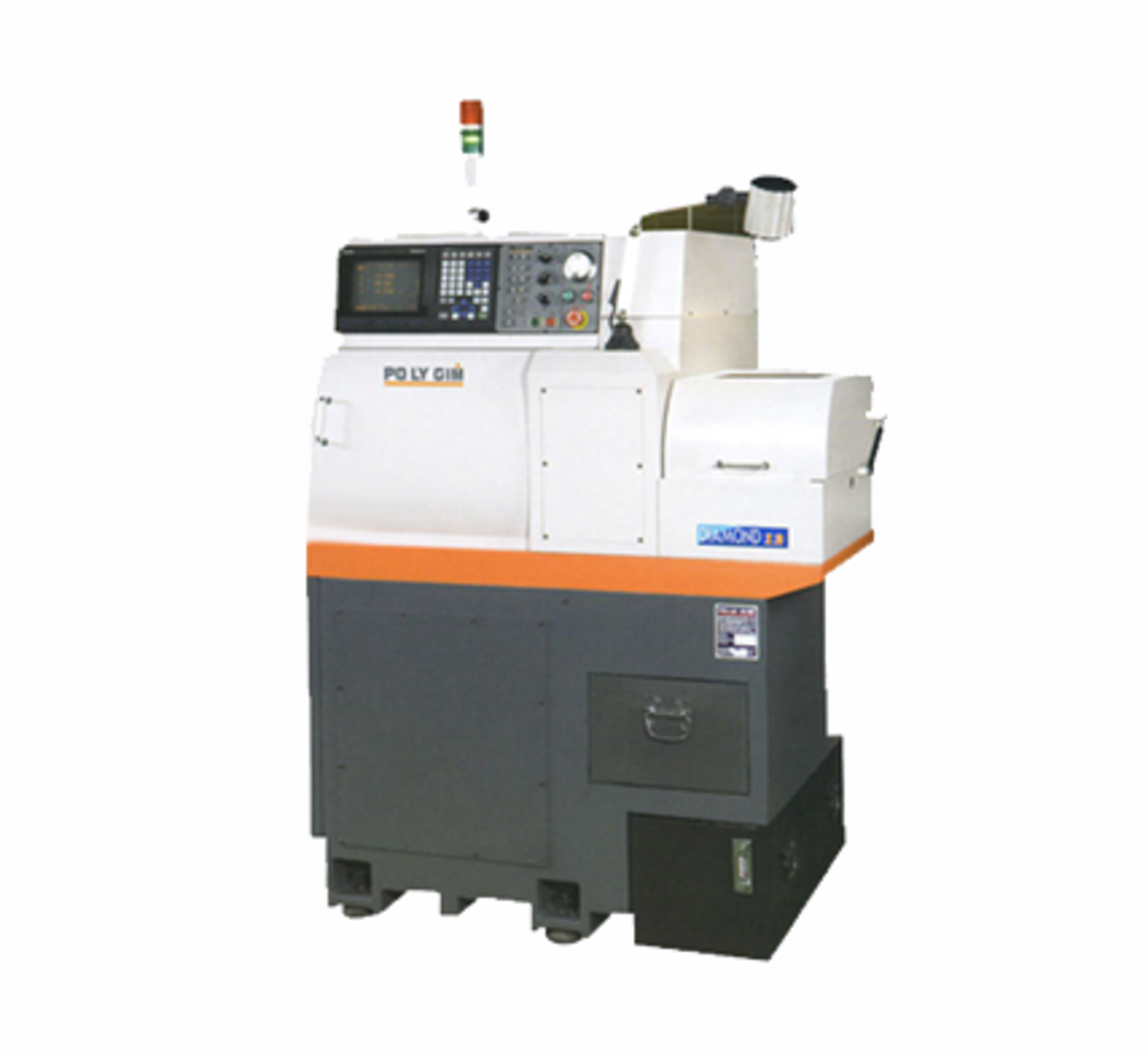

DIAMOND 12

Series Image Series Image Series Image

Swiss Type CNC Lathe

www.polygim.com.tw

Request Quote on This Model

Select Machine Size/Model Here

Specifications

Items DIAMOND 12
Working Range Max. Machining Dia. 12.7 mm
Max. Machining Length Per Chucking 150 mm
Max. Drilling Dia. 7 mm
Max.Tapping Dia. M6

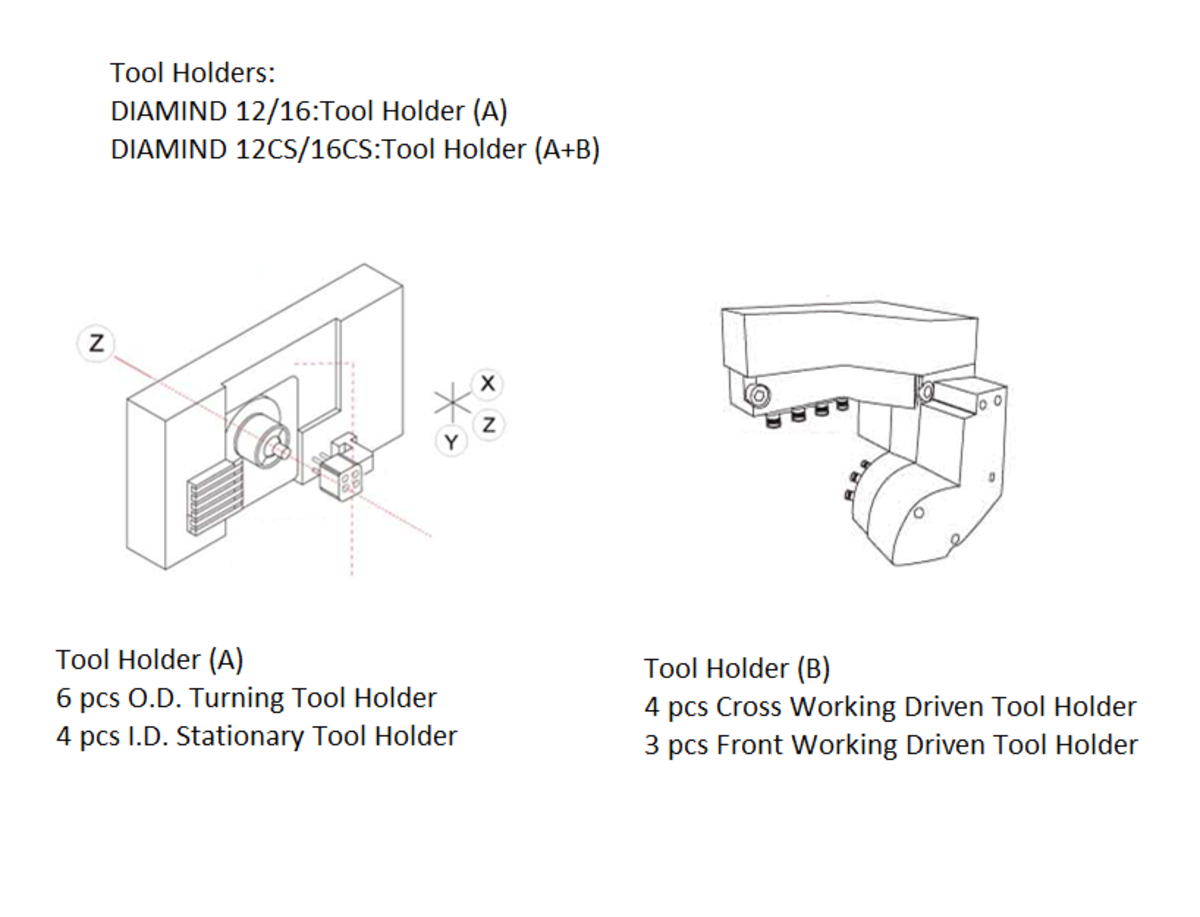

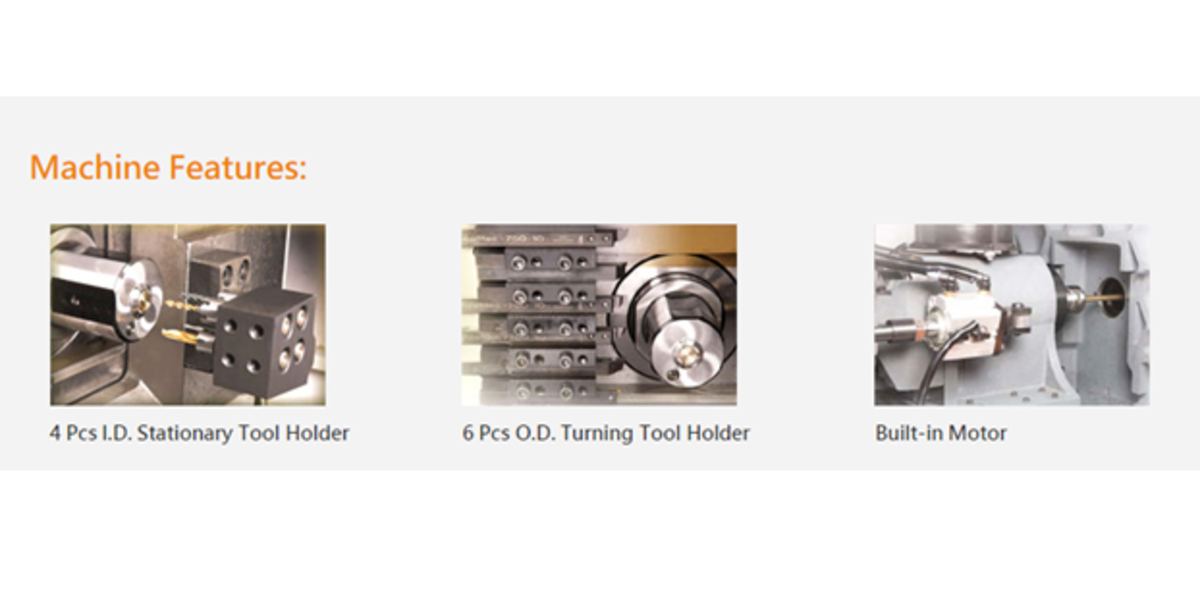

O.D. Tooling Number of Tools 6
Dimension 10 ×10 ×100
I.D. Tooling Number of Tools 4
Dimension 7 mm (ER11)
Cross Working Driven Tooling Number of Tools -
Dimension -
Cross Spindle Speed -
Front Working Driven Tooling Number of Tools -
Dimension -
Spindle Speed -
Spindle Spindle Hole Dia. 13 mm
Spindle Speed 200- 12,000 r.p.m.
Rapid Speed Rapid speed 30 M
Motors Spindle Motor 2.2 kw
X/Y/Z Axis Motor 0.75 kw
Coolant Pump 0.18 kw
Lubrication 4 w
Cross Spindle -
Total Power 4.634 kw
Machine Dimensions Center Height 1050 mm
Weight 1088 kg
Machine Size 1200 × 900 × 1750
Air Pressure Air Pressure 5 kg/cm
Air Supply 10 L/min
