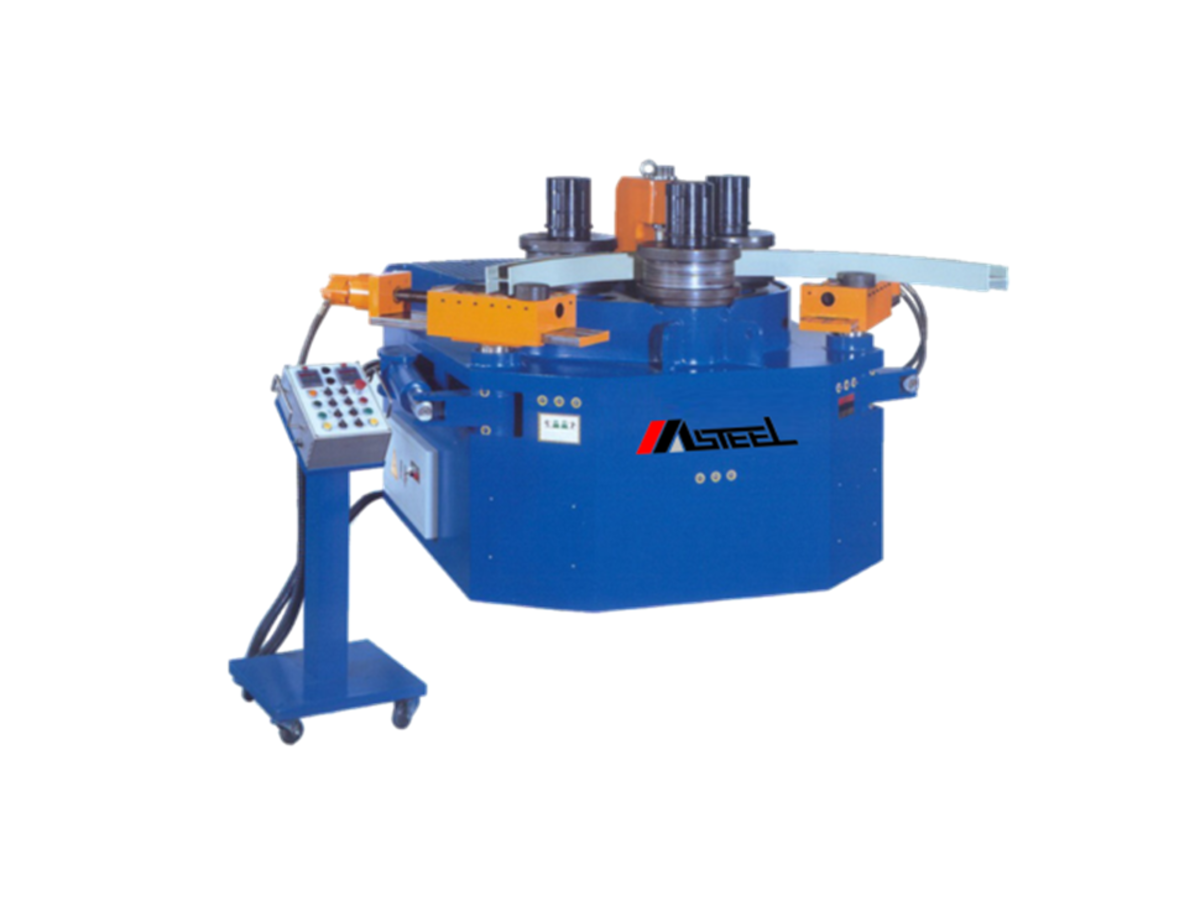

LH-4RS
Overview:
Drive on all three rolls.
One hydraulic motor with gear system(LH-2RS-LH-5RS)
Two hydraulic motors with gear system(LH-6RS-or larger)
Automatic compensation for speed difference between rolls via adjustable slip clutch
Hydraulic operated drive rolls
Digital readout for showing bottom rolls position
A set of standard universal tooling for bending Angle, Flat bar, and T-section
Portable control console with push buttons for all functions.
OPTIONAL EQUIPMENT:
Special tooling for pipe/round bar.
Each set of rolls can be designed for 1 or 2 different sizes.
Special tooling for square or rectangular tubing
Combined rolls for I and U beams adjustable for all different sizes covering the capacity of the machine
Special tooling for H beam and work together with pulling assembly.
Special tooling for sections and profiles are designed on request.
Request Quote on This Model
Specifications
| Model | LH-4RS |
| Section, Modules (cm) | 30-40 |
| Power (KW) | 11.25 |
| Diameter of the standard rolls (mm) | 310 |
| Shaft diameters Top/lower, mm | 105 105 |
| Rolling speed (m/min) | 3-7 |
| Weight (Kg) | 6000 |
| L x W x H (m) | 1.6x1.9x1.4 1.3x0.8x1.2 |
Sections
