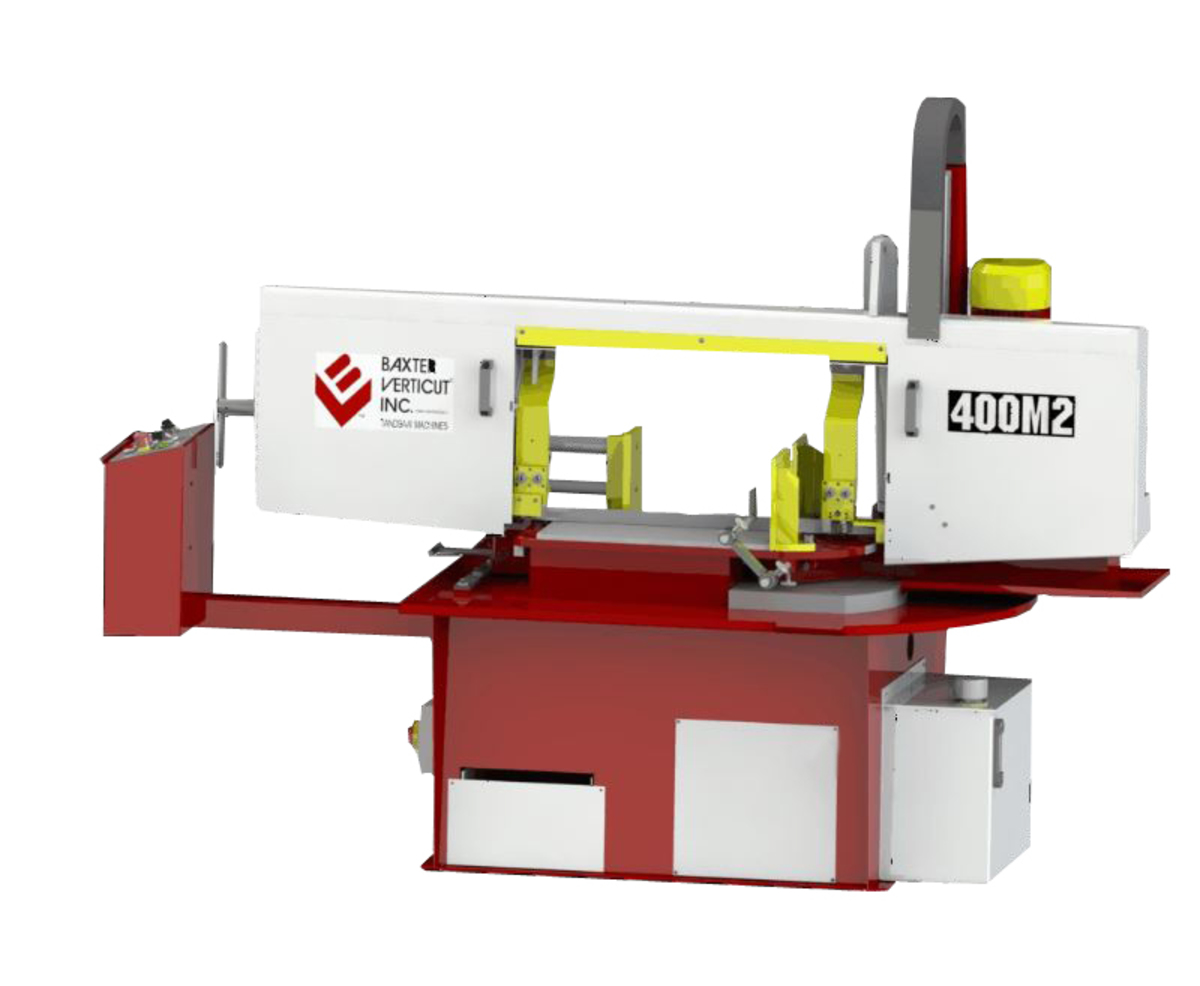

BAXTER 400M2
DOUBLE MITER HORIZONTAL BANDSAW
Request Quote on This Model
Specifications
| CUTTING CAPACITY | |
| Round at 90 degrees | 16″ (400 mm) |
| Rectangular at 45 degrees | 15″ (380 mm) |
| Rectangular at 60 degrees | 10 1/2″ (265 mm) |
| Rectangular at 90 degrees | 21″w x 12 3/4″h (530 x 400 mm) |
| Rectangular at 45 degrees | 15″w x 10 1/2″h (380 x 320 mm) |
| Rectangular at 60 degrees (maximum height) | 10 1/2″w x 10 1/2″h (365 x 365 mm) |
| Rectangular at 60 degrees (maximum height) | 7 3/4″w x 16″h (195 x 400 mm) |
| SPECIFICATIONS | |
| Blade Size | 1 1/4″ x 14’6″ (34 x 4450 mm) |
| Blade Speeds (ft/min) | 60 to 400 (18 to 122 m/min) |
| Blade Tension (spring compensated) | 25,000 psi |
| Table Height | 30 5/8″ (775 mm) |
| Maximum Work Load | 3,000 lb. (1350 kg) |
| Machine Weight | 2,150 lb. (980 kg) |
| Overall Dimensions | 96″ x 43″ x 72″ (2440 x 1100 x 1830 mm) |
| DRIVE | |
| Blade Drive | 5 Hp (3.75 kW) |
| Hydraulic Drive | 2 Hp (2.25 kW) |
| Voltages Available (three phase) | 575, 460, 130/60 Hz |
FEATURES INCLUDED AS STANDARD EQUIPMENT
- Double column machine provides maximum capacity and rigidity
- Design utilizes linear bearings for high stiffness and smooth motion
- Saw frame swings 45° forward, 60° to the rear allowing miter cutting with out swinging the material, indicating scale showing cut angle, hard stops at +45°, 0° and -60°
- Hydraulic saw head lift and full stroke material clamp vise
- Large base for stability with large coolant catch area
- Conveniently located control station mounted on a swinging console for operator convenience
- Cutting feed hydraulically regulated with feed rate scale
- Load sensing valve stops the feed if the blade starts to overload, typical cutting structural shapes
- Magnetic motor starter with automatic shut off at the end of cut, motor thermal overload protection. Power disconnect on machine
Options
| Work Lights (LED) |
| Laser Light Cut Indicator |
| Conveyor 10" |
