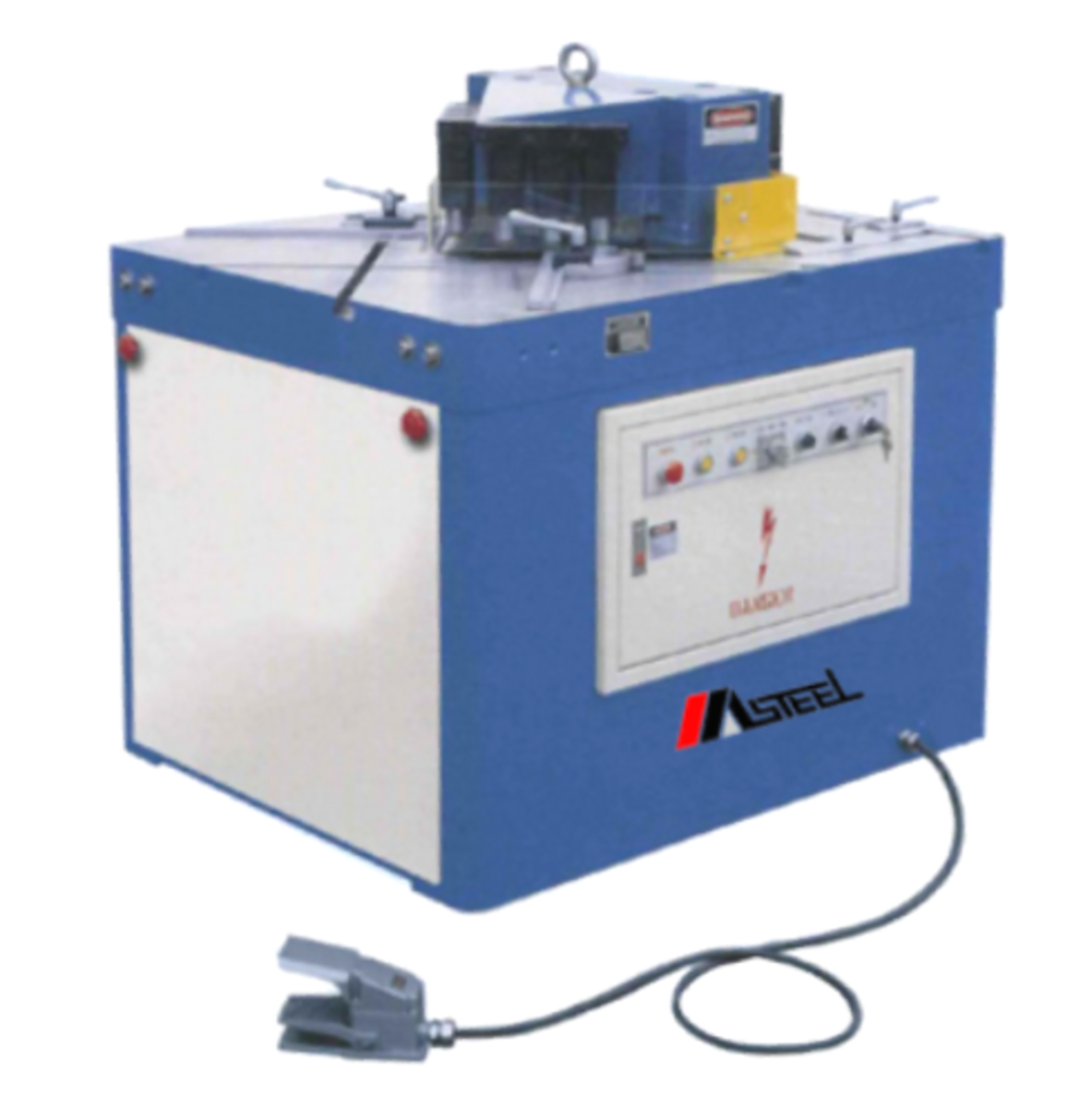

LE-10H

Download
  • Masteel Fabrication Catalogue
Product Image

Dual-head design: This design enables notching in one head and edge punching in another head. Control system: Centralized control box with remote foot switch provides single, inch and continuous stroking operation. Fine adjustment: A good scale for small materials positioning with a fine adjustment on X-axis and stop Y-axis is provided. Material holder: In order to prevent deviation during cutting, this material holder can hold the material while lowering the blades.

Request Quote on This Model

Specifications

CAPACITY (MM) 4.0
MAX. NOTCH (MM) 220 X 220
EDGE NOTCH (MM) 50 X 100
RAM STROKE (MM) 25
STROKE (SPM) 18
MOTOR (HP) 2
WEIGHT (KG) 920
SIZE (MM) 1549 X 533 X 1219

Features

Full hydraulic drive and control system

Notching blades

Edge punching blades

Remote foot control

Finger guards
