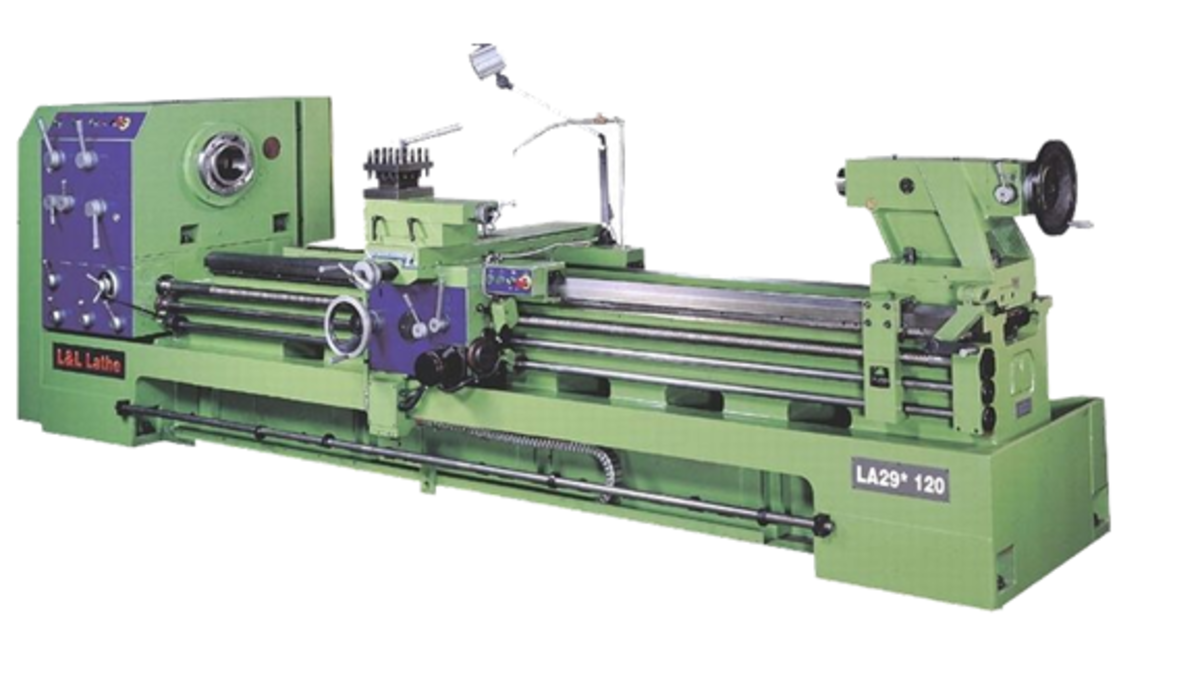

ML-LA-30/1500
HEAVY DUTY HOLLOW SPINDLE LATHES
Standard features
Heavy duty bed-way structure-510mm/20" wide
Solid, one piece meehanite casting structure
Direct hydraulic brake ensure quick spindle stop without shark load to headstock gear
Taper attachment
One steady rest capacity: (1)30-300mm (quill diameter 80mm)
One follow rest ¢30-230mm (quill diameter45mm)
One set american 4-jaw chuck (direct mounted) (one piece jaw type)
One set 3-jaw scroll chuck directly mount (two piece jaw type)
Auto lubrication system
Request Quote on This Model
Select Machine Size/Model Here
Specifications
| Model | ML-LA-30/1500 |
| Swing over bed | 770mm |
| Swing over cross slide | 530mm |
| Center height | 390mm |
| Distance between centers | 1500mm |
| Carriage Width | 720mm |
| Cross slide width | 280mm |
| Bed width | 610mm (20”) |
| Machine Length | 3730mm |
| Bed way | 3 V ways and 1 flat way |
| Headstock | |
| Spindle power | AC20PHP*4P |
| Spindle bore | Ø105mm Ø153mm Ø205mm Ø230mm Ø305mm (4”) (6”) (8”) (9”) (12”) |
| Spindle nose | A2-8 A2-11 A2-15 A2-15 A2-20 |
| Spindle speed | 10~1250rpm 5~670rpm 4~500rpm 4~440rpm |
| Spindle center | 4”, 6”: MT#5 9: , 6”: MT#6 |
| Turret | |
| Turret mode | 4 way tool post |
| Tool size | 32mm |
| compound slide stroke | 300mm |
| Tailstock | |
| Quill diameter | Ø105mm(std.) ; Ø165mm(opt.) |
| Quill stroke | 150mm(std.) ; 200mm(opt.) |
| Tailstock center | MT#6 |
| Body movement | By Carriage (std.) Motorized (opt.) |
| Quill movement | By hand wheel (std.) Motorized (opt.) |
| Treading | |
| inch: 30~0.25TPI(70set) ; Metric: 1~120mm(62set) MP: 30~0.25TPI(53set) ; DP: 1~120mm(70set) | |
| Feed | |
| X-axis feed range | IPR: 0.0016”~0.048” ; MPR: 0.04~1.2mm |
| X-axis stroke | 500mm |
| X-axis rapid traverse | 1500mm/min |
| Z-axis feed range | IPR: 0.0032”~0.096” ; MPR: 0.08~2.4mm |
| Z-axis stroke | 1500mm |
| Z-axis rapid traverse | 3000mm/min |
