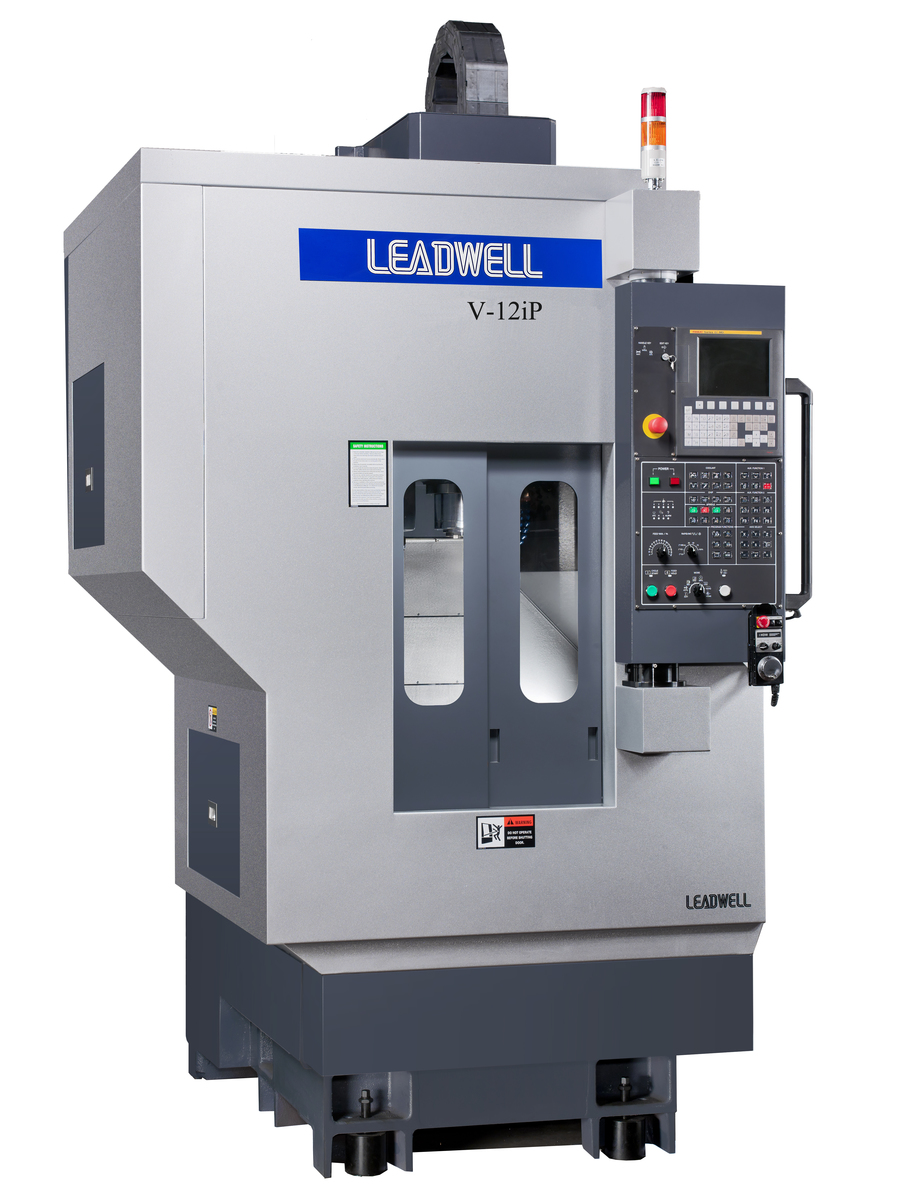

V-12iP
Vertical / High Performance
Request Quote on This Model
Select Machine Size/Model Here
Technical Specifications
| MODEL | V-12iP | |
| A.T.C | ARM | |
| X axis travel | mm(in) | 300 (11.8) |
| Y axis travel | mm(in) | 410 (16) |
| Z axis travel | mm(in) | 510 (20) |
| Table size (L x W) | mm(in) | 550x400 (21.6x15.7) |
| Max. table load | kg | 500 |
| Spindle speed | rpm | 10000,12000,15000 |
| Rapid traverse X/Y/Z | m/min/(ipm) | 48/48/48 (1889/1889/1889) |
| Tool storage capacity | pcs | 24 |
| Spindle motor (30min) FANUC | kW (hp) | 11 (14.7) |
| X/Y/Z axis motor | kW (hp) | 1.6/3/4 (2/4/5.4) |
| Machine size (L x W x H) | mm | 1500x2600x2680 |
| Machine weight | kg | 5000 |
