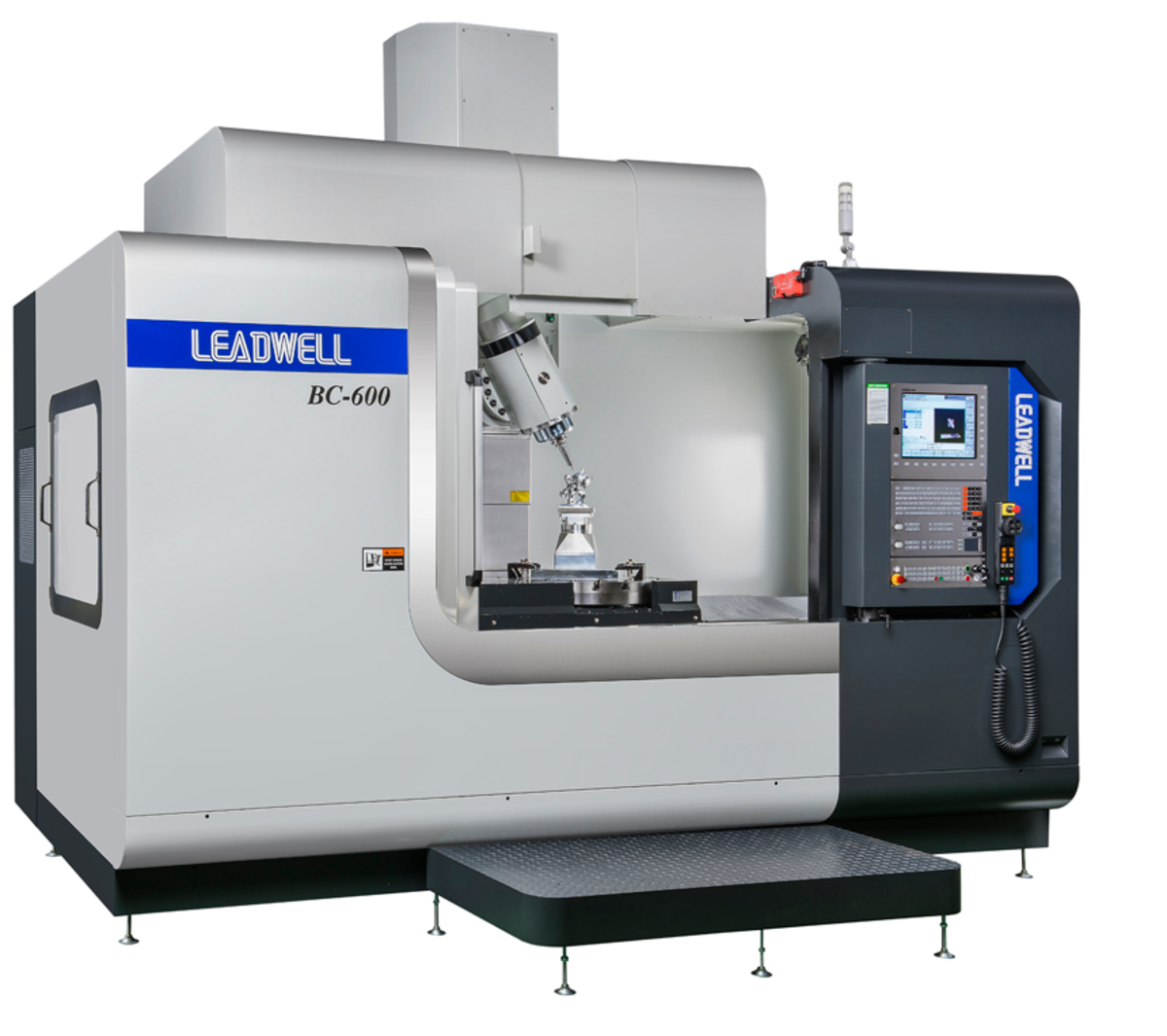

BC-600
VERTICAL / 5 AXES
Request Quote on This Model
Select Machine Size/Model Here
Specifications
| MODEL | BC-600 | |
| CAPACITY | ||
| X axis travel | mm(in) | 1110 (43.3) |
| Y axis travel | mm(in) | 610 (24) |
| Z axis travel | mm(in) | 610(24) VERTICAL 790(31.1)HORIZONTAL |
| Distance from table top to spindle end | mm(in) | 150-760 (5.9-29.9) |
| Distance from table top to spindle center | mm(in) | 215-1005 (8.5-39.6) |
| Distance from column front to spindle center | mm(in) | 691.5 (27.2) |
| TABLE | ||
| Table size (LxW) | mm(in) | Ø600(23.6) Rotary Table 1280x610(50.4x24) Table |
| Max. table load | kg | 400 Rotary Table 1400 Table |
| T-slot size | mm(in) | 18Tx100x5 |
| SPINDLE | ||
| Spindle speed | rmp | 15000 |
| Spindle nose (nominal size, NO.) | 7/24 Taper, NO.40 | |
| Max. spindle torque | Nm(Ibw.ft) | 95 (70) |
| FEED RATE | ||
| Rapid Traverse X/Y/Z | m/min/(ipm) | 36/36/30 (1417/1417/1182) |
| Max. cutting feed rate | m/min/(ipm) | 10 (394) |
| ATC | ||
| Tool Storage capacity | pcs | 30 |
| Max. tool diameter (with adjacent tools) | mm(in) | 85 (3.34) |
| Max. tool diameter (without adjacent tools) | mm(in) | 125 (4.92) |
| MOTORS | ||
| Spindle motor (30min/cont) | Kw (HP) | 18.5 (24.8) |
| X/Y/Z axis motor | Kw (HP) | 4/7/7 (5.4/9.3/9.3) |
| MACHINE SIZE | ||
| Height (H) | mm(in) | 3450 (135.8) |
| Floor space (LxW) | mm(in) | 4710x3830 (185.4x150.8) |
| Weight | Kg | 1200 |
| Power requirements | KVA | 65 |
Standard Accessories
| STANDARD ACCESSORIES |
| Full enclosure guarding |
| Chip conveyor (auger type) |
| Work light |
| Alarm lamp |
| Rigid tapping |
| Auto counter for work piece |
| Remote MPG |
| Surrounding coolant system |
| Linear scales |
| Chip conveyor outside machine with chip bucket |
| Air conditioner |
| Annular spindle coolant jet (arm type ATC) |
| Spindle oil chiller |
Optional Accessories
OPTIONAL ACCESSORIES
| 10,000 rpm spindle |
| 12,000 rpm spindle |
| CTS from A |
| Tool tip air blow system |
| Tool overload detection |
| Auto tool length measurement (ATLM) |
| Simple tool life management |
| Oil skimmer |
| Coolant gun |
| Through hole drill kit |
| DNC link software |
| CTS preparation |
| Extra coolant tank |
| ARM (40T) ATC |
| Auto door |
| Programmable nozzle |
| Programmable air blow |
