UMM-2016RW

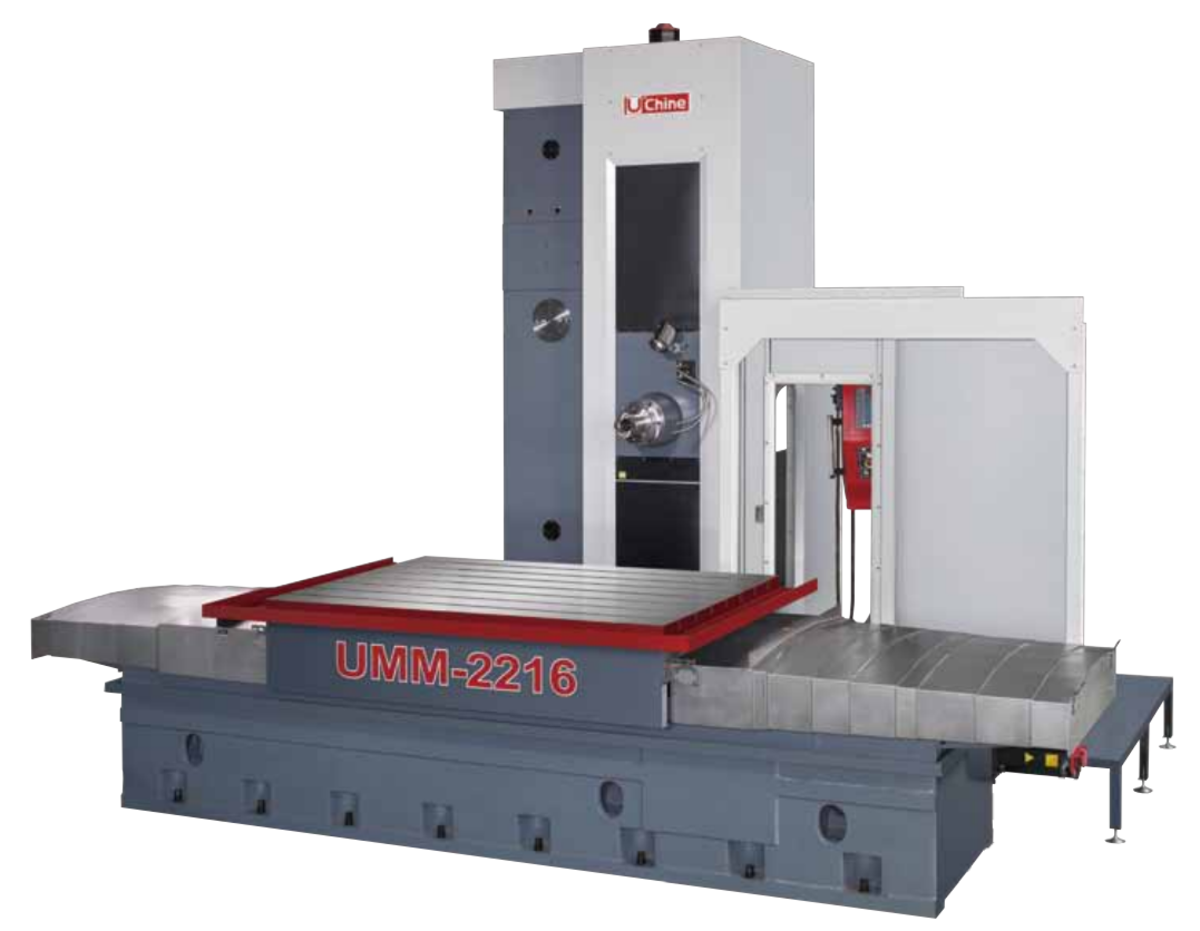

Series Image

STANDARD ACCESSORIES
Spindle oil cooler
Automatic power off
Hydraulic system
Coolant system
Lubricator system
Alarm lamp
Work lamp
M.P.G.
RS232 interface
Heat exchanger
Chip conveyor and cart
Leveling bolts & pads
Controller manuals and circuit diagram
Operation manuals
Machine inspection lists
Toolbox with spanners & wrenches
FANUC 0i-MF
Splash guards (around the operator and work table)

OPTIONAL ACCESSORIES
Y-axis travel:2000 mm (UMM-2216, 2616, 3216)
Z-axis travel:1700 mm
Linear scale on X, Y, Z axes
ATC: 24, 32, 40, 60 Tools
Spindle speed:4000 or 6000 rpm
Air conditioner at cabinet
Coolant through spindle
Large splash guards (around the machine)
Work table: 1800x1600mm/0.001°
load: 10 tons(UMM-xxxxR series)

Request Quote on This Model

Select Machine Size/Model Here

Technical Specifications

MODEL UNIT UMM-2016RW
TABLE Table Size mm 1600X1400X0.001°
T Slot mm 24
Maximum Load kg 8000
TRAVEL X Axis mm 2000
Y Axis mm 1600(2000)
Z Axis mm 1200(1700)
W Axis(Slide Way) mm 600
SPINDLE Speed rpm 6000
Taper   7/24 Taper ISO.50, BT-50
DISTANCES Spindle Center to Table Surface mm 0~1600(2000)
Spindle Nose to Table Center mm 0~1800(2300)
Height From Ground to Table Surface mm 1250
   FEED RATE Rapid Feed Rate X/Y/Z/W m/min 10
Minimum Setting mm/min 0.001
Cutting Feed Rate mm/min 1~5000
Motor Spindle Servo Motor-cont./ 30min. kW 22/26
Axis X/Y/Z/W/B kW 7/4/4/4/7
Lubricator Motor kW 0.15
Hydraulic Pump kW 2.25
Coolant Pump kW 1.17
Chip Conveyor kW 0.2
Oil Cooling Pump kW 0.75
ATC No. of Tools pieces (24, 32, 40, 60)
Tool Selection   Absolute
Tool Change Time (approx.) (T to T) Sec. 15
Max. Tool-Diameter/Length mm Ø125/Ø250(Without Adjacent Tool)/ Length 400
Max. Tool Weight kg 25
  COOLANT & LUBRICATION Coolant Tank Volume L 400
Hydraulic Tank Volume L 80
Lubrication Tank Volume L 8
MISCELLANEOUS Power Required kVA 55
Pressurized Air kg/cm² 6
Machine Weight ton 25.5
