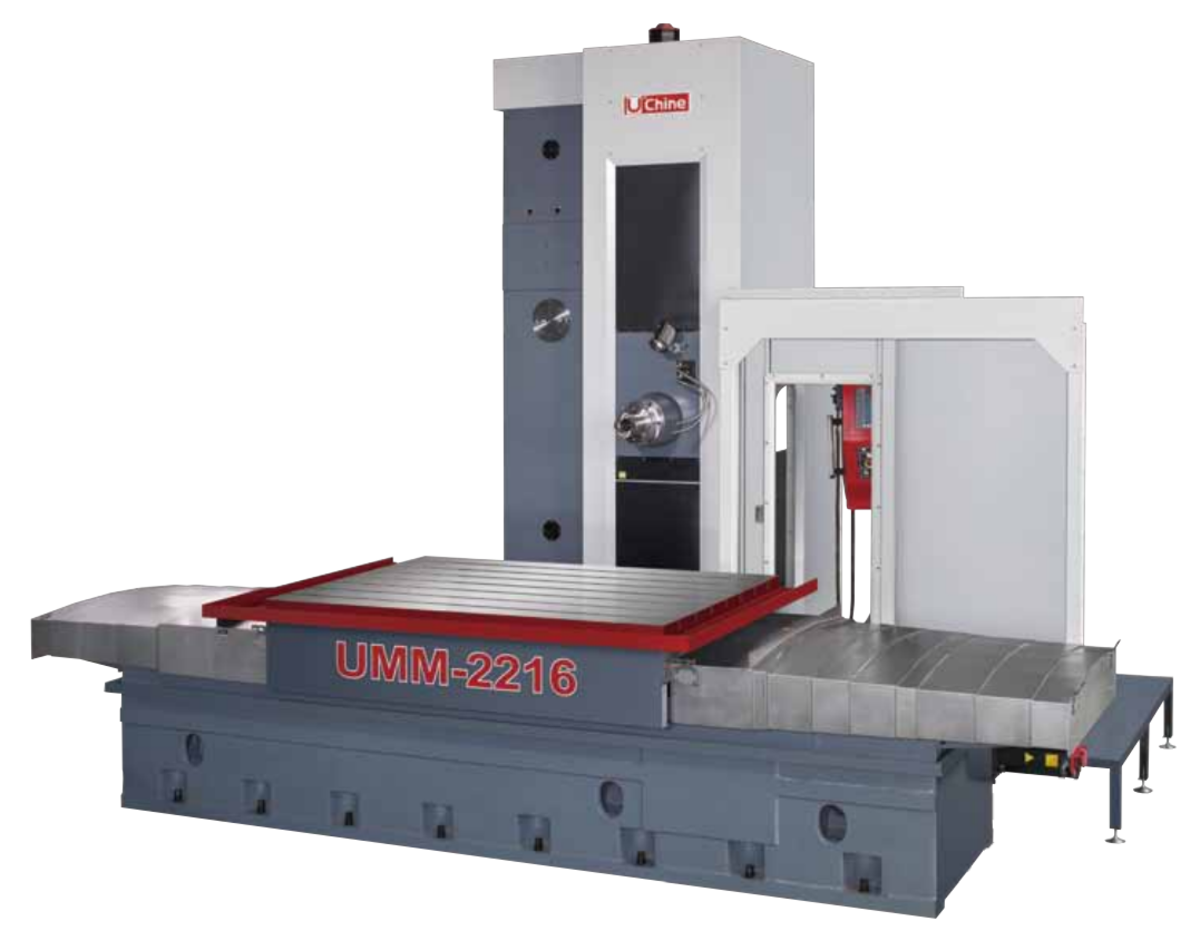

UMM-2216R
STANDARD ACCESSORIES
Spindle oil cooler
Automatic power off
Hydraulic system
Coolant system
Lubricator system
Alarm lamp
Work lamp
M.P.G.
RS232 interface
Heat exchanger
Chip conveyor and cart
Leveling bolts & pads
Controller manuals and circuit diagram
Operation manuals
Machine inspection lists
Toolbox with spanners & wrenches
FANUC 0i-MF
Splash guards (around the operator and work table)
OPTIONAL ACCESSORIES
Y-axis travel:2000 mm (UMM-2216, 2616, 3216)
Z-axis travel:1700 mm
Linear scale on X, Y, Z axes
ATC: 24, 32, 40, 60 Tools
Spindle speed:4000 or 6000 rpm
Air conditioner at cabinet
Coolant through spindle
Large splash guards (around the machine)
Work table: 1800x1600mm/0.001°
load: 10 tons(UMM-xxxxR series)
Request Quote on This Model
Select Machine Size/Model Here
Technical Specifications
| MODEL | UNIT | UMM-2016R | |
| TABLE | Table Size | mm | 1600X1400X0.001° |
| T Slot | mm | 24 | |
| Maximum Load | kg | 8000 | |
| TRAVEL | X Axis | mm | 2000 |
| Y Axis | mm | 1600(2000) | |
| Z Axis | mm | 1200(1700) | |
| SPINDLE | Speed | rpm | 3500(4000, 6000 Belt type) |
| Taper | 7/24 Taper ISO.50, BT-50 | ||
| DISTANCES | Spindle Center to Table Surface | mm | 0~1600(2000) |
| Spindle Nose to Table Center | mm | 360~1560(2060) | |
| Height From Ground to Table Surface | mm | 1250 | |
| FEED RATE | Rapid Feed Rate X/Y/Z | m/min | 10 |
| Minimum Setting | mm/min | 0.001 | |
| Cutting Feed Rate | mm/min | 1~5000 | |
| Motor | Spindle Servo Motor-cont./ 30min. | kW | 22/26 |
| Axes X/Y/Z | kW | 7/4/4/7 | |
| Lubricator Motor | kW | 0.15 | |
| Hydraulic Pump | kW | 2.25 | |
| Coolant Pump | kW | 1.17 | |
| Chip Conveyor | kW | 0.2 | |
| Oil Cooling Pump | kW | 0.75 | |
| ATC | No. of Tools | pieces | (24, 32, 40, 60) |
| Tool Selection | Absolute | ||
| Tool Change Time (approx.) (T to T) | Sec. | 15 | |
| Max. Tool-Diameter/Length | mm | Ø125/Ø250(Without Adjacent Tool)/ Length 400 | |
| Max. Tool Weight | kg | 25 | |
| COOLANT & LUBRICATION | Coolant Tank Volume | L | 400 |
| Hydraulic Tank Volume | L | 80 | |
| Lubrication Tank Volume | L | 8 | |
| MISCELLANEOUS | Power Required | kVA | 55 |
| Pressurized Air | kg/cm² | 6 | |
| Machine Weight | ton | 26 | |
