UHM-630T

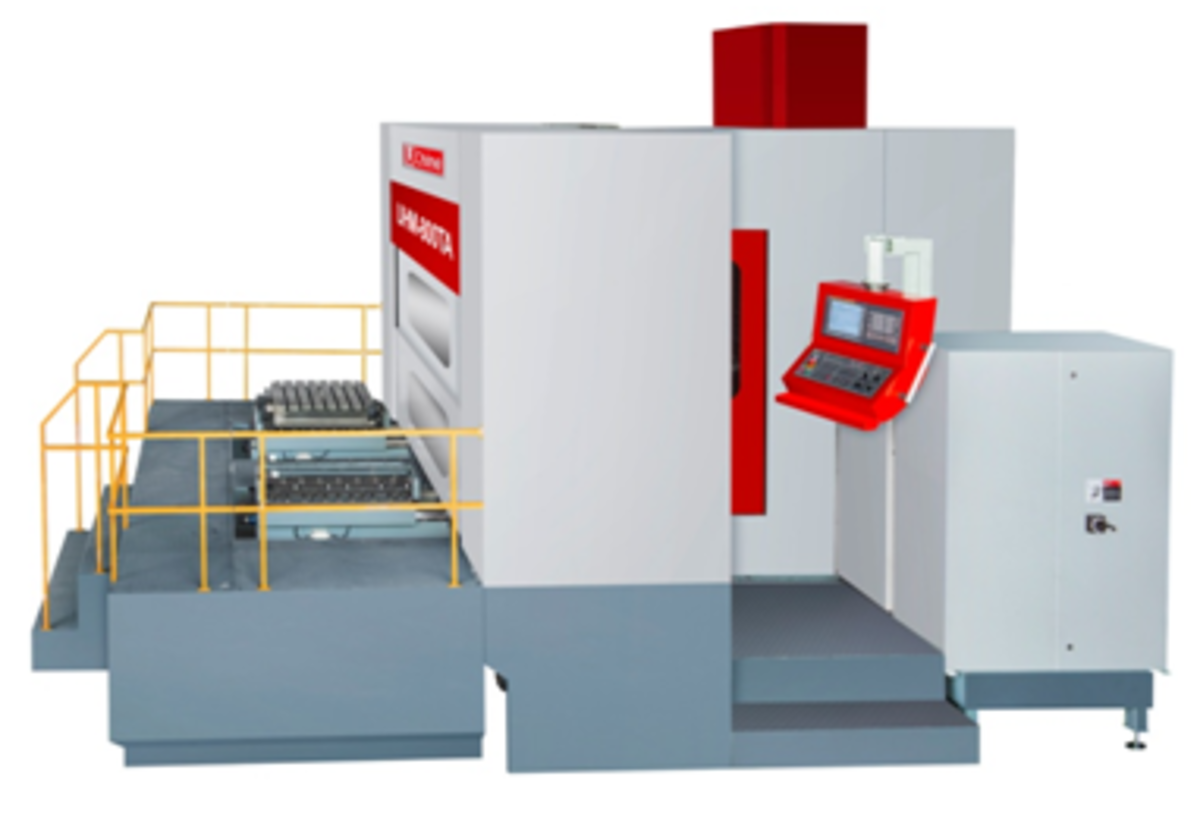

Series Image

STANDARD ACCESSORIES
Linear scales on X,Y,Z axes
Spindle oil cooler
Automatic power off
Hydraulic system
Coolant system
Lubricator system
Alarm lamp
Work lamp
M.P.G.
RS232 interface
Heat exchanger
Chip conveyor and cart
Leveling bolts and pads
Controller manuals and circuit diagram
Operation manuals
Machine inspection lists
Splash guards (around the table)
Tool box
FANUC Oi MF
ATC: 40 tools

OPTIONAL ACCESSORIES
ATC: 60 tools
Oil mist device
Variety of controllers( FANUC / MELDAS /SIEMENS / HEIDENHAIN)
Various auxiliary work tables are available
Air conditioner for electrical cabinet
Coolant through spindle

Request Quote on This Model

Select Machine Size/Model Here

Technical Specifications

MODEL UNIT UHM-630T
TABLE Table Size mm 630x630
T-Slots mm 20X5
Maximum Load kg 1500
Indexing Degree   1° (0.001°)
TRAVEL X Axis mm 1200
Y Axis mm 1000
Z Axis mm 1000
SPINDLE Speed rpm 4000(6000,8000)
Taper   7 / 24 taper ISO.50, BT-50
DISTANCES Spindle Center to Table mm 0~1000
Spindle Nose to Table Center mm 200~1200
Height from ground to table surface mm 1055
FEED RATE Rapid Feed rate X/Y/Z m/min 15/12/15
Minimum Setting mm 0.001
Cutting Feed rate mm/min 1~5000
MOTOR Spindle Servo Motor-cont./30min. kW 11/15(15/18.5)
X/Y/Z/B Servo Motors kW 3/7/4/3
Lubricator Motor kW 0.15
Hydraulic Pump kW 2.25
Coolant Pump kW 1.17
Chip Conveyor kW 0.2
Oil Cooler Pump kW 0.75
ATC No. of Tools pieces 40(60)
Tool Selection   Absolute
Max. Tool (Diameter/Length) mm Ø125/Ø250(Without Adjacent Tool)/Length 400
Max. Tool Weight kg 18
Power Required kVA 40
MISCELLANEOUS Pressurized Air kg/cm² 6
Machine Base mm
Machine Weight(approx.) kg
