UHM-1210E

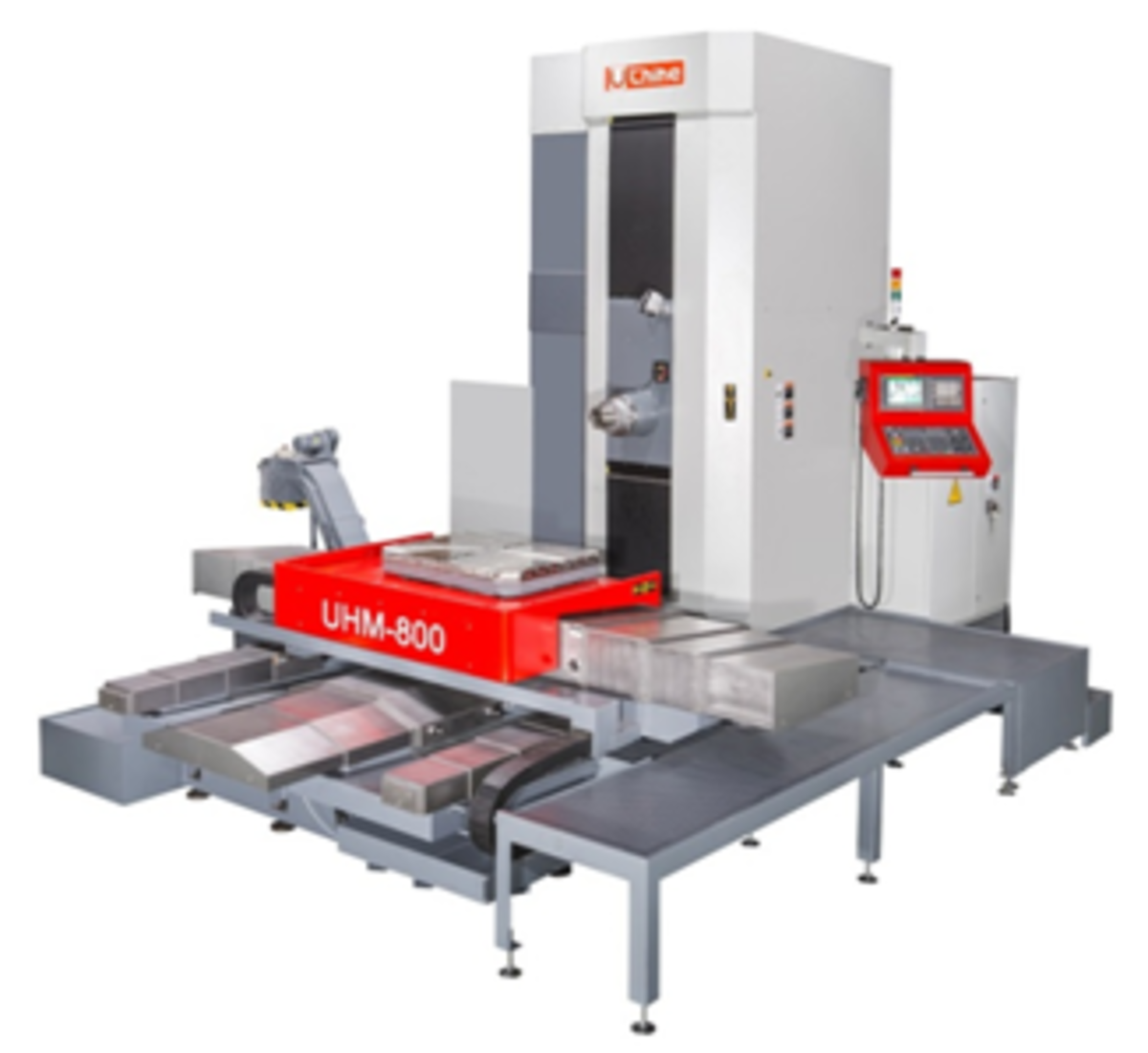

Series Image

STANDARD ACCESSORIES
Linear scales on X,Y,Z axes
Spindle oil cooler
Automatic power off
Hydraulic system
Coolant system
Lubricator system
Alarm lamp
Work lamp
M.P.G.
RS232 interface
Heat exchanger
Leveling bolts and pads
Controller manuals and circuit diagram
Operation manuals
Machine inspection lists
Tool box
Splash guards (around the table)
SYNTEC PC Base 20MA-3E Controller
System include 10.4TFT monitor
Spindle speed 3500RPM
(Max. Gear ratio 1:8)
Oil Mist Device

OPTIONAL ACCESSORIES
X,Y,Z Axis linear scale( HEIDEHEIN,FAGOR)
Electrical Cabinet air condition device
Spindle Speed 4000RPM or 6000RPM (UHM-1210E,1512E,2016E)
Vice Controller box
Chip Conveyor & Chip Kart
Manual Rotary Table(UHM-1512E?2016E)
High Speed Tapping

Request Quote on This Model

Select Machine Size/Model Here

Technical Specifications

MODEL UNIT UHM-1210E
TABLE Table Size mm 600X600X72D(Manual)
T-Slots mm 20
Maximum Load kg 1500
TRAVEL X Axis mm 1200
Y Axis mm 1000
Z Axis mm 800
SPINDLE Speed rpm 3500(4000,6000)
Taper   7 / 24 Taper ISO.50, BT-50
DISTANCES Spindle Center to Table mm 0~1000
Spindle Nose to Table Center mm 200~1000
Height from ground to table surface mm 1056
FEED RATE Rapid Feed rate X/Y/Z m/min 15/12/15
Minimum Setting mm 0.001
Cutting Feed rate mm/min 1~5000
MOTOR Spindle Servo Motor-cont./30min. HP 15
X/Y/Z/B Servo Motors kW 2.9/4.4/2.9
Lubricator Motor kW 0.15
Hydraulic Pump kW 2.25
Coolant Pump kW 1.17
Chip Conveyor kW 0.2
Oil Cooler Pump kW 0.75
MISCELLANEOUS Power Required kg/cm² 30
Pressurized Air mm 6
Machine Weight(approx.) kg 7500
