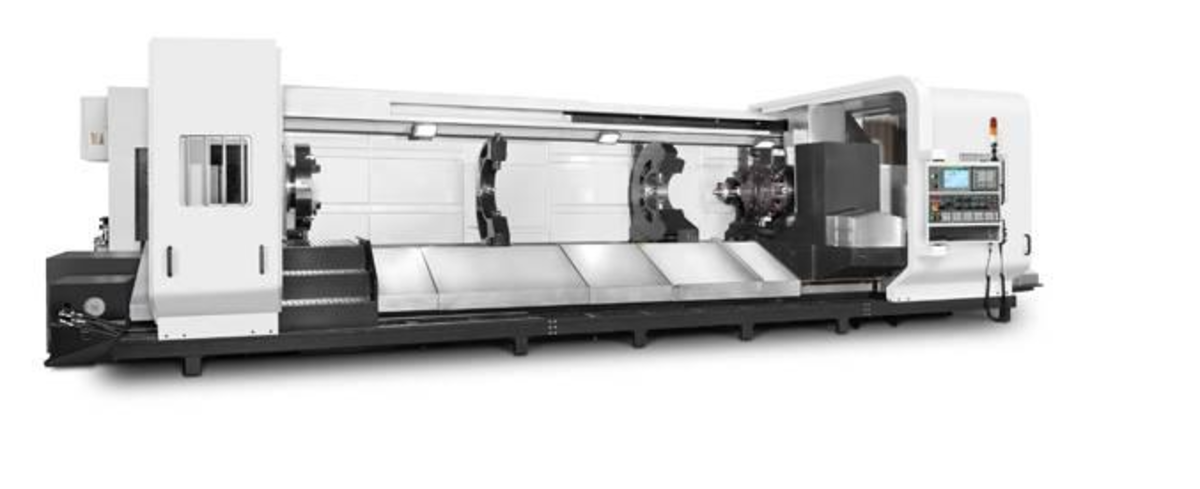

CLA-3000
The CLA-Series is a combination of CNC flat bed type lathe and slant bed type Lathe with X, Y and C-axis milling functions.
The CLA-950 is designed with 6 hardened and ground bed ways, 2 boxed ways supporting the carriage and 2 flat ways plus 1 V way supporting the tailstock and steady rest.
Both X and Y-axis are supported by the 2 boxed ways to handle heavy milling functions.
Request Quote on This Model
Select Machine Size/Model Here
Specifications
| Model | CLA-3000 | |||||||||
| Swing over bed | Ø950 mm | |||||||||
| Maximum cutting diameter | Ø950 mm | |||||||||
| Center height | 675 mm | |||||||||
| Distance between centers | 3000mm | |||||||||
| Carriage type | Box type | |||||||||
| Carriage width | 955 mm | |||||||||
| Cross slide width | 445 mm | |||||||||
| Bed width | 1290mm(52") | |||||||||
| Machine length | 9330mm | |||||||||
| Bed way | 2 box way for carriage 1 V way and 2 flat ways for tailstock and steady rest | |||||||||
| Controller | FAGOR 8055-TC | |||||||||
| X-axis servo motor | 5.2KW 16.5Nm | |||||||||
| Z-axis servo motor | 6.7KW 32Nm | |||||||||
| Y-axis servo motor | 5.2KW 16.5Nm | |||||||||

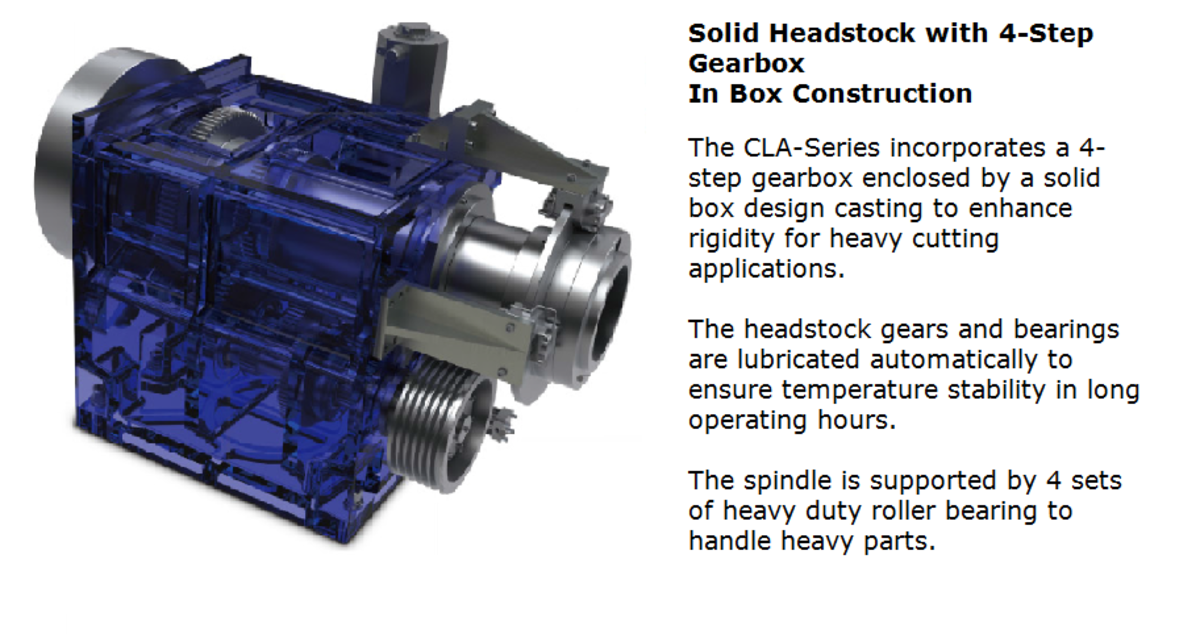

| Headstock | ||||||||||
| Spindle motor | 30/45KW 191Nm | |||||||||
| Spindle bore | Ø153mm (6") | Ø205mm (8") | Ø230mm (9") | Ø255mm (10") | Ø305mm (12") | Ø405mm (16") | ||||
| Spindle nose | A2-11 | A2-15 | A2-15 | A2-20 | A2-20 | A2-28 | ||||
| Spindle speed | 9~900rpm | 9~650rpm | 9~650rpm | 7~400rpm | 7~400rpm | 5~250rpm | ||||
| Spindle center | MT#6 | |||||||||

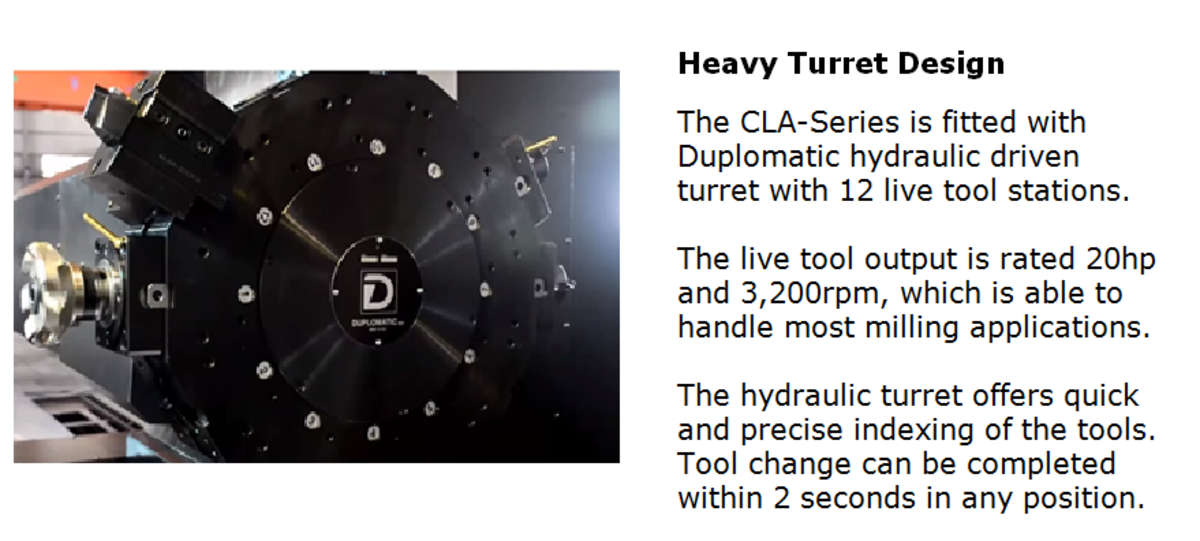

| Turret | ||||||||||
| Turret mode | Live tooling turret-SMHTR 32 Tool holder-BMT85 | |||||||||
| Spindle motor | 15/22KW 95.5Nm | |||||||||
| Tool size | 32 mm | |||||||||

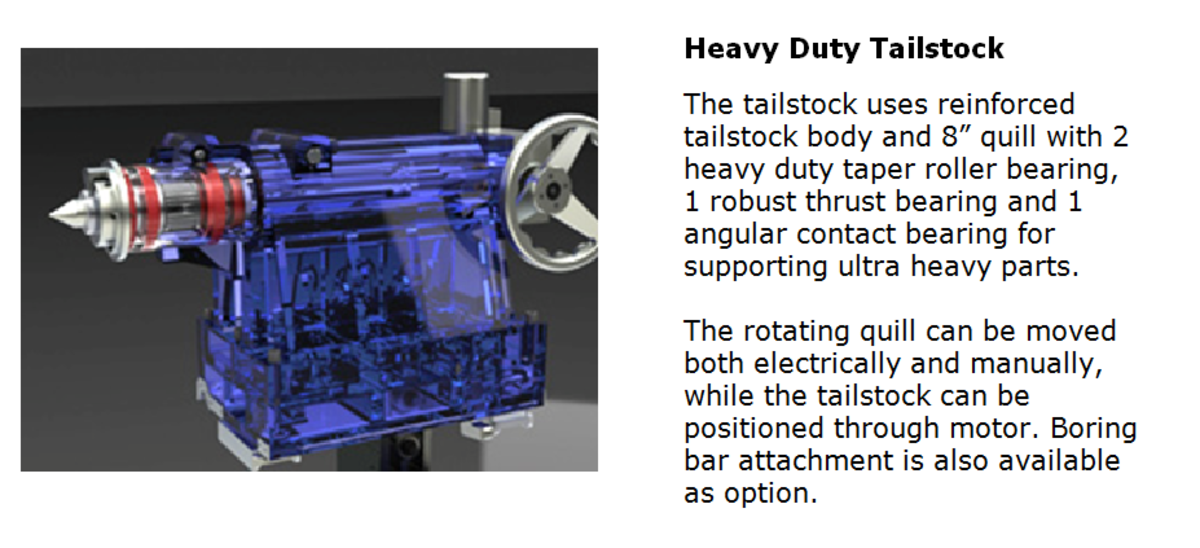

| Tailstock | ||||||||||
| Quill diameter | Ø200mm | |||||||||
| Quill stroke | 250mm | |||||||||
| Tailstock center | MT#6 | |||||||||
| Body movement | Motorized (motor through rack and pinion) | |||||||||
| Quill movement | Hydraulic | |||||||||
| Feed | ||||||||||
| X-axis rapid traverse | 5000mm/min | |||||||||
| X-axis ballscrew | Ø50mm*P5 | |||||||||
| X-axis feed range | 0.1~3000 mm/min | |||||||||
| X-axis stroke | 550mm | |||||||||
| X-axis transmitting | Directly by coupling | |||||||||
| Z-axis rapid traverse | 5000mm/min | |||||||||
| Z-axis ballscrew | Ø80mm*P10 | |||||||||
| Z-axis feed range | 0.1~3000 mm/min | |||||||||
| Z-axis stroke | 3000mm | |||||||||
| Z-axis transmitting | Ballscrew rotates through 1:4 planetary gear reducer | |||||||||
| Y-axis rapid traverse | 5000mm/min | |||||||||
| Y-axis ballscrew | Ø40mm*P5 | |||||||||
| Y-axis feed range | 0.1~3000 mm/min | |||||||||
| Y-axis stroke | ±100 mm | |||||||||
| Y-axis transmitting | Directly by coupling | |||||||||
| SANOVIK boring bar compound with tailstock (opt.) | ||||||||||
| Controller | FAGOR 8060 | |||||||||
| X2 servo motor | 5.2KW 16.5Nm | |||||||||
| Z2 servo motor | 6.7KW 32Nm | |||||||||
| Boring bar diameter | Ø150mm | Ø200mm | Ø250mm | |||||||
| Internal hole maximum cutting diameter | Ø250mm~Ø840mm | Ø300mm~ Ø890mm | Ø350mm~ Ø940mm | |||||||
| Internal hole maximum cutting depth | 1500 mm | 2000 mm | 2500 mm | |||||||
| Feed | ||||||||||
| X2 rapid traverse | 5000mm/min | |||||||||
| X2 ballscrew diameter | Ø40mm*P5 | |||||||||
| X2 feed range | 0.1~3000 mm/min | |||||||||
| X2 stroke | 300mm | |||||||||
| X2 transmitting | Directly by coupling | |||||||||
| Z2 rapid traverse | 5000mm/min | |||||||||
| Z2 ballscrew diameter | Ø63mm*P10 | |||||||||
| Z2 stroke(when doing internal hole cutting) | 3000 mm | |||||||||
| Z2 feed range | 0.1~3000 mm/min | |||||||||
| Z2 transmitting | Ballscrew rotates through 1:4 planetary gear reducer | |||||||||
| Standard accessories | ||||||||||
| Lubrication pump | Spindle | 1/4HP 6.5L/min | ||||||||
| Carriage | 25W 130cc/min | |||||||||
| Coolant pump | 15 Bar with oil skimmer | |||||||||
| Hydraulic pump | 2HP | |||||||||
| Chip removal | Front and rear chip conveyor+ front and rear carts | |||||||||
| Guard | Front two doors + rear splash guard (std.) Fully enclosed guard (opt.) | |||||||||
| Machine color | Machine body black(RAL9011)+ splash guard and doors white(RAL7047) | |||||||||
| Optional accessories | ||||||||||

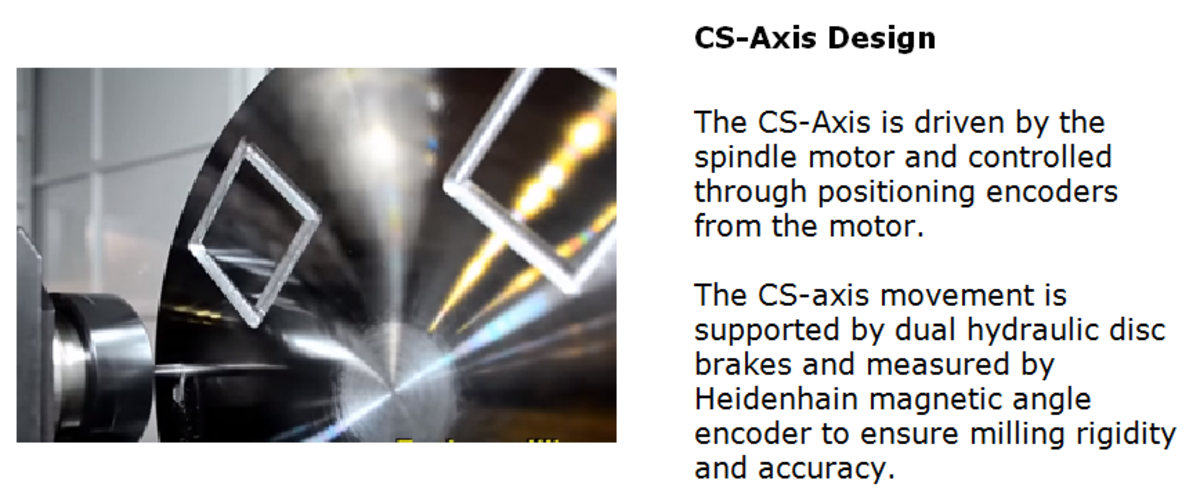

| C-axis system | ||||||||||
| Steady rest | ||||||||||
| Steady rest quill diameter | Ø80 mm | Ø105 mm | ||||||||
| Steady rest capacity | Ø100~Ø300, Ø300~Ø500, Ø500~Ø750 mm | Ø750~Ø950 mm | ||||||||
| Note 1. X-axis and Z-axis actual cutting traverse will change when equipped with different turrets. 2. Spindle speed will change according to different motors. 3. Machine length excludes the length of chip conveyor. 4. Distance between centers will change based on installing different types of tailstocks. 5. Z-axis traverse = actual workpiece length | ||||||||||
