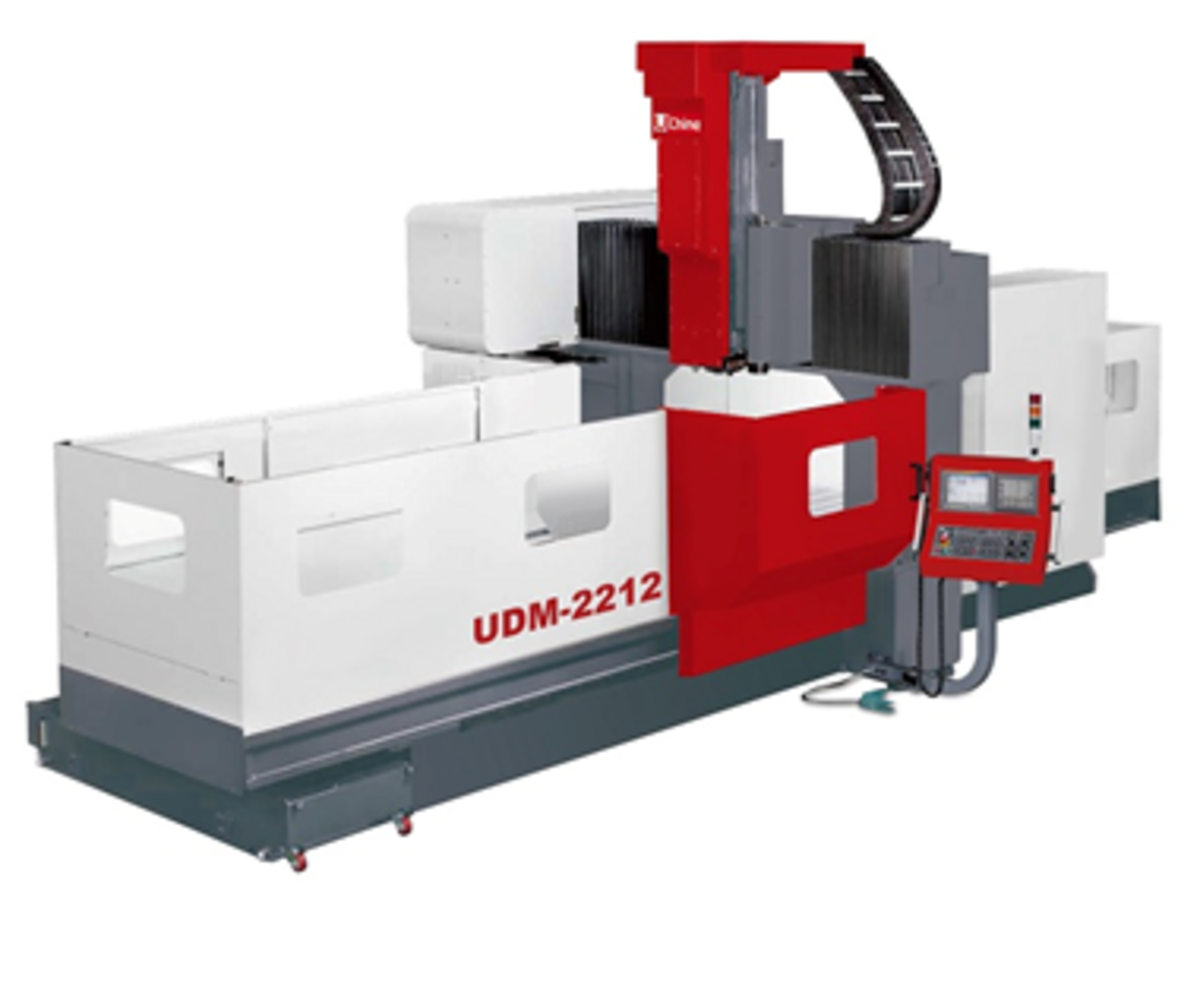

UDM-2212

Download
  • UDM Series Catalogue

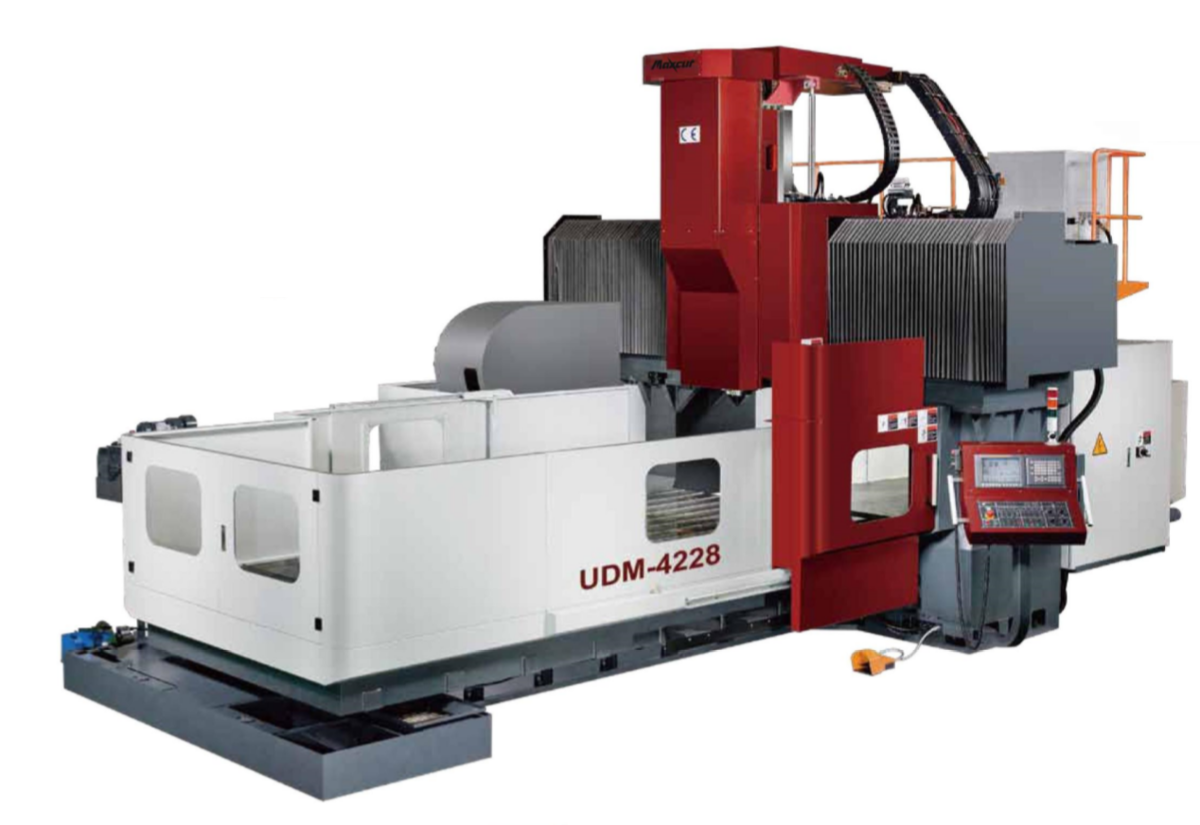

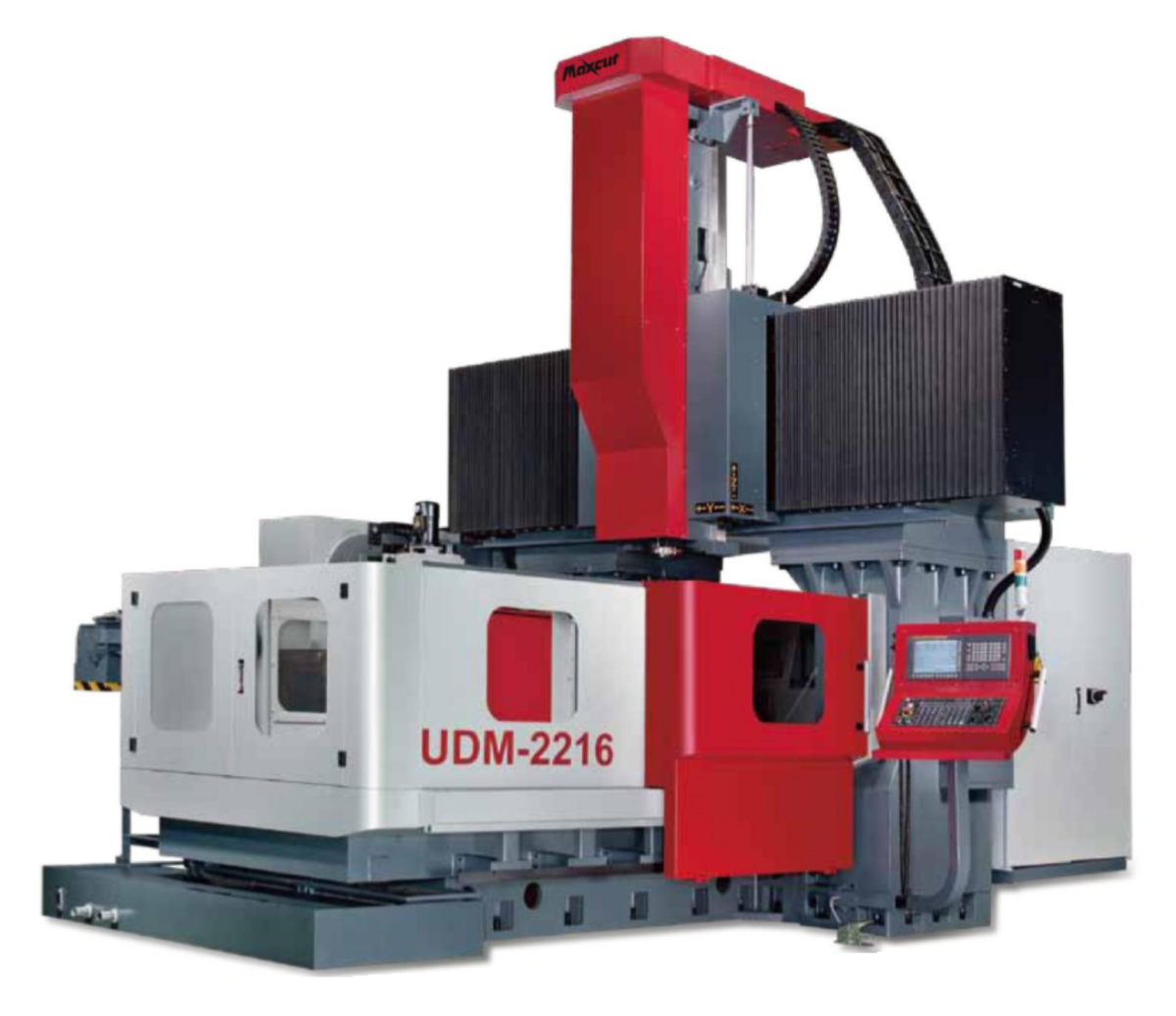

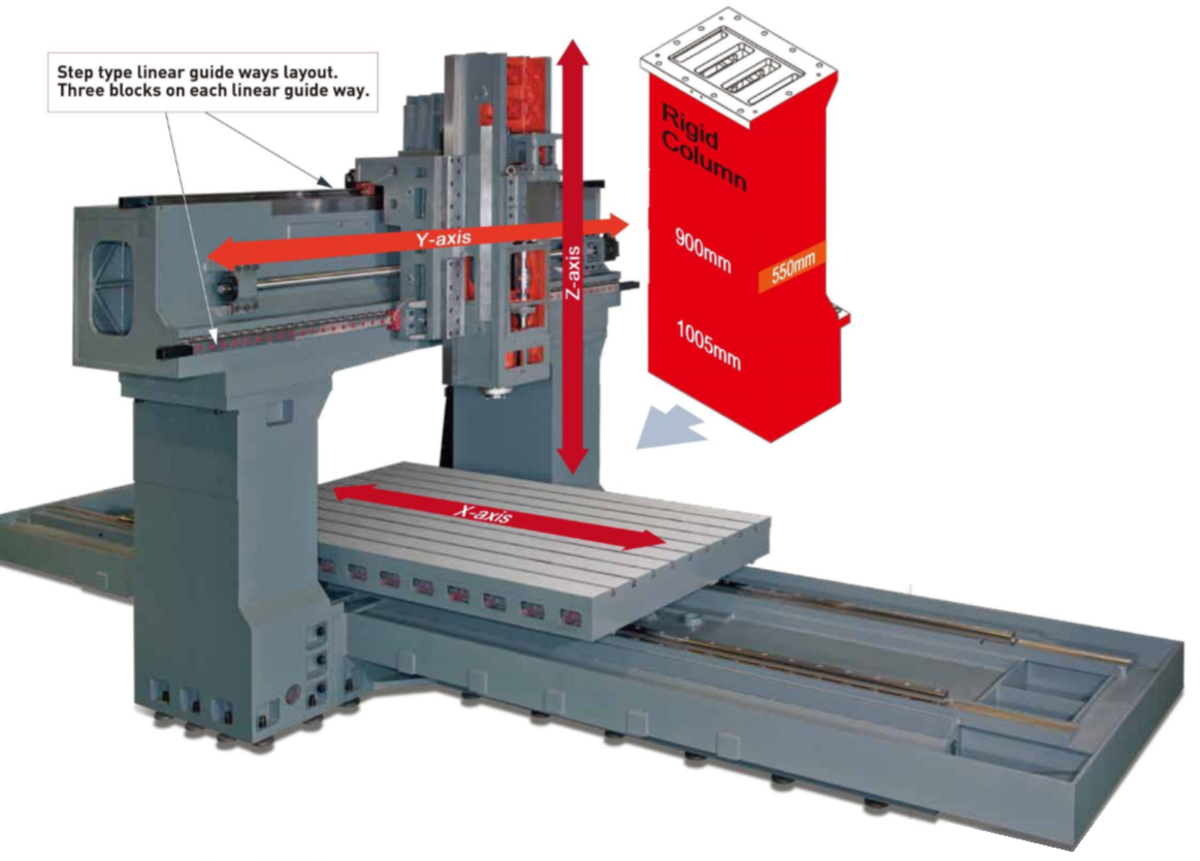

Series Image Series Image Series Image Series Image

STANDARD ACCESSORIES
Glass window type splash guard
Programmable coolant system
Automatic lubrication system
Spindle air blast system
Working lamp
Alarm lamp for abnormal situations
Indication lamp for dwell & end of job
Leveling bolts & pads
Chip auger & chain type chip conveyors
Toolbox with spanners & wrenches
M.P.G
Machine inspection lists
Operation manuals
Controller manuals and circuit diagram
Auto power off
RS-232C terminal interface
Spindle coolant system
Hydraulic system
Heat exchanger
FAGOR Controller

Request Quote on This Model

Select Machine Size/Model Here

Technical Specifications

MODEL UNIT UDM-2212
TABLE Table Size mm 2000x1100
T-Slots mm 22
Maximum Load kg 3500
TRAVEL X Axis mm 2200
Y Axis mm 1200
Z Axis mm 760
SPINDLE Spindle Servo Motor-cont./ 30min. kW 11/15(22/26)
Speed rpm 6000
Taper   7/24 taper NO.50, BT-50
DISTANCES Between Two Columns mm 1300
Spindle Nose to Table Center mm 200~960
FEED RATE Rapid Feed rate X/Y/Z m/min. 20/20/15
Minimum Setting mm/min. 0.001
Cutting Feed rate m/min. 8
ATC No. of Tools pieces 0(24/32/40)
Tool Change Time sec. 8(ARM TYPE)
Max. Tool-Diameter/Length mm Ø125/Ø200(Without Adjacent Tool)/ Length 350
Max. Tool Weight kg 15
COOLANT & LUBRICATION Coolant Tank Volume L 240
Hydraulic Tank Volume L 70
Lubrication Tank Volume L 8
MISCELLANEOUS Power Required kVA 40
Pressurized Air kg/cm² 5~8
Hydraulics Required kg/cm² 70
Machine Weight kg 17000
Controller   FANUC 0iMF (FANUC 31i-B / MELDAS / SIEMENS / HEIDENHAIN)

OPTIONAL ACCESSORIES:

OPTIONAL ACCESSORIES:
8000RPM direct drive spindle(35HP)
X,Y and Z axes with linear scales
Auto. tool length & diameter measurement(TS27R)
CNC rotary table
Oil-feed holder
Oil mist device
Air conditioner for electrical cabinet
FANUC 32i-B(31i-B)Controller
MELDAS (M70,M720,M730) Controller
HEIDENHAIN Controller
12000RPM or 15000RPM direct drive spindle-BBT 40(only for FANUC or MELDAS controller)
Request Quote on This Model
