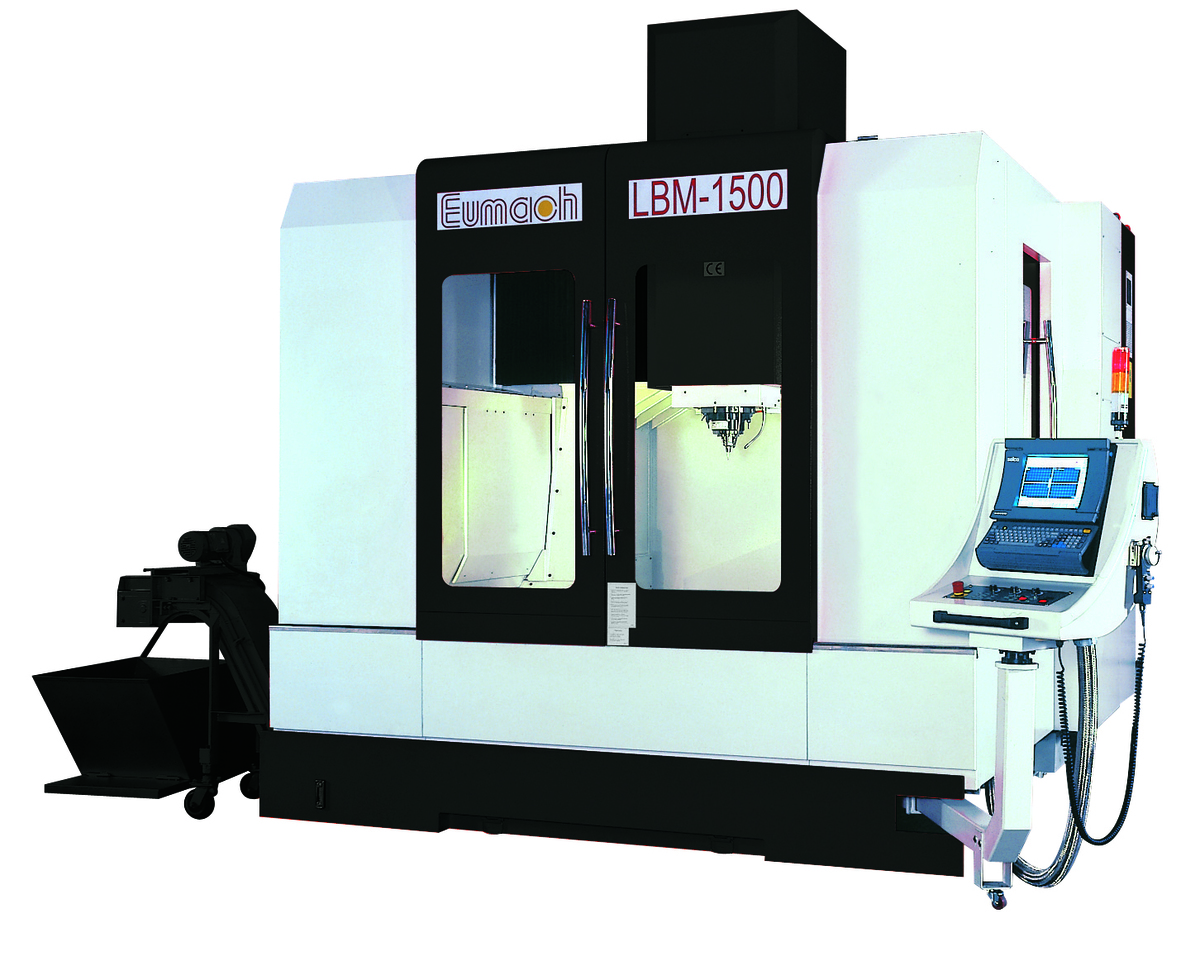

LBM-1500

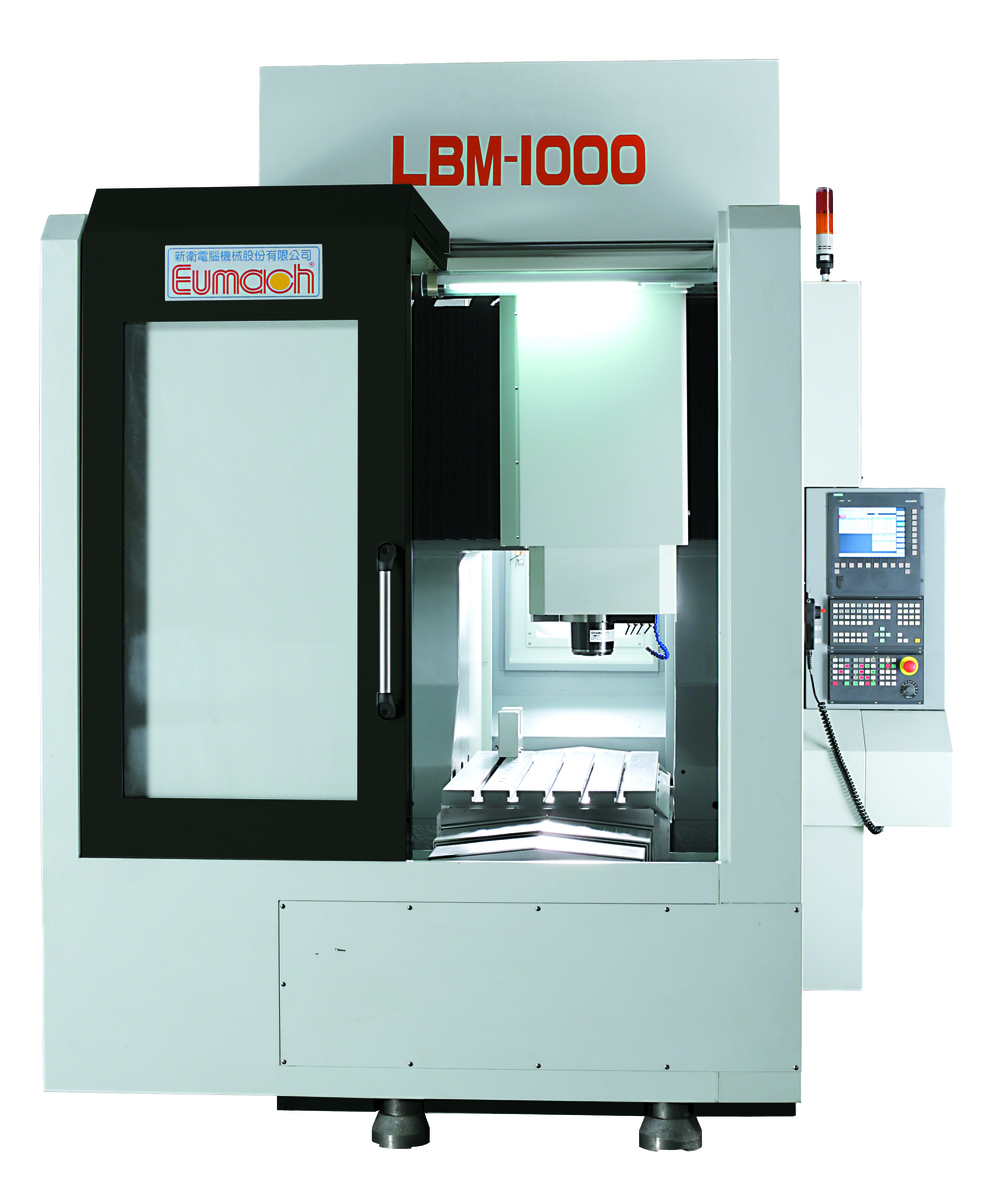

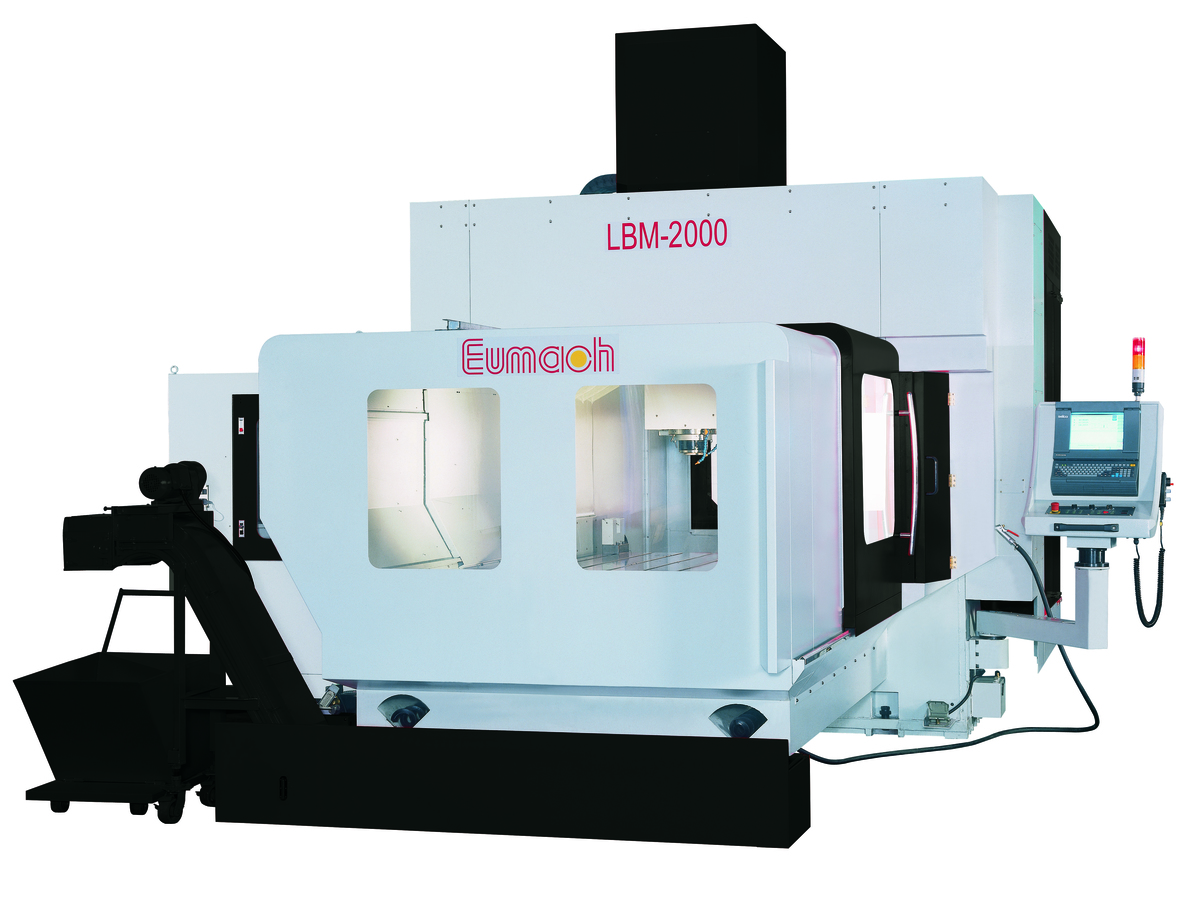

Series Image Series Image Series Image

Bridge type machining centers

Request Quote on This Model

Select Machine Size/Model Here

Specifications

MODEL LBM-1500
Table Overall Size 1600 mm x 1000 mm
T-SLOT 18 mm x 7 x 125 mm
Maximum Loading 3000 kgs
Travel X Axis 1750 mm head left & right
Y Axis 1000 mm table in & out
Z Axis 650 mm head up & down
Distance Between 2 Columns 1750 mm
Spindle To Table Top 200 mm ~ 850 mm (Note)
Spindle: See Page 5 Motor S1:35 KW / 78 Nm
Taper HSK-A63 (BT#40)
Speed 18000 RPM (14000RPM, 20000RPM)
Feedrate Cutting UP TO 20 M / min
Rapid X/Y/Z 30 /30 / 30 M / min
Minimum Setting 0.001mm
Automatic Tool Changer No. Of Tools carousel armless 16 (swing arm 32)
Max. Tool Dia./Length 80 mm / 250 mm
Max. Tool Weight 7 kgs
Coolant & Lubrication Coolant Tank Volume 300 Liters
Pneumatic Required 7 kgf / cm2
Lubrication Tank 4 Liters
Accuracy Positioning  0.005 mm / 300 mm
Repeatability 0.003 mm
Roundness 0.01 mm / 300 mm DIA.
Machine Net Weight 15000 kgs

Standard Accessories :

Standard Accessories :
1. Full guard with roof 2.Armless ATC 3.Coolant system 4.Spindle air blast 5.Auto. lubrication 6.Working lamp 7.Alarm light 8.Levelling Pads & Bolts 9.Adjusting tools & box 10. 15000RPM motor spindle & water cooler
