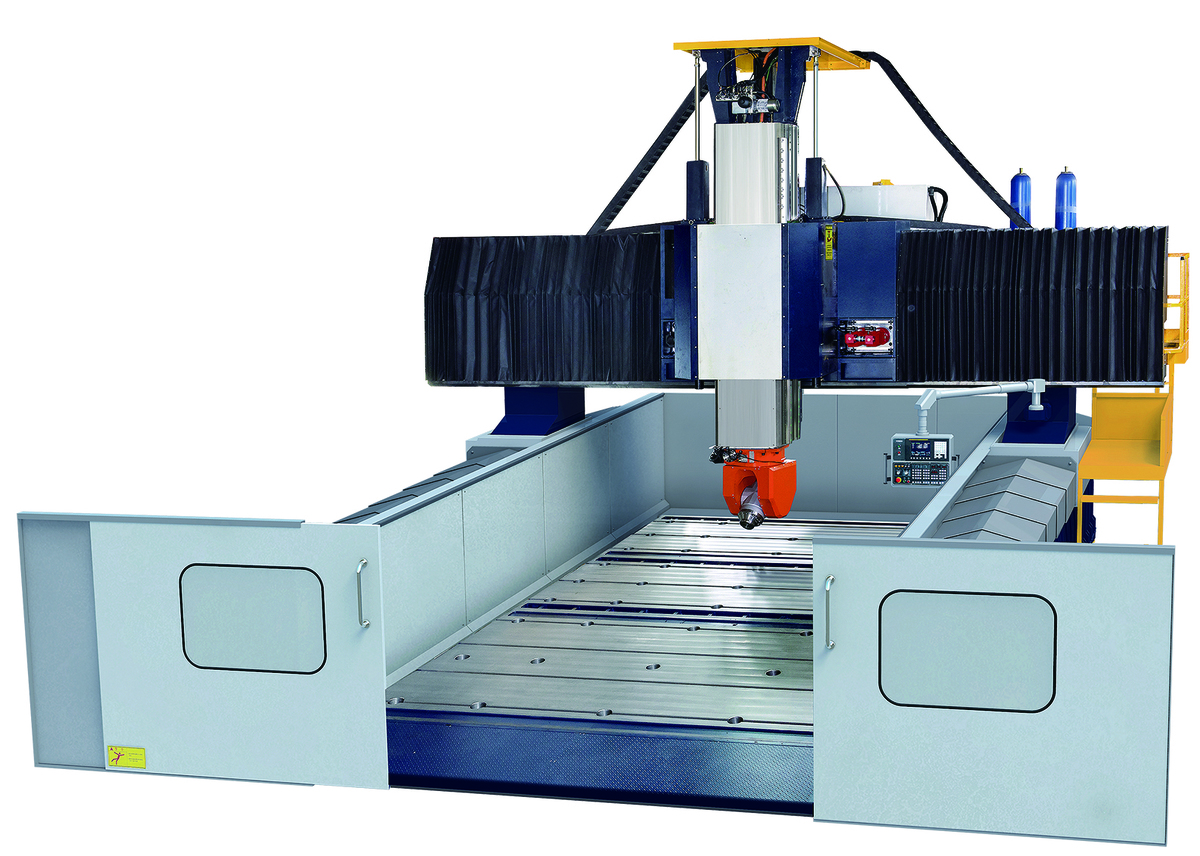

GM-33
GANTRY TYPE MACHINING CENTERS
Request Quote on This Model
Select Machine Size/Model Here
Specifications
| Model | Unit | GM-33 | ||
| Between Columns | mm | 3350 | ||
| Travel | X-Travel | m | 6m ~ 36m Every 1m add | |
| Y-Travel | mm | 2600 | ||
| Z-Travel | mm | 1100 (1400/1500) | ||
| W-Travel | mm | N/A | ||
| Table | Table Wide | mm | 2800 | |
| Table Length | m | Table length = X Travel | ||
| Spindle nose to table | mm | 600 ~ 600 +Z | ||
| Power-speed | kW | 22/26-6000rpm | ||
| X axis rack-pinion | - | - | ||
| Y axis rack-pinion | - | NA | ||
| ATC Capcity | pcs | 32 pcs | ||
| X/Y/Z/W Feed rate G00 | m/min | 15/10/10 | ||
| Machine size | Length | m | 15m~45m Every 1m add | |
| Width | m | 8.3 | ||
| Height | m | 5.4 | ||
| Machine Weight (app.) | ton | 65+5/m | ||
