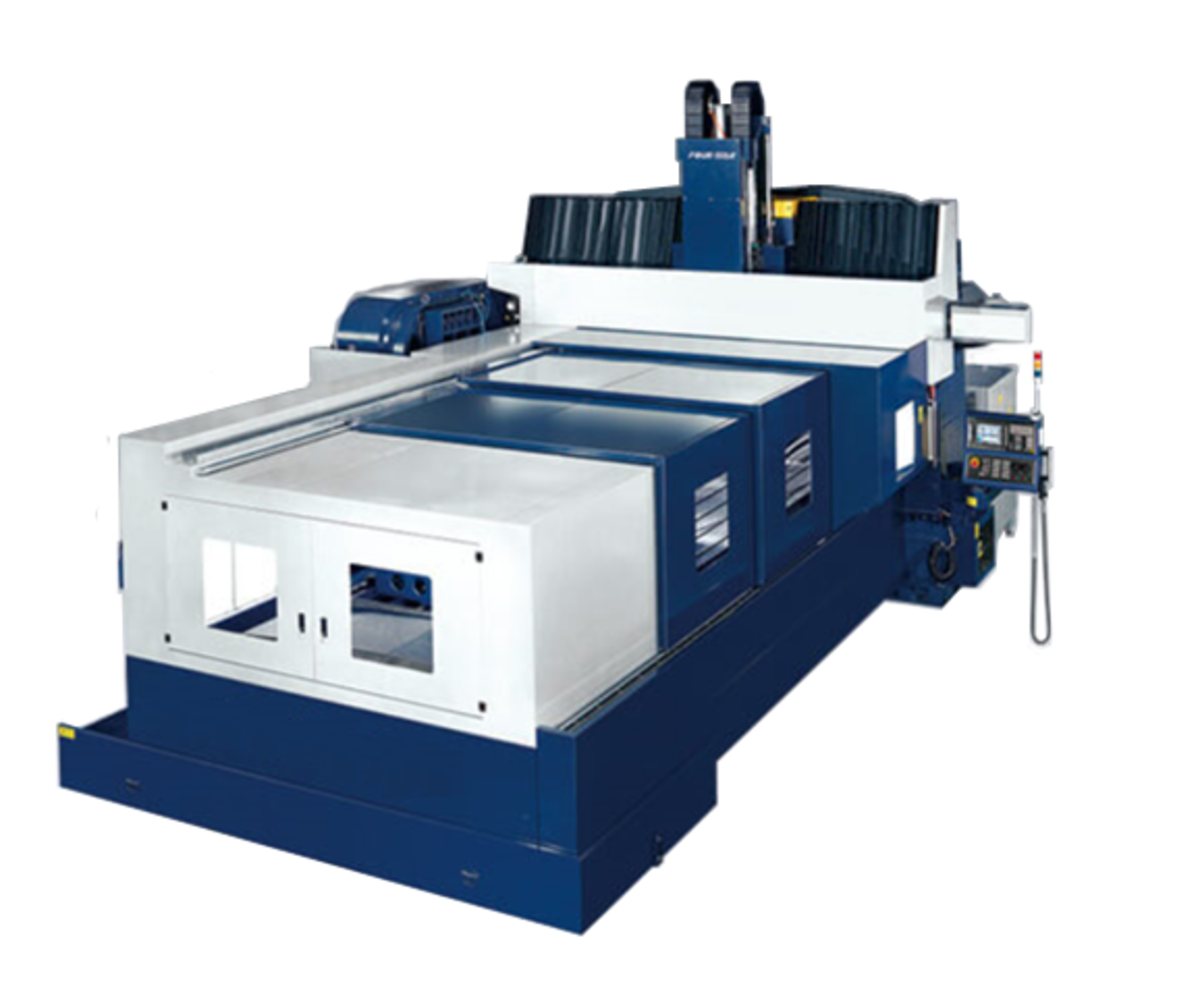

Double Column Machines | FQ Series | FQ-1422

Select Machine Size/Model Here

Item		Unit	FQ-1422
Distance between columns		mm	1400
Table size	Length	mm	2000
Table size	Width	mm	1200
Maximum Table Load		ton	8
T-slot	Width x Pitch x NO	mm	22 x 150 x 7
Travel	X -axis	mm	2200
	Y -axis	mm	1300
	Z -axis	mm	800
Spindle	Nose to table	mm	100 ~ 900
	Speed	rpm	BBT40 - 15000rpm
	Power	kW	20 kW
Feedrate	Cutting	m/min	15
	X axis G00	m/min	25
	Y / Z axis G00	m/min	25
ATC & tool magazine	Capacity / Max Dia	mm	ATC 24pcs / Max. dia Ø 90 ( full tools ) ; Ø 180 ( Adjacent pocket empty )
	Max tool weight / Length	Kg/mm	7Kg / 250mm
	Tool selection		Arm-cam
Power / Pneumatic			60 KVA / 6.5 kg/cm²
Machine size	Length	mm	6680
	Width	mm	3410
	Height	mm	4045
Machine Weight (app.)		ton	20
