FDW-2432

Series Image Series Image

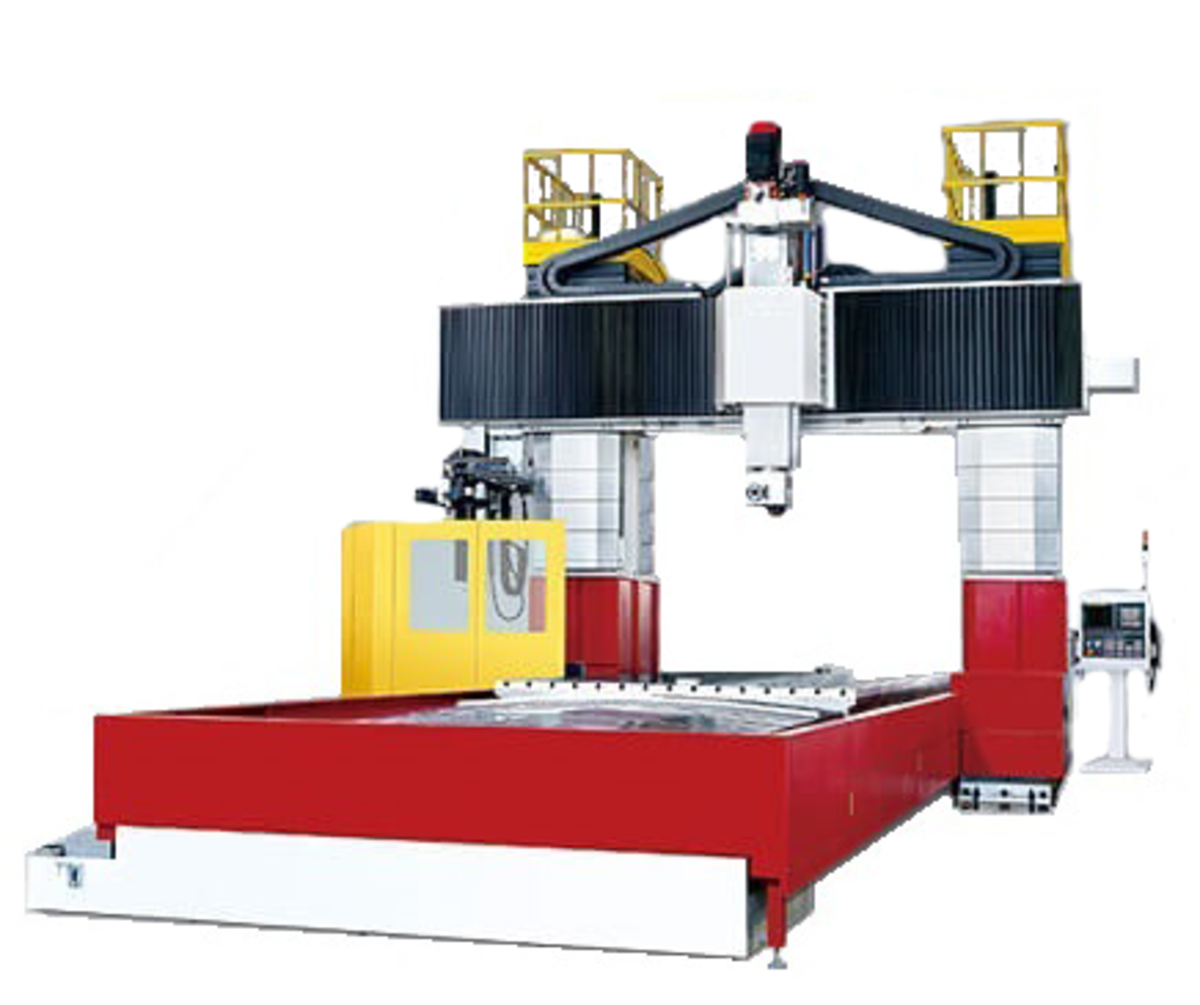

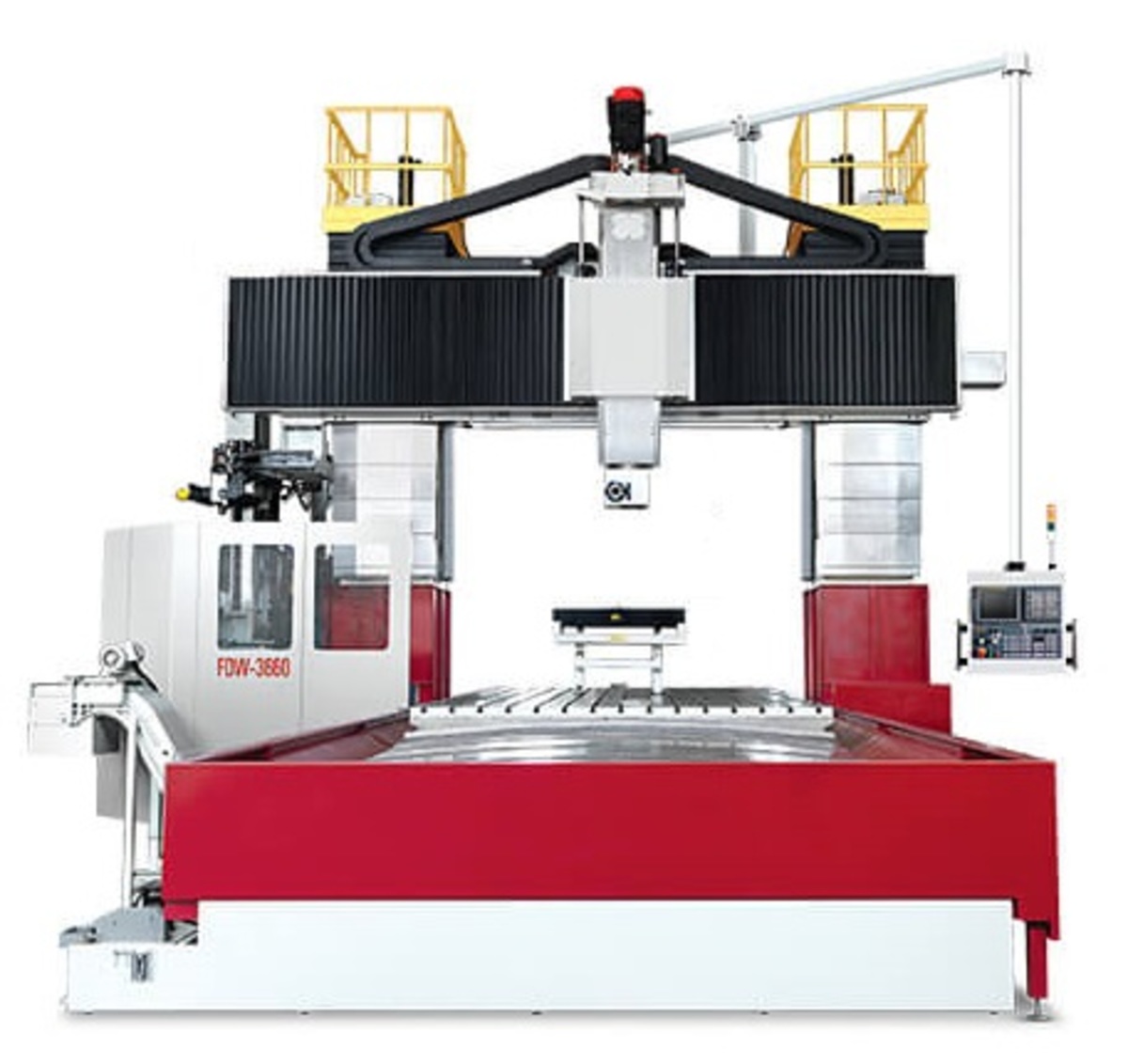

FIXED DOUBLE COLUMN MACHINING CENTERS WITH MOVING-CROSSRAIL (W-TRAVEL)

Request Quote on This Model

Select Machine Size/Model Here

Specifications

ITEM Unit FDW-2432
Model FD- 2432
Distance between columns *1 mm 2450
Table Size Length mm 3000
Width mm 2000
Maximum Table Load ton 18
T-slot Width x Pitch x NO mm 28 x 180 x 11
  Travel X-axis mm 3200
Y-axis mm 2400
Z-axis mm 800 (1100)
W-axis mm 1000 (1500) any position located
Spindle   Nose to table mm 100 ~ 100 + Z + W
Taper / Speed / Power rpm / kW BT50-6000-22/26kW
Feedrate   Cutting m/min 5 ~ 10000
X/ Y/Z/W axis G00 m/min 12/12/12/2
Accuracy mm Positioning ±0.015 / full travel; Repeatability ±0.003
ATC & tool magazine Capacity / Dia mm 32pcs/Max. dia Ø125 (full tools); Ø220 (Adjacent pocket empty)
Max tool weight/ length Kg/mm 20kg / 400mm
Tool selection   Free position take shortest direction / M24 P3.0-45°
Power / Pneumatic   60 ~ 70 KVA / 6.5 kg/ cm2
  Machine size Length m 9.4
Width m 7.3
Height m 7.5 (8.4)
Machine Weight (app.) ton 56

Standard Features FD/FDW

Standard Features FD/FDW
Spindle cooler
Spindle air blast
N2 Counter balance
GTP 2G250 H/L gearbox
Independent auto lubrication system
Program end alarm lamp
Rigid tapping
Electric cabinet heat exchanger
USB/RS232/hinet interface
Coolant system
Twin spirl type chip remover
Metal belt chip conveyor with cart
Cam type ATC 24pcs(FD14~FD24A)
Chain type ATC 32pcs(FD28~FD42, FDW)
Semi-enclousure splash guard(FD18~FD24A)
Open type splash guard (FD28~FD42, FDW)
ATC auto door
Foot switch for tool away
Working lamp
Leveling screw + foundation bolts
Tool kit & Operator’s manual
Air/water cleaning equipment
W axis linear scales (FDW)
