FD-1422

Series Image

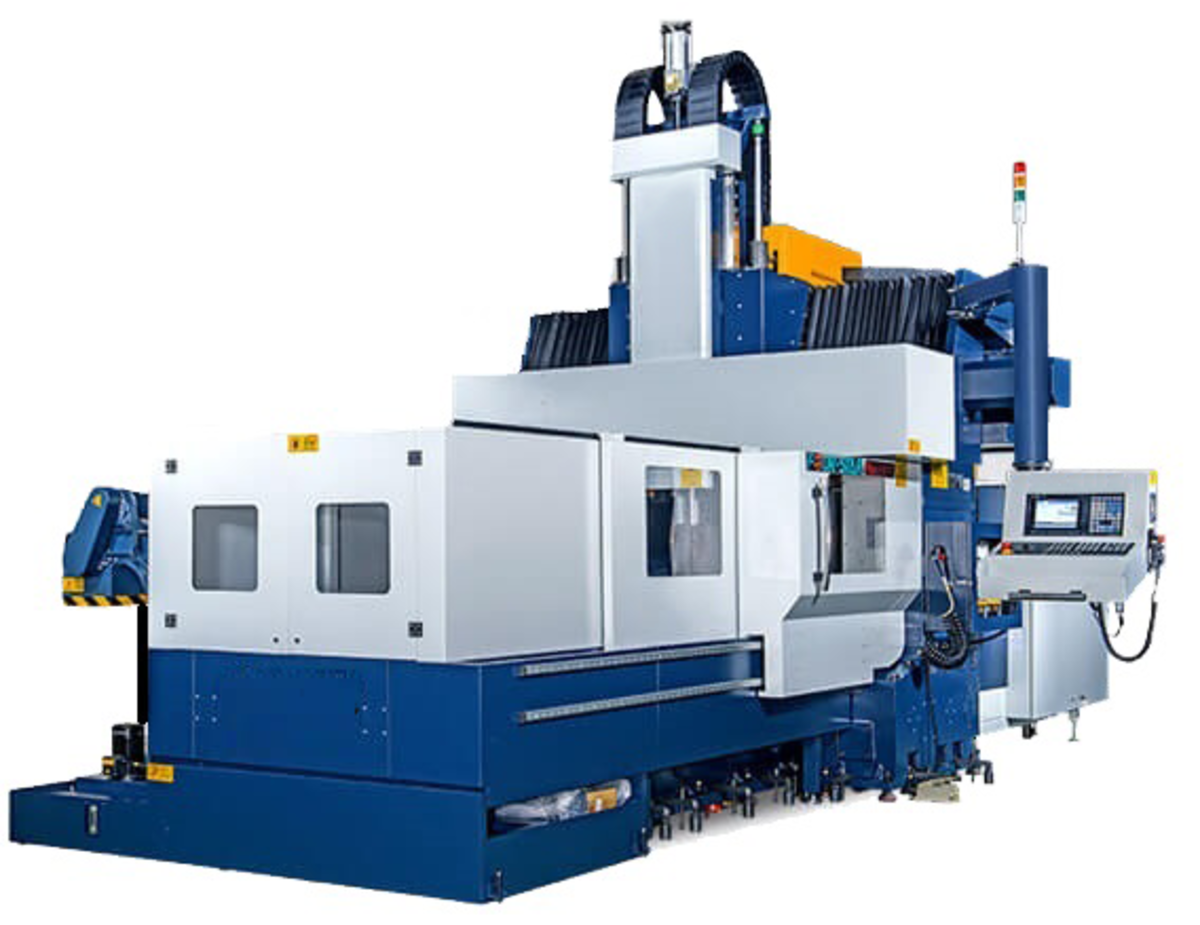

FIXED DOUBLE COLUMN MACHINING CENTERS

Request Quote on This Model

Select Machine Size/Model Here

Specifications

ITEM Unit FD-1422
Model FD- 1422
Distance between columns *1 mm 1400
Table Size Length mm 2000
Width mm 1200
Maximum Table Loadaxis ton 10
T-slot Width x Pitch x NO mm 22 x 150 x 7
  Travel X-axis mm 2200
Y-axis mm 1300
Z-axis mm 800
  Spindle   Nose to table mm 30 ~ 830
Center to Column mm 430
Taper / Speed / Power rpm / kW BT50-6000-22/26kW
  Feedrate   Cutting m/min 20
X axis G00 m/min 24
Y / Z axis G00 m/min 24/20
Accuracy mm Positioning ±0.015 / full travel; Repeatability ±0.003
  ATC & tool magazine Capacity / Dia mm Cam Type ATC 24pcs/Max. dia Ø 110 (full tools); Ø 200 (Adjacent pocket empty)
Max tool weight/ length Kg/mm 18kg / 380mm
Tool selection   Take shortest direction / M24 P3.0-45°
Power / Pneumatic   40 ~ 50 KVA / 6.5 kg/cm2
  Machine size Length m 6.4
Width m 4.00
Height m 4.10
Machine Weight (app.) ton 20

Standard Features FD/FDW

Standard Features FD/FDW
Spindle cooler
Spindle air blast
N2 Counter balance
GTP 2G250 H/L gearbox
Independent auto lubrication system
Program end alarm lamp
Rigid tapping
Electric cabinet heat exchanger
USB/RS232/hinet interface
Coolant system
Twin spirl type chip remover
Metal belt chip conveyor with cart
Cam type ATC 24pcs(FD14~FD24A)
Chain type ATC 32pcs(FD28~FD42, FDW)
Semi-enclousure splash guard(FD18~FD24A)
Open type splash guard (FD28~FD42, FDW)
ATC auto door
Foot switch for tool away
Working lamp
Leveling screw + foundation bolts
Tool kit & Operator’s manual
Air/water cleaning equipment
W axis linear scales (FDW)
