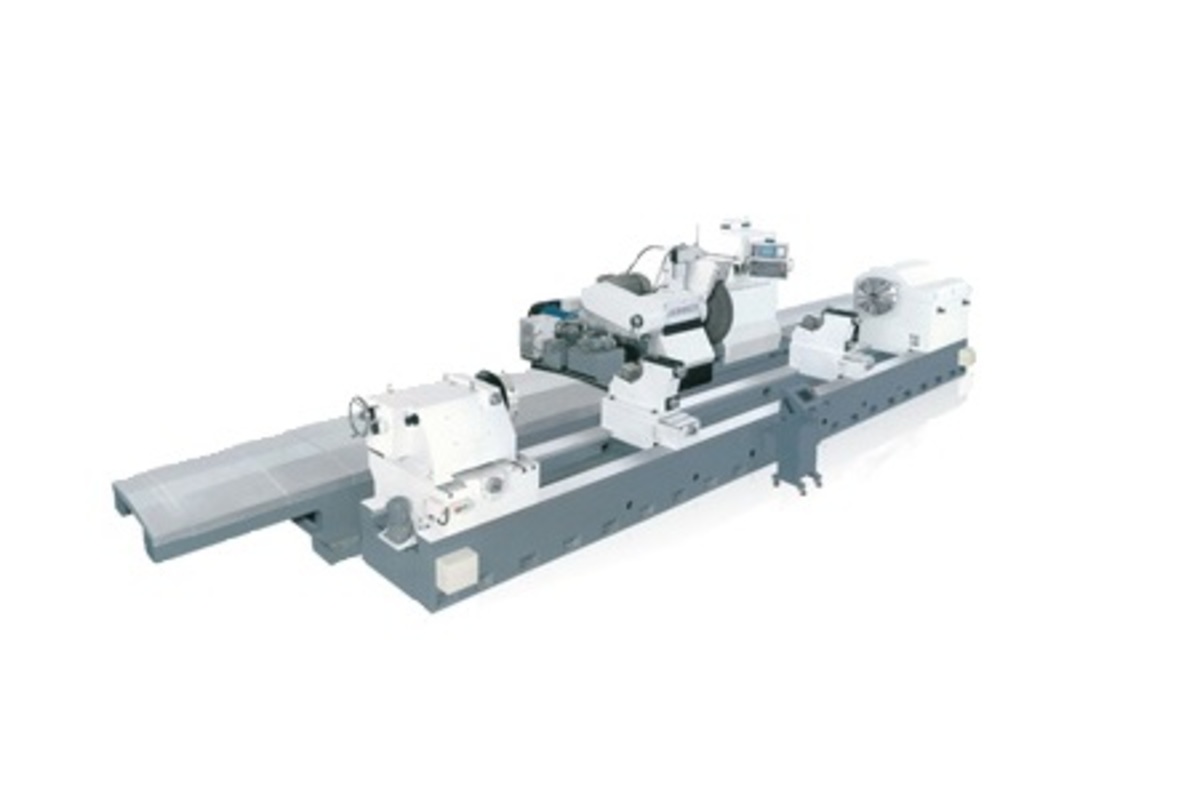

H130
Request Quote on This Model
Select Machine Size/Model Here
Specifications
| ITEM | MODEL | H130 | |
| Working Capacity | Max. swing over table | mm | Ø1300 |
| Max. distance between c.c | M | 4,5,6,7,8 | |
| Max. weight with supports | Kg | 15000 | |
| Max. O.D ground | mm | Ø1300 | |
| Rang of grinding dia. | mm | 80~1300 | |
| Max. dia of crown | mm | By program | |
| Wheelhead & Carriage (x axis) | Wheel size (O.D. x width x Bore) | mm | Ø910xØ304.8x80 |
| Type of lubricating system | - | Hydrostatic & dynamic system | |
| Rotating speed of wheel | R.P.M | 300~1200 | |
| Max. cross feed rate | mm/min | 3000mm/min | |
| Cross feed per pulse | mm/p | 0.001 | |
| Table (Z axis) | Travel of table or head (z axis) | mm | +200mm Center Distance +8” |
| Travel speed of table | mm/min | 25~6000mm/min | |
| Type of lubricating system | - | Hydrostatic & dynamic system | |
| Support | Roll neck diameter range | mm | 90~400 (350-600 option) |
| Workhead & Tailstock | Rotation speed of work head | mm | 6~50 |
| Size of center | - | PT#100 | |
| Moving speed of tailstock | mm/min | 2000 | |
| Stroke of quill | mm | 200mm | |
| Power rating | Grind wheel motor | HP | 50HP(40HPx6P) |
| Workhead motor | HP | 40HP(30HPx6P) | |
| Table traverse motor (z axis) | HP | 22NM | |
| Tailstock move motor | HP | 1HPx6P | |
| Cross feed motor (x axis) | HP | 12NM | |
| Lubricating system | HP | 2HP | |
| Coolant system | L | 2000 Liter x 2 HP | |
Accessories
| Standard Accessories | Optional Accessories |
| Grinding Wheel | Heavy Duty Support |
| Flange | Center grinding device |
| Dresser | Carrier |
| Flange Puller | Universal joint |
| Gage | 4-jaw chuck |
| Splash Guard | Live Center |
| Filter | Spare flange |
| Center | Spare grinding wheel |
| Tool Box | Rotating spindle type tailstock |
| Support | Portable Balancer |
| Sheet – Metal Covers | Auto balancing system |
| Static balance device and arbor | Roll Caliper |
| Dust collector | |
| Linear Encoder | |
| Special curve grinding program |
