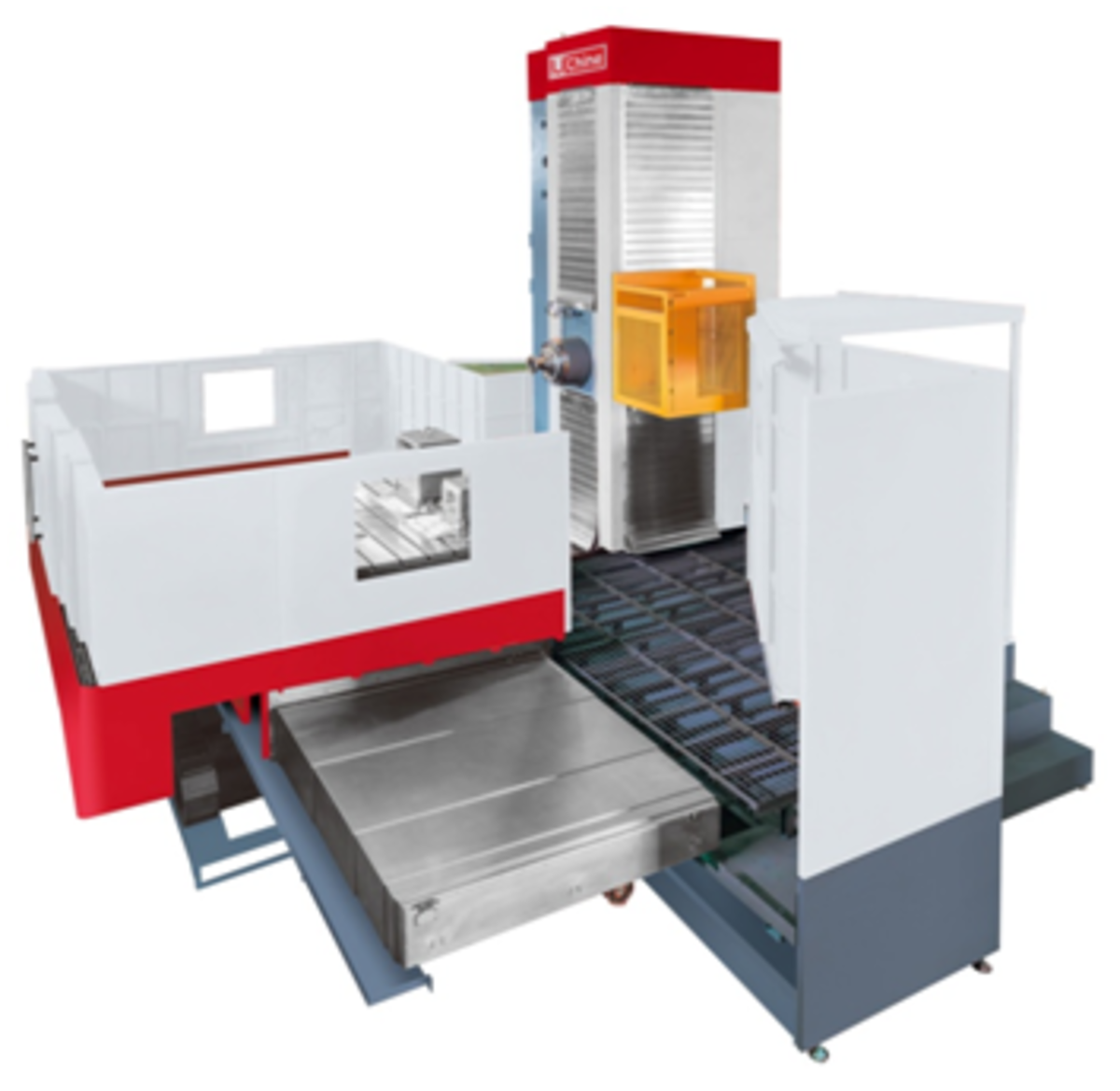

UBM-13032RL
STANDARD ACCESSORIES:
Linear scales on X,Y,Z axes, Spindle oil cooler
Automatic power off, Hydraulic system
Coolant system, Lubricator system
Alarm lamp, Work lamp, M.P.G.
RS232 interface, Heat exchanger
Chip conveyor and cart, Leveling bolts and pads
Controller manuals and circuit diagram
Operation manuals, Machine inspection lists
Splash guards (around the table), Tool box
FAGOR controls
ATC: 40 tools
OPTIONAL ACCESSORIES:
Choice of Various magazines (60 / 90 tools)
Oil mist device
FANUC controls
Various auxiliary work tables
Air conditioner for electrical cabinet
Extension sleeve250mm/300mm
(for UBM-110 series)
Coolant through spindle
Choice of various sizes of tables
a1600x1800
(For UBM-110xxRT, 110xxR, 130xxRT series)
b.2000x2000 / 2000x3000 /
2200x2400(For UBM-1300xxR series)
c.2500x3000 table with 40tons of loading capacity(UBM-130xxRL, 1500xxRL series)
Manual 90 Deg. angular milling head
Face milling head
30/37kW spindle motor and ZF-300 gearbox(For UBM-130, 150 series)
Request Quote on This Model
Select Machine Size/Model Here
Technical Specifications
| MODEL | UNIT | UBM-13032RL | |
| TABLE | Table Size | mm | 2200x2500 x0.001° (2500x3000 x0.001°) |
| T-Slots | mm | 28x11(28x13) | |
| Maximum Load | kg | 30000(40000) | |
| TRAVEL | X Axis | mm | 3200 |
| Y Axis | mm | 2500(3000) | |
| Z Axis | mm | 2000(2500) | |
| W Axis | mm | 900 | |
| SPINDLE | Diameter | mm | Ø 130 |
| Speed | rpm | 10~2000(2500) | |
| Taper | 7/24 taper, ISO.50, BT-50 | ||
| DISTANCES | Spindle Center to Table | mm | 0~2500(0~3000) |
| Spindle Nose to Table Center | mm | -50~2850(3350){50~2950(3450)} | |
| Height from ground to table surface | mm | 1520 | |
| FEED RATE | Rapid Feed rate X/Y/Z | m/min | 8/10/10(6/10/10) |
| Rapid Feed rate W | m/min | 6 | |
| Minimum Setting | mm/min | 0.001 | |
| Cutting Feed Rate | mm/min | 1~5000 | |
| MOTOR | Spindle Servo Motor -cont./ 30min. | kW | 22/26(30/37) |
| Axis X / Y / Z / W / B | kW | 9/7/9/4/9 | |
| Lubricator Motor | kW | 0.15 | |
| Hydraulic Pump | kW | 2.25 | |
| Coolant Pump | kW | 1.17 | |
| Chip Conveyor | kW | 0.2 | |
| Oil Cooling Pump | kW | 0.75 | |
| ATC | No. of Tools | pieces | 40(60) |
| Tool Selection | Absolute | ||
| Tool Change Time | Sec. | 15 | |
| Max. Tool-Diameter/Length | mm | Ø 125/ Ø 250(Without Adjacent Tool)/ Length 400 | |
| Max. Tool Weight | kg | 25 | |
| COOLANT & LUBRICATION | Coolant Tank Volume | L | 400 |
| Hydraulic Tank Volume | L | 80 | |
| Lubrication Tank Volume | L | 8 | |
| MISCELLANEOUS | Power Required | kVA | 65 |
| Pressurized Air | kg/cm² | 6 | |
| Machine Weight (Approx.) | kg | 59000 | |
