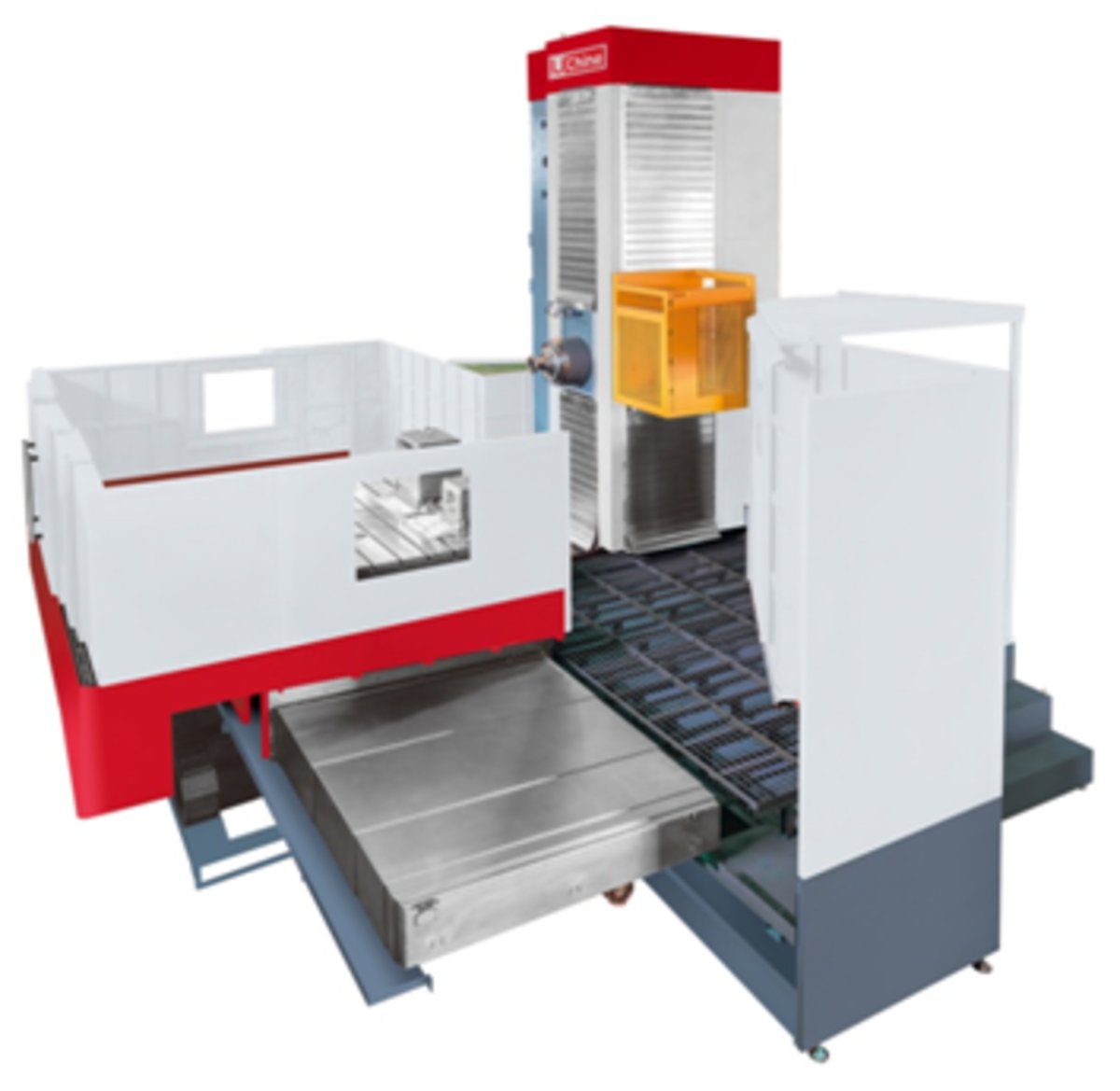

UBM-11020R

Series Image

STANDARD ACCESSORIES:
Linear scales on X,Y,Z axes, Spindle oil cooler
Automatic power off, Hydraulic system
Coolant system, Lubricator system
Alarm lamp, Work lamp, M.P.G.
RS232 interface, Heat exchanger
Chip conveyor and cart, Leveling bolts and pads
Controller manuals and circuit diagram
Operation manuals, Machine inspection lists
Splash guards (around the table), Tool box
FAGOR controls, ATC: 40 tools

OPTIONAL ACCESSORIES:
Choice of Various magazines (60 / 90 tools)
Oil mist device, Choice of various controllers
FANUC controls, Various auxiliary work tables
Air conditioner for electrical cabinet
Extension sleeve250mm/300mm (for UBM-110 series)
Coolant through spindle,
Choice of various sizes of tables
a1600x1800
(For UBM-110xxRT, 110xxR, 130xxRT series)
b.2000x2000 / 2000x3000 /
2200x2400(For UBM-1300xxR series)
c.2500x3000 table with 40tons of loading capacity(UBM-130xxRL, 1500xxRL series)
Manual 90 Deg. angular milling head
Face milling head
30/37kW spindle motor and ZF-300 gearbox(For UBM-130, 150 series)

Request Quote on This Model

Select Machine Size/Model Here

Technical Specifications

MODEL UNIT UBM-11020R
TABLE Table Size mm 1400x1600 x0.001°
T-Slots mm 24x7
Maximum Load kg 8000
TRAVEL X Axis mm 2000
Y Axis mm 2000(2500)
Z Axis mm 1700
W Axis mm 550
SPINDLE Diameter mm Ø 110
Speed rpm 10~2500
Taper   7/24 taper, ISO.50, BT-50
DISTANCES Spindle Center to Table mm 0~2000(2500)
Spindle Nose to Table Center mm 0~2250
Height from ground to table surface mm 1250
FEED RATE Rapid Feed rate X/Y/Z m/min 10
Rapid Feed rate W m/min 10
Minimum Setting mm/min 0.001
Cutting Feed Rate mm/min 1~5000
MOTOR Spindle Servo Motor-cont./ 30min. kW 15/18.5 (22/26)
Axis X / Y / Z / W / B kW  7/7/7/4/7
Lubricator Motor kW 0.15
Hydraulic Pump kW 2.25
Coolant Pump kW 1.17
Chip Conveyor kW 0.2
Oil Cooling Pump kW 0.75
ATC No. of Tools pieces 40(60)
Tool Selection   Absolute
Tool Change Time Sec. 15
Max. Tool-Diameter/Length mm Ø 125/ Ø 250(Without Adjacent Tool)/ Length 400
Max. Tool Weight kg 25
COOLANT & LUBRICATION Coolant Tank Volume L 400
Hydraulic Tank Volume L 80
Lubrication Tank Volume L 8
MISCELLANEOUS Power Required kVA 55
Pressurized Air kg/cm² 6
Machine Weight (Approx.) kg 31500
