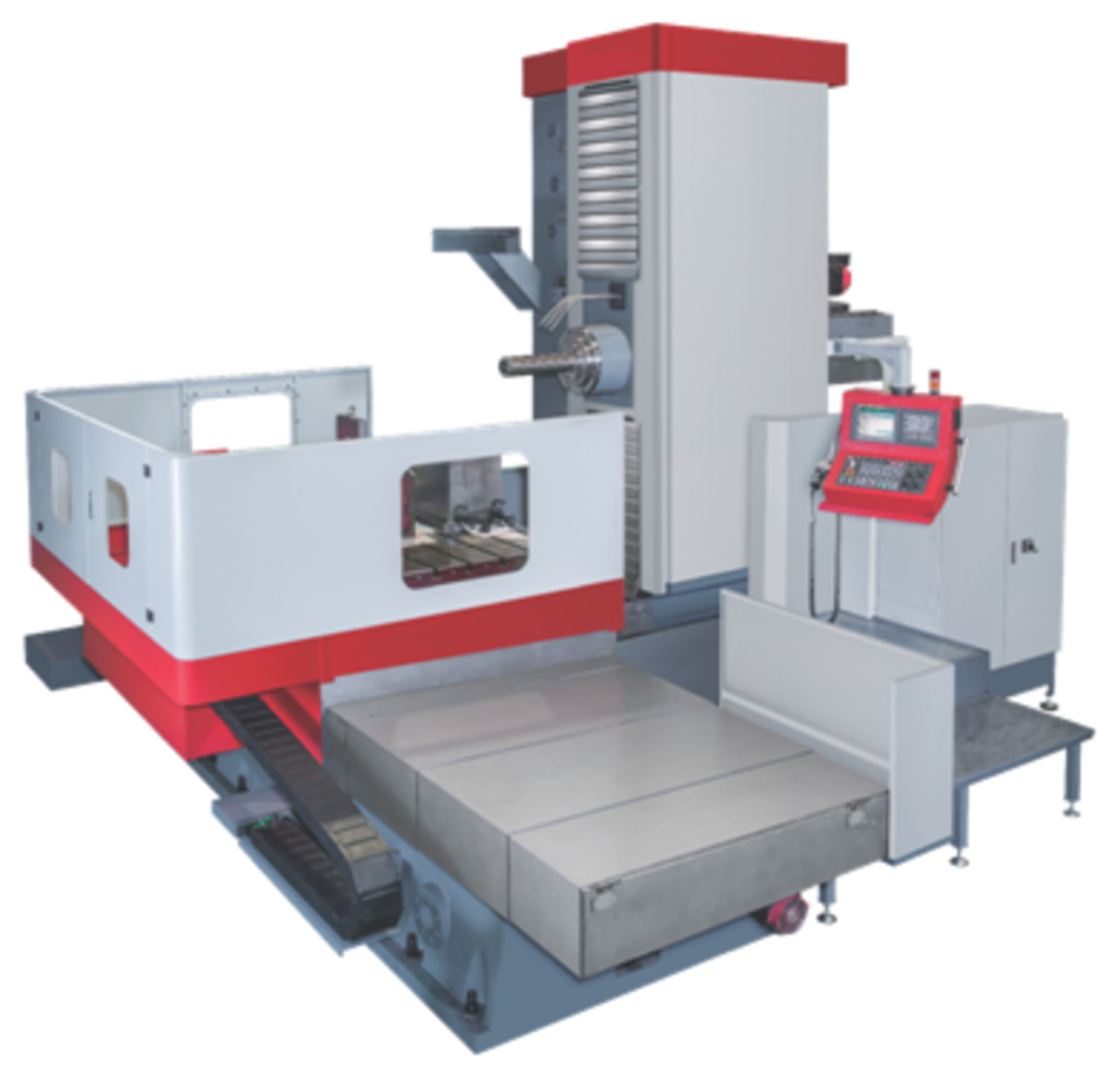

UBM-11020IS
STANDARD ACCESSORIES:
Linear scales on X,Y,Z axes, Spindle oil cooler
Automatic power off , Hydraulic system
Coolant system, Lubricator system
Alarm lamp, Work lamp
M.P.G., RS232 interface
Heat exchanger, Chip conveyor and cart
Leveling bolts and pads, Controller manuals and circuit diagram
Operation manuals, Machine inspection lists
Splash guards (around the table), Tool box
FAGOR controls, ATC: 40 tools
OPTIONAL ACCESSORIES:
ATC: 60 tools, Oil mist device
FANUC controls, Various auxiliary work tables
Air conditioner for electrical cabinet, Coolant through spindle
Extension sleeve250mm/300mm
1800x1600x0.001Deg. 10 ton rotary table
Manual 90Deg. angular milling head
Simultaneously controlled rotary table
Request Quote on This Model
Select Machine Size/Model Here
Specifications
| MODEL | UNIT | UBM-11020IS | |
| TABLE | Table Size | mm | 1250x1250x360D |
| T-Slots | mm | 22x7 | |
| Maximum Load | kg | 5000 | |
| TRAVEL | X Axis | mm | 2000 |
| Y Axis | mm | 1500(1800) | |
| Z Axis | mm | 1400 | |
| W Axis | mm | 400(500) | |
| SPINDLE | Diameter | mm | Ø 110 |
| Speed | rpm | 10~2500(3000) | |
| Taper | 7/24 taper, ISO.50, BT-50 | ||
| DISTANCES | Spindle Center to Table | mm | 0~1500(0~1800) |
| Spindle Nose to Table Center | mm | 90~1890(-10~1890) | |
| Height from ground to table surface | mm | 1350 | |
| FEED RATE | Rapid Feed rate X/Y/Z | m/min | 12 |
| Rapid Feed rate W | m/min | 10 | |
| Minimum Setting | mm/min | 0.001 | |
| Cutting Feed Rate | mm/min | 1~5000 | |
| MOTOR | Spindle Servo Motor -cont./ 30min. | kW | 15/18.5(22/26) |
| Axis X / Y / Z / W / B | kW | 4/4/4/4/4 | |
| Lubricator Motor | kW | 0.15 | |
| Hydraulic Pump | kW | 2.25 | |
| Coolant Pump | kW | 1.17 | |
| Chip Conveyor | kW | 0.2 | |
| Oil Cooling Pump | kW | 0.75 | |
| ATC | No. of Tools | pieces | 40(60) |
| Tool Selection | Absolute | ||
| Tool Change Time | Sec. | 15 | |
| Max. Tool-Diameter/Length | mm | Ø 125/ Ø 250(Without Adjacent Tool)/ Length 400 | |
| Max. Tool Weight | kg | 25 | |
| COOLANT & LUBRICATION | Coolant Tank Volume | L | 400 |
| Hydraulic Tank Volume | L | 80 | |
| Lubrication Tank Volume | L | 8 | |
| MISCELLANEOUS | Power Required | kVA | 45 |
| Pressurized Air | kg/cm² | 6 | |
| Machine Weight (Approx.) | kg | 25000 | |
