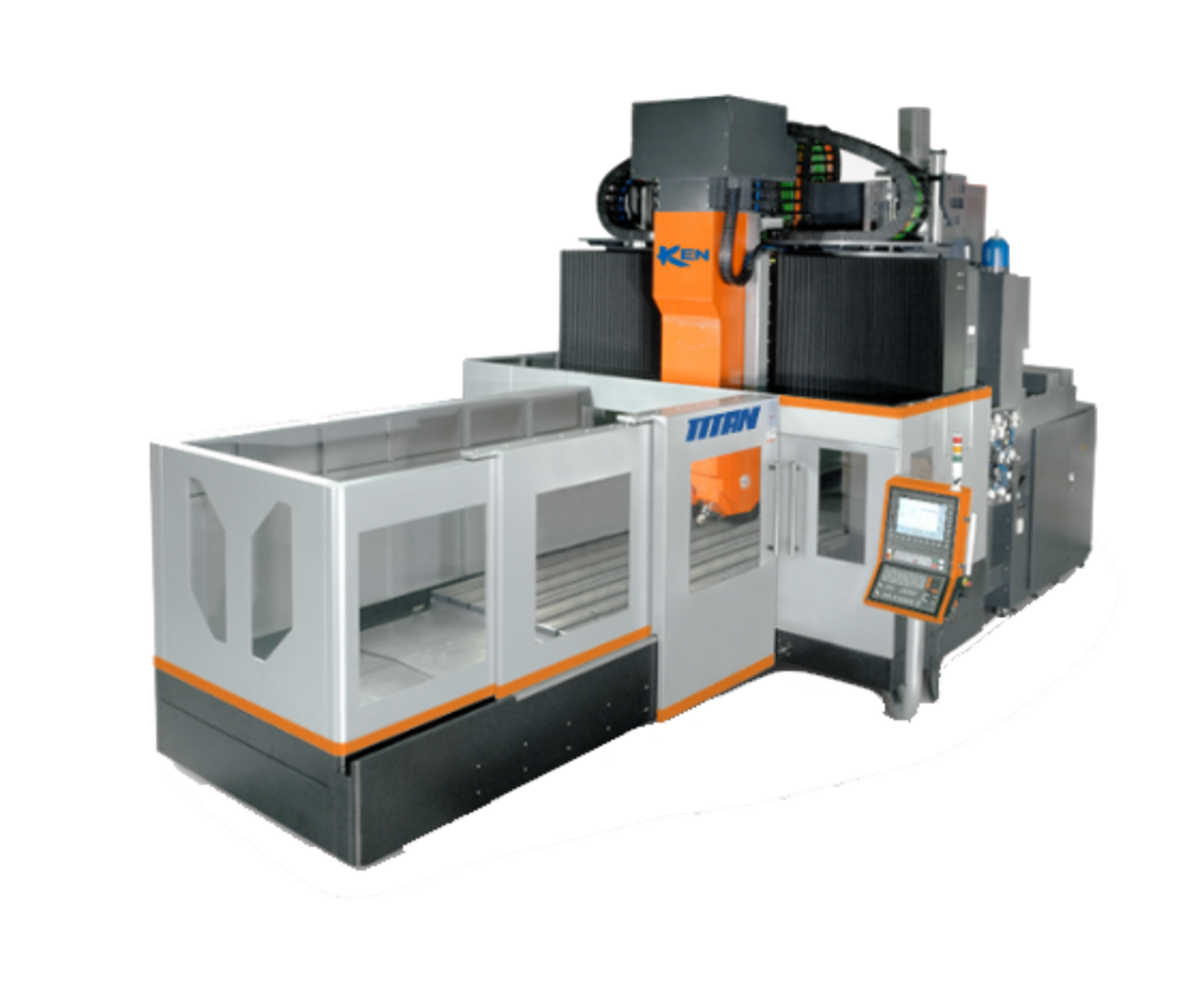

Titan - Horizontal / Vertical 5-Axis Machining Center

Z-axis motion is controlled by a traversable crossbeam with vertical up and down movement. The spindle is mounted on the ram (W-axis), and the ram moves up and down depending on the size of the workpiece, and is then clamped into any position. Therefore the spindle (Z-axis) movement is in the same direction as the machine crossbeam movement and precision machining quality is ensured along the whole of the Z-axis travel whether the cutting tool is close or far from the worktable. Additionally, the vertical and horizontal double-frame structure design increases rigidity, reduces vibrations, and provides machining stability.
