Rhino Series Horizontal 5-Axis Machining Center

Download
  • KEN Rhino Series Catalogue

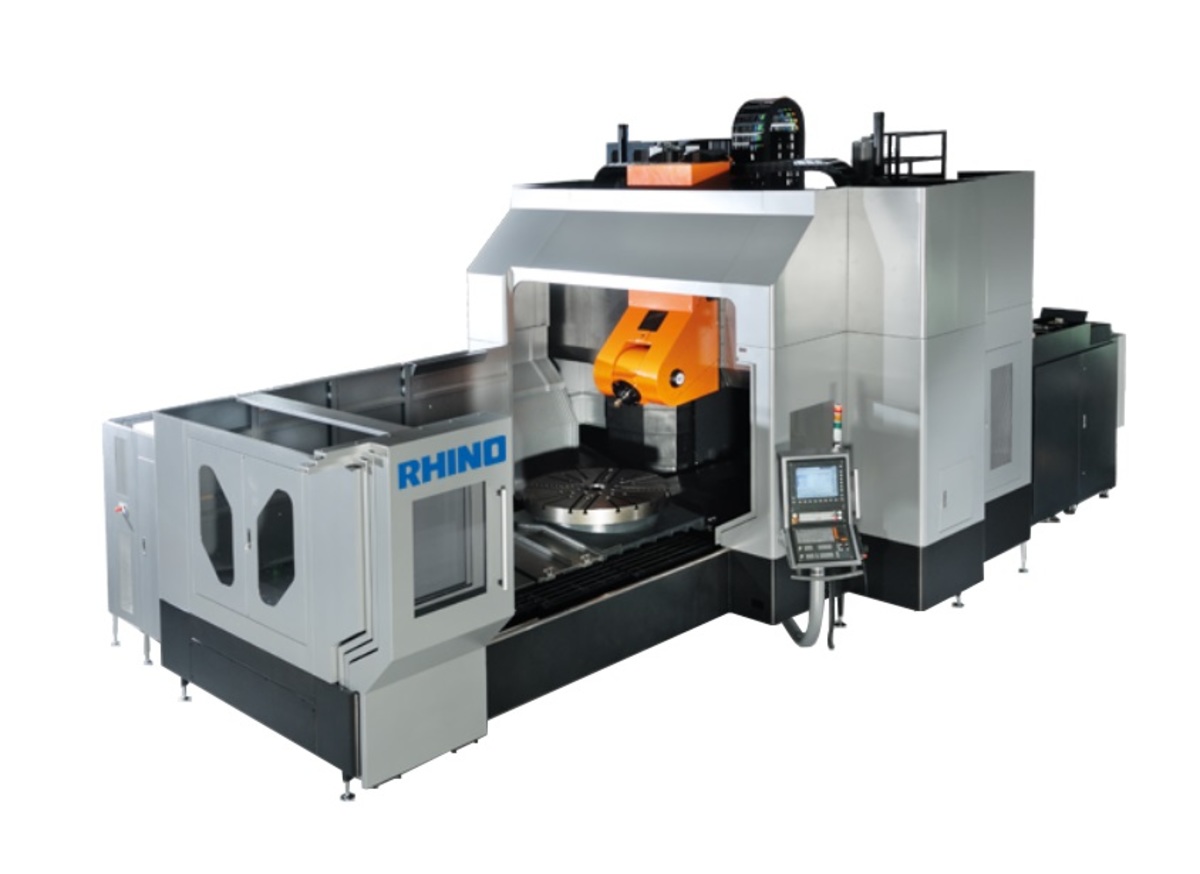

Product Image

Z-axis motion is controlled by a traversable crossbeam with vertical up and down movement. The spindle (Z-axis) movement is in the same direction as the machine crossbeam movement and precision machining quality is ensured along the whole of the Z-axis travel whether the cutting tool is close or far from the worktable. Additionally, the vertical and horizontal double-frame structure design increases rigidity, reduces vibrations, and provides machining stability

Request Quote on This Model

Specifications

Model Unit Rhino-1250 Rhino-1700 Rhino-2200
Travel
X-Axis (Spindle Head Travel Right/Left) mm 2200
Y-Axis (Spindle Head Travel Up/Down) mm 2000
Z-Axis (Table Forward/Backward) mm 1400
Distance between (B-Axis= +0°) Spindle End and Table Center (X-Axis at Home) mm 1600
Distance between B-Axis Rotation Center and Table Center (X-Axis at -End) mm 1607
Distance between Spindle End and Table Center (B-Axis = +90°)(X-Axis at Home) mm 1292
Distance between B-Axis Rotation Center and Table Top Face (B-Axis = +0°)(Z-Axis at Home) mm 1071.5
Distance between Spindle End and Table Top Face (B-Axis = +90°)(Z-Axis at Home) mm 1386.5
Rotary Table (B-Axis)
Rotary Table Dimensions mm Ø1250 Ø1700 Ø2200
Max. Workpiece Diameter mm Ø2000 Ø2200 Ø2400
T-Slot Size mm 22
Rotary Table Minimum Scale deg 0.001
Rotating Angle (Continuous) deg 360°
Rotating Speed rpm 20
Rotating Speed for Vertical Lathe rpm 300
Max. Table Load for Vertical Lathe kg 1500
Rated Power Kw 45
Motor Torque S1-100% (S6-40%) Nm 4000(5200)
Brake Torque (Hydraulic) Nm 10000
Feed Rate
X/Y/Z Axis Rapid Feed Rate m/min 50/50/50
Automatic Tool Changer BT-50
Tool Magazine Capacity pc 40
Max. Tool Length mm 250
Max. Tool Dimensions mm Ø100
Max. Tool Weight per Piece kg 12

Swing Milling Head (Gear type Continuous head)
