Maxcut VTC-5225

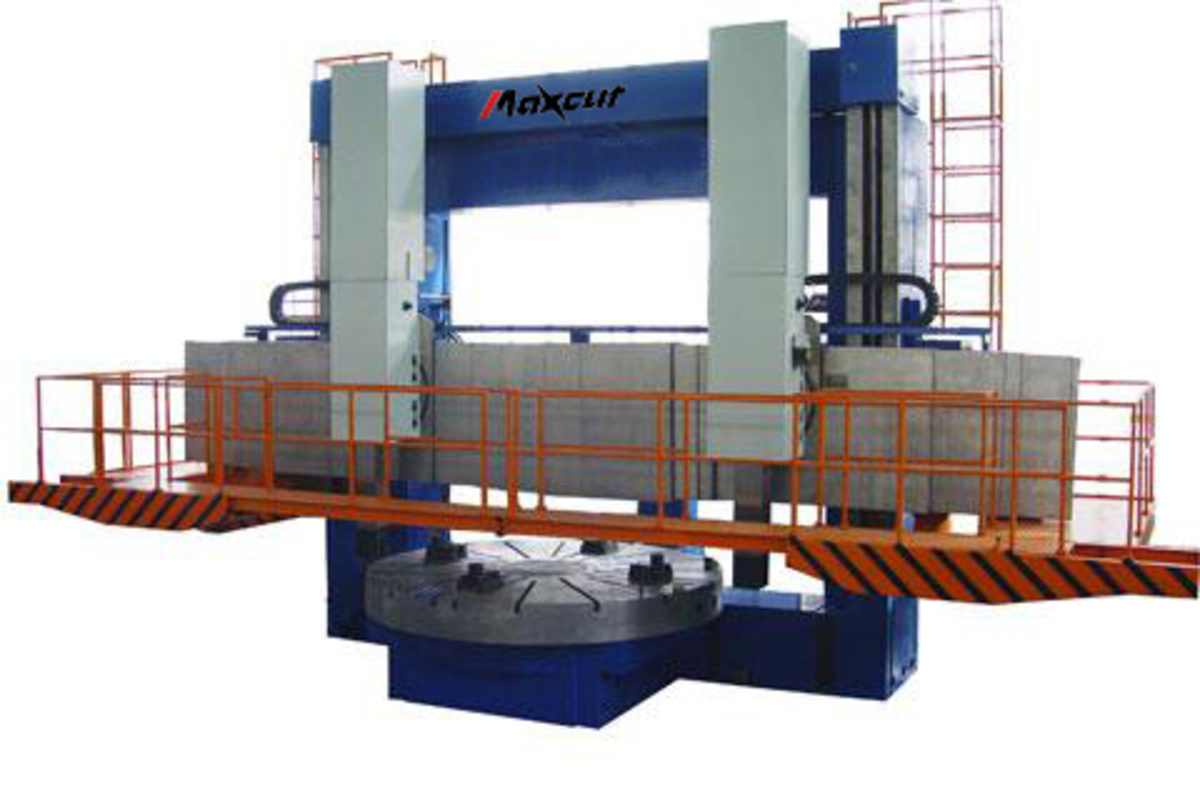

Product Image

Features:
Fagor 8055i/plus CNC control and 11” LCD color display
Heavy-duty box way design—4 box way on Y axis
18.5/22KW spindle motor
Optional Control features included in the offer:
Built-In engraving functions: X/Y Engraving and X/A Engraving if 4th Axis installed
Automatic TOOL LENGTH CALIBRATION finds the height of the tool automatically.
Conversational to G-code programming conversion feature allows operator to program machining job without G code
Inside/outside taper threading/Boring cycle
Quick programming helical taper interpolation or helical taper threading
6,000rpm spindle speed as standard
2 speed gear driver
Spindle oil cooler
ISO50 spindle
Rigid tapping
Portable MPG
Heavily ribbed cast iron components:
4 box way on Y axis
One piece Box type base with internal rib design
Fully enclosed & heavy duty metal guarding with removable side doors
Large fully ground work table with 5 T slots
Precision ground ball screws
Heavy-duty box way design
Telescopic way covers
Automatic lubrication with low lubrication fault
Coolant ring with adjustable nozzles;
Coolant system with check valve 142Gal,1.2HP pump,27gpm@64psi
Coolant gun and air gun
Wash down system
Chip auger Conveyer with chip collector
Low voltage circuit system
Early power failure detection module
Heat exchanger for electric cabinet
EMC -SCHAFFNER Brand EMC (electromagnetic compatibility) to avoid electrical noise
Anchor kits

Request Quote on This Model

SPECIFICATIONS

Description Unit METRIC S.A.E Unit
CAPACITY Table Diameter Mm 2250 88.58 Inch
Table Height Max machining dia of job/ 2500 Mm 2500 98.43 Inch
Max height to be turned 1600mm 1600 62.99
Table loading capacity Kgs 10000 22000 Lbs
TRAVEL X travel Travel of TOOL HEAD, horizontal 1400mm Mm 1400 55.12 Inch
Y travel  travel of RAM, VERTICAL 1000mm Mm 1000 39.37 Inch
Z travel travel of CROSS beam 1250mm Mm 1250 49.21 Inch
Table steps and speed of work table 2 steps, 1 to 80 rpm(step 1: fr 1 - 9.35 - 26.7 rpm; step 2: fr 3 - 28.04 - 80rpm) ISO 1 to 180 1 to 180 ISO
Spindle speed rpm 1 to 180 1 to 180 rpm
Spindle/table Motor KW 18.5/22 25/29 HP
max torque of work table 50 knm KNm 50
MOTOR Torque of feeding servo motor 26 Nm
Motor for BEAM lifting up or down 11 kW 11 14.67
Rapid traverse speed: 400 mm/min
Motor of beam up/down: 11 kW (2 shafts out)
Ram Servo motor for feeding in left & right: 62 Nm 50
Servo motor for vertical toolpost (with brake):62 Nm
max cutting force of TOOL HEADS: 30 kn 30
size of cross raM, section 220 × 220 mm 220 × 220 8.66 x 8.66
SIZE OF TOOL: 40 × 40 mm Mm 40 × 40 1.57 x 1.57 Inch
Max swivelling angle of  HEAD ±300 ±30 ±30
Cutting force of head: 35 kN Mm Inch
Total cutting force: 53 kN Mm Inch
Performance Rapid travel of head: 8000 mm/min MPM 8.0 315 IPM
traverse speed of beam 400mm/min MmPM 400 15.75 IPM
Feed Rate X/Y/Z range of feed for  turrets automatic mm/min MmPM 0.1 – 2000 mm/min 0.01-196.9 IPM
Positioning accuracy Mm 0.005 0.0002 Inch
Repeatability Mm 0.005 0.0002 Inch
Dimensions Length x Width x Height CM 536×460×537 Inch
Weight Kgs 38,000 Lbs

OPTIONS

Swivelling Second Ram -- Z2

Tool setting probe Renishaw
