MAXCUT VTC-5116E/1200

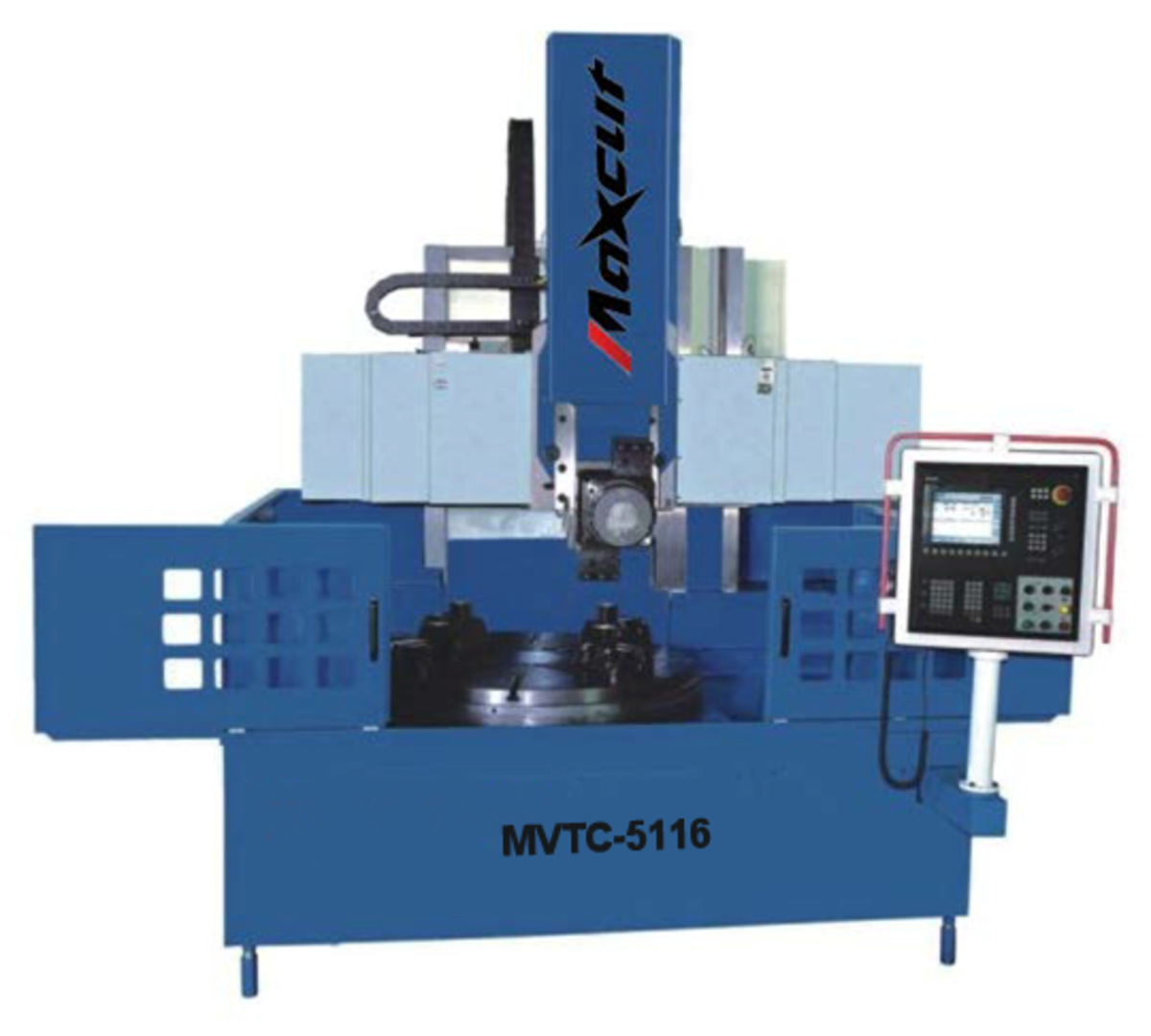

Product Image

FEATURES
Fagor 8055 CNC control
Automatic 4 Position turret
Conversational to G-code conversion feature allows operator to program jobs without G-code

Request Quote on This Model

SPECIFICATIONS

CAPACITY UNIT
Table Diameter Mm (Inch) 1400 (55.12))
Max turning diameter Mm (Inch) 1600 (64.00))
Max turning height Mm (Inch) 1200 (44.00)
Table loading capacity Mm (Inch) 5000 (11000)
Max torque of work table KNm 10
Spindle speed- 2steps RPM 2.5 to 200
TRAVEL
Ram horizontal travel Mm (Inch) -20 to 915 (-0.75 to 36)
Ram vertical travel Mm (Inch) 800 (31.50)
Cross rail travel Mm (Inch) 950 (37.40)
MOTOR
Spindle/table motor KW (HP) 30 (40)
Motor for cross rail travel KW (HP) 2.2 (3.0)
Servo motor for ram feed-horizontal NM 15 (62)
Servo motor for ram feed-vertical NM 15 (62)
RAM
Cross section size of ram Mm (Inch) 200 x 200 (8.0 x 8.0)
Tool size Mm (Inch) 32 x 32 (1.250 x 1.250)
Max swivelling angle of ram   ±0
Cutting force of ram KN 16
RAPID TRAVEL & FEEDRATE
Rapid travel of ram MPM (IPM) 6.0 (240)
Cross rail travel speed MMPM (IPM) 440 (17.32)
Ram feed rate MMPM (IPM) 0.1-2000 (0.004-80)
MACHINE SIZE
Machine length Cm (Inch) 320 (128)
Machine width Cm (Inch) 300 (120)
Machine height Cm (Inch) 320 (128)
Total machine weight kg (lbs) 12780 (28500)
