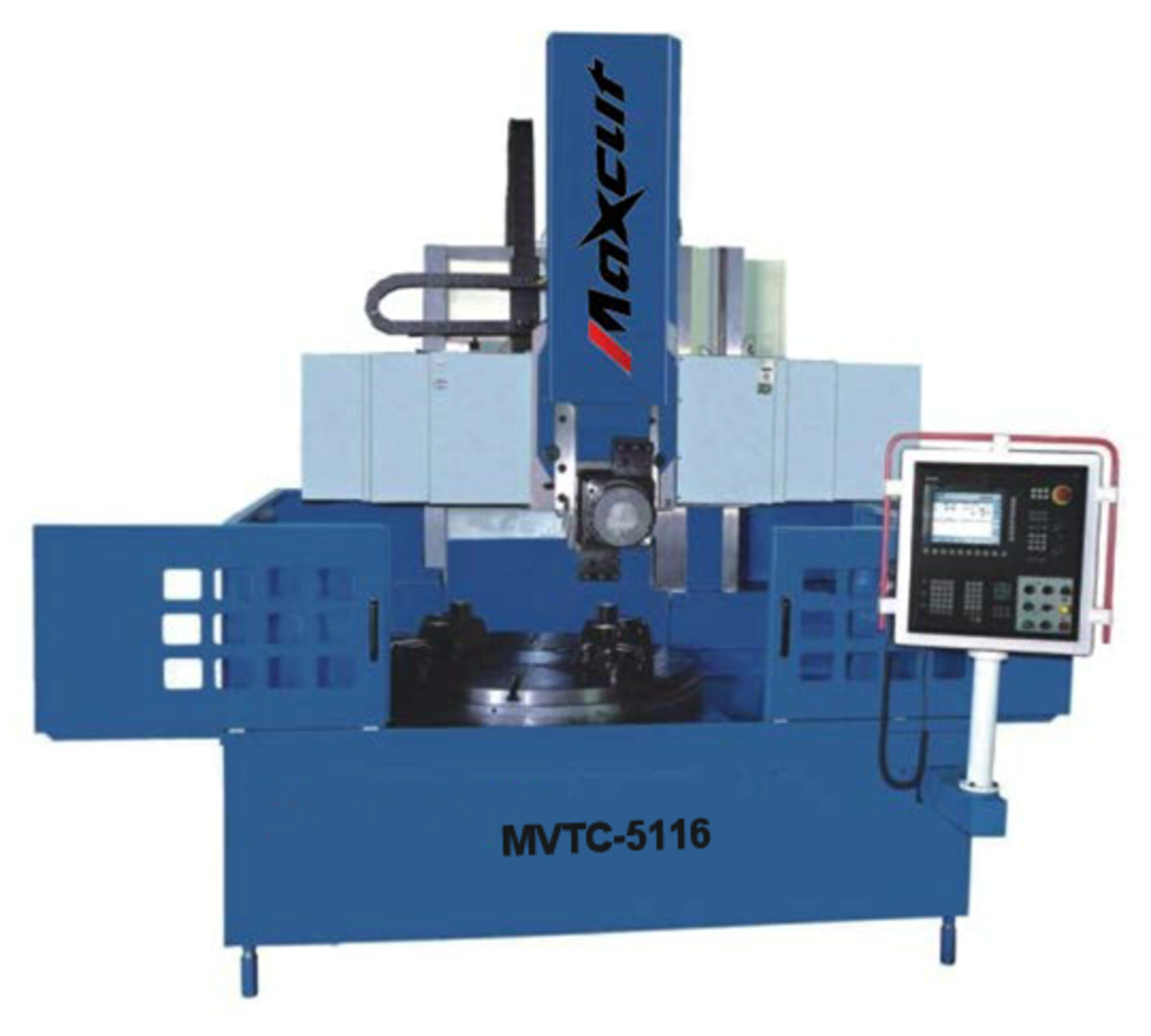

MAXCUT VTC-5116E/1000
FEATURES
Fagor 8055 CNC control
Automatic 4 Position turret
Conversational to G-code conversion feature allows operator to program jobs without G-code
Request Quote on This Model
SPECIFICATIONS
| CAPACITY | UNIT | |
| Table Diameter | Mm (Inch) | 1400 (55.12)) |
| Max turning diameter | Mm (Inch) | 1600 (64.00)) |
| Max turning height | Mm (Inch) | 1000 (40.00) |
| Table loading capacity | Mm (Inch) | 5000 (11000) |
| Max torque of work table | KNm | 10 |
| Spindle speed- 2steps | RPM | 2.5 to 200 |
| TRAVEL | ||
| Ram horizontal travel | Mm (Inch) | -20 to 915 (-0.75 to 36) |
| Ram vertical travel | Mm (Inch) | 800 (31.50) |
| Cross rail travel | Mm (Inch) | 950 (37.40) |
| MOTOR | ||
| Spindle/table motor | KW (HP) | 30 (40) |
| Motor for cross rail travel | KW (HP) | 2.2 (3.0) |
| Servo motor for ram feed-horizontal | NM | 15 (62) |
| Servo motor for ram feed-vertical | NM | 15 (62) |
| RAM | ||
| Cross section size of ram | Mm (Inch) | 200 x 200 (8.0 x 8.0) |
| Tool size | Mm (Inch) | 32 x 32 (1.250 x 1.250) |
| Max swivelling angle of ram | ±0 | |
| Cutting force of ram | KN | 16 |
| RAPID TRAVEL & FEEDRATE | ||
| Rapid travel of ram | MPM (IPM) | 6.0 (240) |
| Cross rail travel speed | MMPM (IPM) | 440 (17.32) |
| Ram feed rate | MMPM (IPM) | 0.1-2000 (0.004-80) |
| MACHINE SIZE | ||
| Machine length | Cm (Inch) | 320 (128) |
| Machine width | Cm (Inch) | 300 (120) |
| Machine height | Cm (Inch) | 320 (128) |
| Total machine weight | kg (lbs) | 12780 (28500) |
