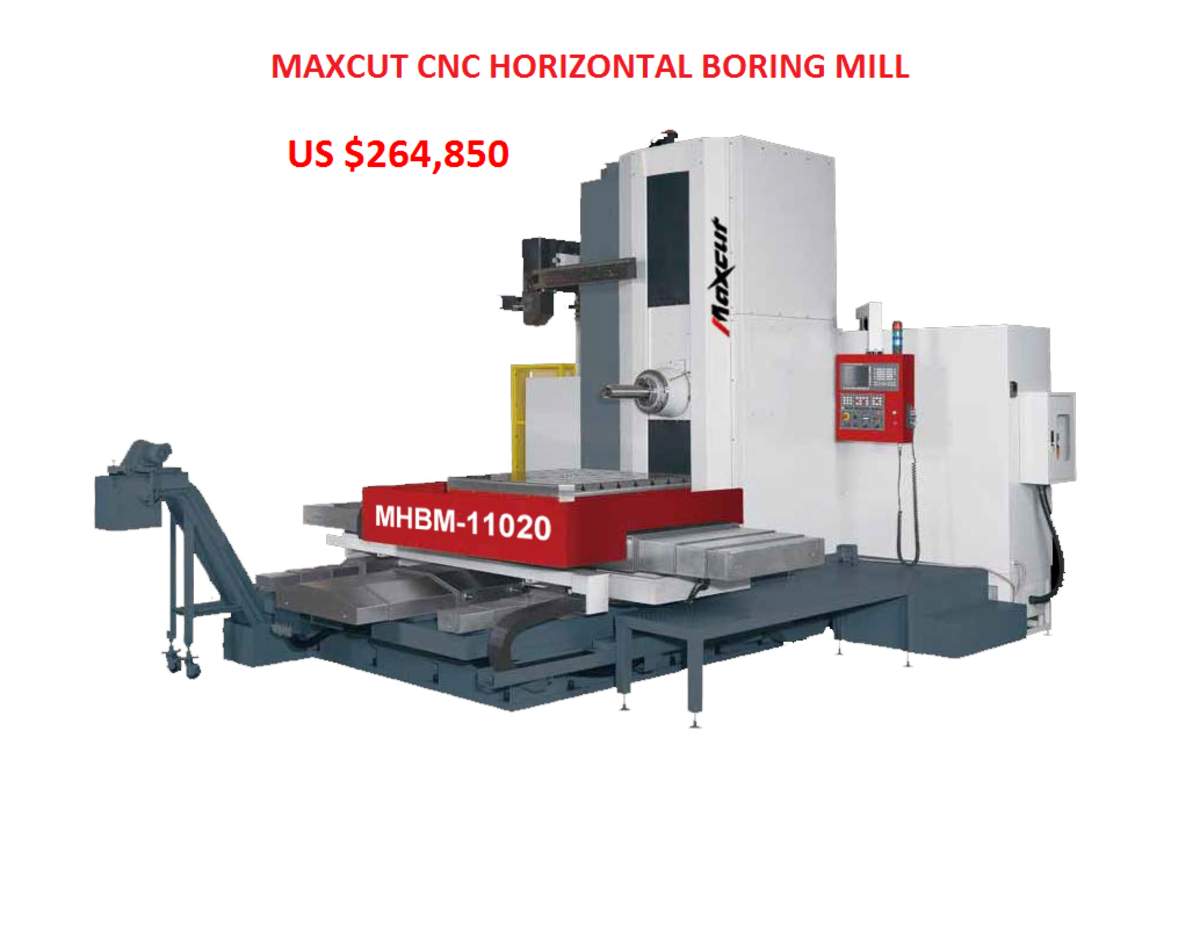

MAXCUT BORING MILL
Fagor 8060 control
Table capacity: 59” x 49.21”: - 13200Lbs loading capacity,
1° Index positioning
X/Y/Z/W travel: 2000 x 1500 x 1400 x 500mm;
spindle diameter: 110mm
2500 rpm spindle with ISO#50 taper
Request Quote on This Model
Specifications
| Machine Specifications | CNC MHBM- 11020RS | |
| TRAVEL | UNIT | |
| X axis travel | mm | 2000 |
| Y axis travel | mm | 1500 |
| Z axis travel | mm | 1400 |
| W axis travel | mm | 500 |
| TABLE (STD) | ||
| Working area of table | mm | 1250 x 1500 |
| T slot | mm | 7 x 22 x 150 |
| Table index | degree | 1 |
| TABLE (OPT) | ||
| Working area of table | mm | 1250 x 1500 |
| T slot | mm | 7 x 22 x 150 |
| Table max loading weight | KG | 5000/11000Lbs; optional 9000kg/20,000Lbs |
| Table index | degree | 1° Index positioning |
| SPINDLE | ||
| Taper | ISO | #50 |
| Spindle speed | rpm | 35-2500 |
| Spindle step | 2 steps (auto.) | |
| Quill diameter (W axis) | mm | 110 |
| Spindle bearing I/D | mm | 150 |
| FEED | ||
| X axis rapid feed | mm/min | 12000 |
| Y axis rapid feed | mm/min | 12000 |
| Z axis rapid feed | mm/min | 12000 |
| 3 axes cutting feed | mm/min | 10000 |
| B axis cutting speed (1° indexing / Continuous) | rpm | 5.5 / 2 |
| XYZ ballscrew | mm | 55xP12/C3 double nut |
| W axis ballscrew | mm | 40xP5/C3 double nut |
| ATC | ||
| No. | 60 | |
| Max. tool diameter | mm | 125/250 |
| Max. tool length | mm | 300 |
| Max. tool weight | KG | 25 |
| Time of tool change (T-T) | sec | 9 |
| MOTORS | ||
| Spindle motor (30 minute/continuous) | KW | 15/18.5 |
| X axis motor Fagor | KW | 4 / 7.2 |
| Y axis motor Fagor | KW | 6 / 8.6 |
| Z axis motor Fagor | KW | 4 / 7.2 |
| B axis motor Fagor | KW | 4 / 5.7 |
| W axis motor Fagor | KW | 3 / 1.67 |
| Hydraulic motor | KW | 3.75 |
| Coolant pump motor | KW | 1.7 |
| Sideway lubrication motor | W | 12 |
| GENERAL | ||
| Machine dimension | mm | 4715 x 7543 x 3706 |
| Machine weight | KG | 22500 |
