BRAKE SPECIAL

Product Image

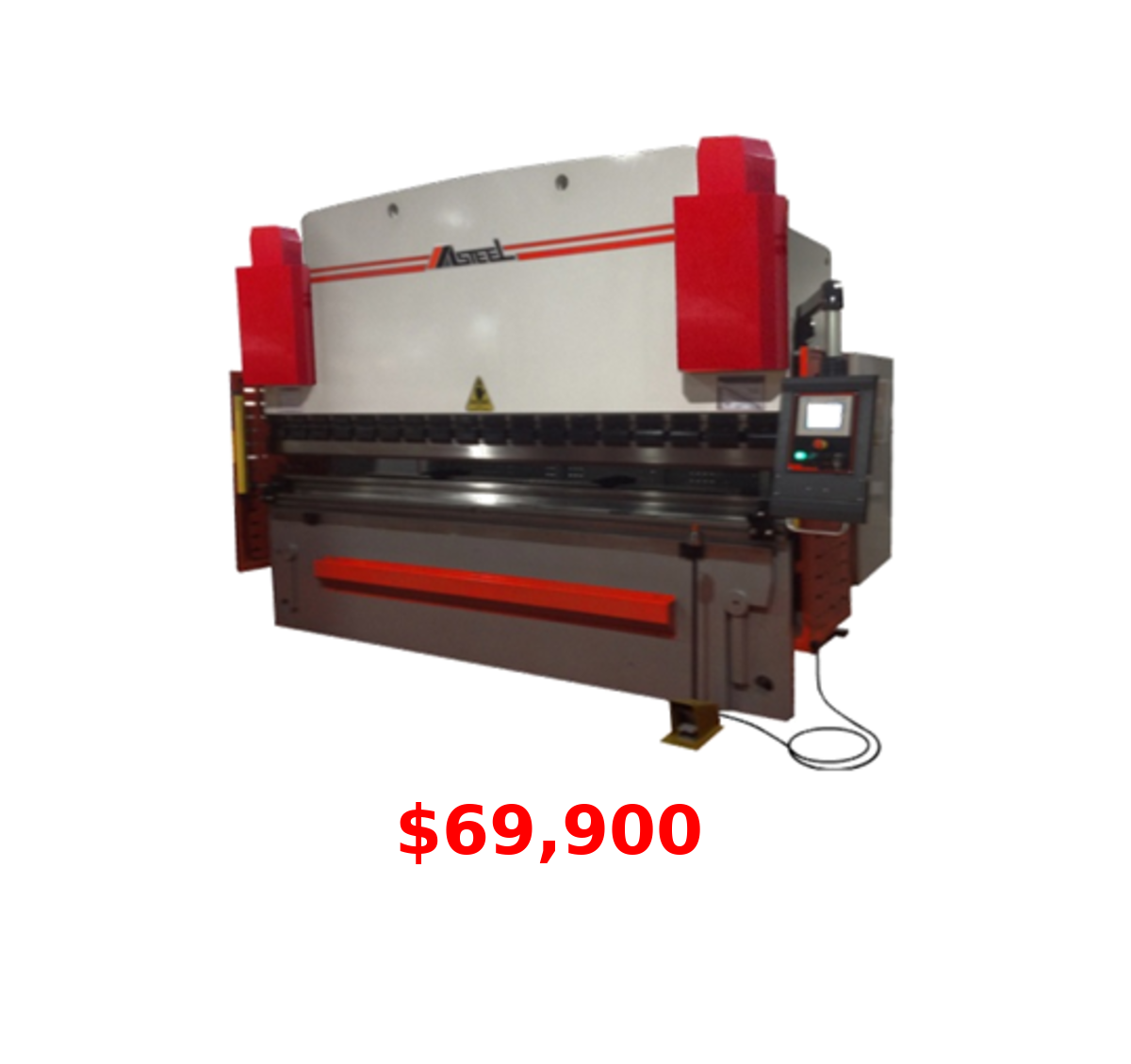

MASTEEL MBHSA-12190 TP-700 control 7" TOUCH SCREEN CNC Y1/Y2/X/ AXIS CNC CROWNING CONTROL

Request Quote on This Model

Specifications

MODEL MBHSA-12190
Max. Capacity Tons 190
Max. Bending Length 12'
Distance between Frames 122"
Height of Bed 36"
Bed Below Floor __
Depth of Throat 12-3/4"
Length of Ram Stroke 8"
Fast Approach Speed IPM 237
Press Speed IPM 25
Fast Return Speed IPM 245
Max. Open Height 17-1/8"
Main Motor 15
Back gauge Travel 28"
Weight Lbs 24,200
Dimensions L x W x H 151 x 70 x 105
TOOLING INCLUDED IN PRICE
PUNCH HOLDER COMBINATION  EUROPEAN/NORTH AMERICAN
PUNCH GOOSENECK MP0 – G915EQ -25.5x100 R1/85 OR  R2/85
DIE MASTEEL MD-4W5-110x090 4 WAY DIE
