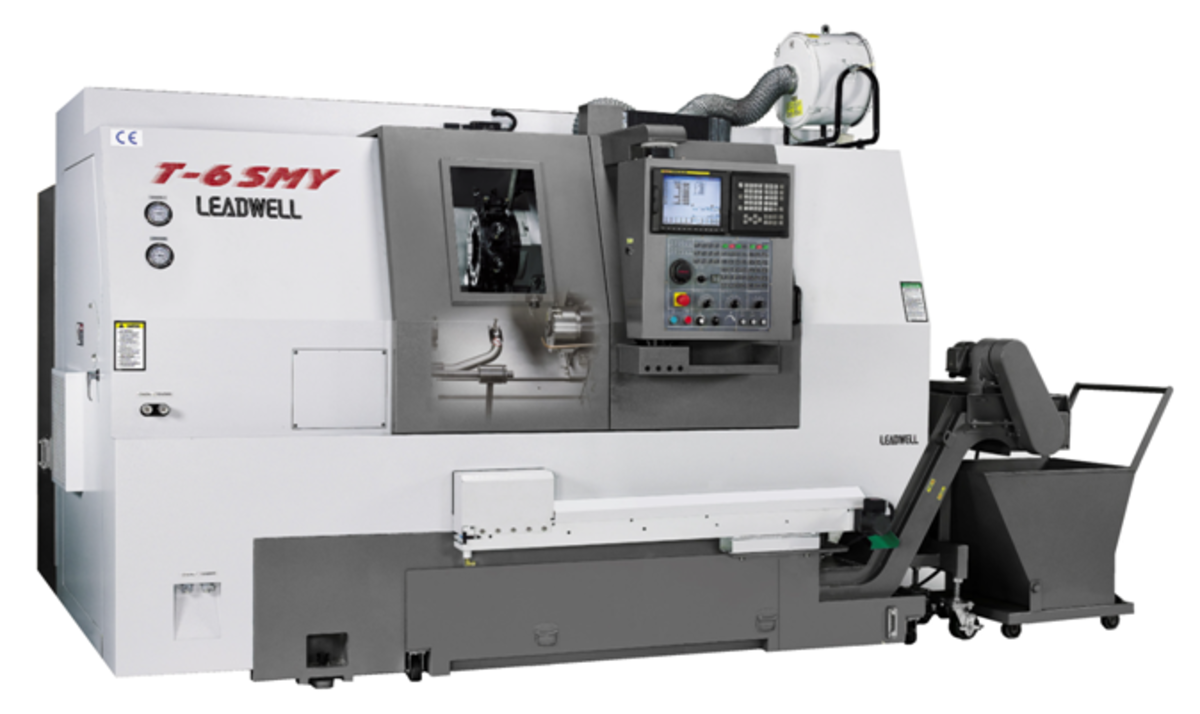

T-6 SMY
FEATURES
Fully enclosed guarding, Work light, Metric disc, 3” jaw open center chuck, Foot peddle switch, Wide angle v-belt VDI disc, Bullet proof glass, Spindle side coolant nozzle, C axis
SPECIFICATIONS
| CAPACITY | Unit | |
| Max Swing | mm(in) | 450 (17.7) |
| Max turning diameter | mm(in) | 380 (14.9) |
| Max turning length | mm(in) | 458 (18) |
| Bar capacity | mm(in) | 52 (2) |
| TRAVEL | ||
| X axis | mm(in) | 190+15 (7.48+0.59) |
| Y axis | mm(in) | ±50 (±1.96) |
| Z axis | mm(in) | 450 (17.7) |
| Z2 axis | mm(in) | 500 (19.68) |
| SPINDLE | ||
| Spindle speeds range | rpm | 6000 |
| Chuck size | mm(in) | 156 (6) |
| Spindle motor power | KW(HP) | 7.5 (10) |
| Min. spindle indexing increment | -- | ±0.001 |
| SUB SPINDLE | ||
| Sub spindle speeds range | rpm | 6000 |
| Sub chuck size | mm(in) | 156 (6) |
| Sub spindle motor power | KW(HP) | 7.5 (10) |
| Sub spindle feed motor | KW(HP) | 1.6 (2.1) |
| TURRET | ||
| Number of tool stations | pcs | 12 |
| Shank height for square tool | mm(in) | VDI 30 20(0.8) |
| Turret indexing time (adjacent tool) | sec | 0.4 |
| Rotary tool spindle speed range: axis units | rpm | 4000 |
| FEEDRATE | ||
| X/Z/Y axis rapid traverse | mm(in) | 15000/30000/7500 (590.5/1181/295) |
| MOTORS | ||
| X/Z/Y axis motor | Kw(HP) | 1.6 (2.1) |
| MACHINE SIZE | ||
| Total machine weight | kg | 4600 |
| Machine length | mm(in) | 3014 (118.6) |
| Machine width | mm(in) | 2060 (81.1) |
| Machine height | mm(in) | 2000 (78.7) |
| Power requirement | KVA | 40 |
OPTIONAL ACCESSORIES
| Tool setter |
| Parts catcher |
| Alarm lamp |
| Bar feeder |
| Auto door |
| Tool tip air blow nozzles |
| High pressure coolant |
| Collet chuck |
| Oil mist collector |
| Linear scales |
| Chuck with high/low pressure |
| Oil skimmer |
| Transformer |
| Air conditioner in cabinet |
| Chip conveyor outside machine |
| Chip bucket |
SUB-SPINDLE
The
sub-spindle replaces the
Standard
tailstock on turning
Centers.
A position CZ sensor
is
attached to the sub-spindle
so
the sub-spindle can then
be
synchronized with the
main
spindle. Special
software
allows the work
piece
to be transferred from
the
main spindle to the sub-
spindle
at any speed for
secondary machining
operations.
This eliminates
the
need for operator
Allows
machining of both
Ends
of parts.
LIVE TOOL TURRET
The
live tool turret replaces the
Standard
turret on T-6 SMY turning
Centers.
Each tool can then become
a
rotating tool for both milling and
drilling
operations.
Y AXIS
The Y axis design can decrease inaccuracy
from machining and arithmetic error
