MULTI 25

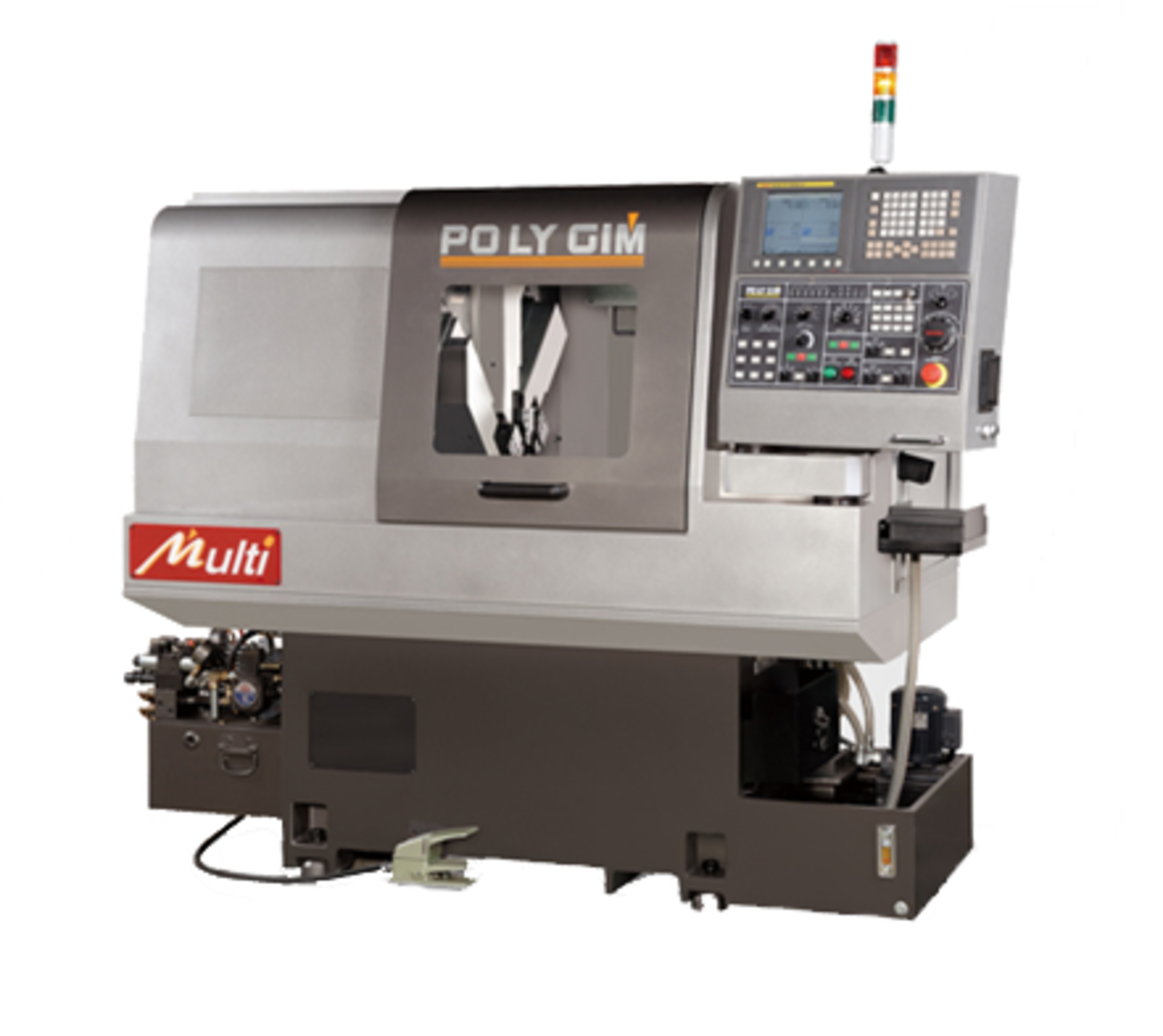

Product Image

PO LY GIM

CNC Lathe

www.polygim.com.tw

Request Quote on This Model

Specifications

Items MULTI 25
Max. Machining Dia. 26 mm
Max. Machining Length Bar diameter x3
Max. Cross Travel (X Axis) 170 mm
Max. Longitudinal Travel (Z Axis) 150 mm
Bore of Spindle 34 mm
Max. Bar Feeding Dia. 26 mm
Type of Collet 161 E
Spindle Motor 2.2 kw
Spindle Speed Range 100-5000 r.m.p.
Sub-Spindle Motor (Option) 1.1 kw
Sub-Spindle Speed Range (Option) 100-5,000 r.m.p.
Rapid Traverse Speed (X & Z Axis) 15 m/min
Min. Input Unit 0.001 mm
Cutting Tool Size 16 mm
Max. Bore Size of Tool 20 mm
X1/Z1/Z2/A2/Z3 Axes Motor 0.75 kw
A3 Axes Motor (Option Sub-Spindle) 0.75 kw
X2/Y2/X3 Axes Motor 0.5 kw
Number of Multi-Spindle Tools 3 pc
Coolant Pump Motor 1/2 H.P.
Hydraulic Pump Motor 1 H.P.
Machine Size (L x W x H) 1658 x 1362 x 1530 mm
Machine Size-Option Sub-Spindle (L x W x H) 2000 x 1359 x 1657 mm
Machine Net Weight (Without Chip Conveyor) 1220 kgs
Machine Net Weight (Option Sub-Spindle, Without Chip Conveyor) 1880 kgs

.
