Mini-88

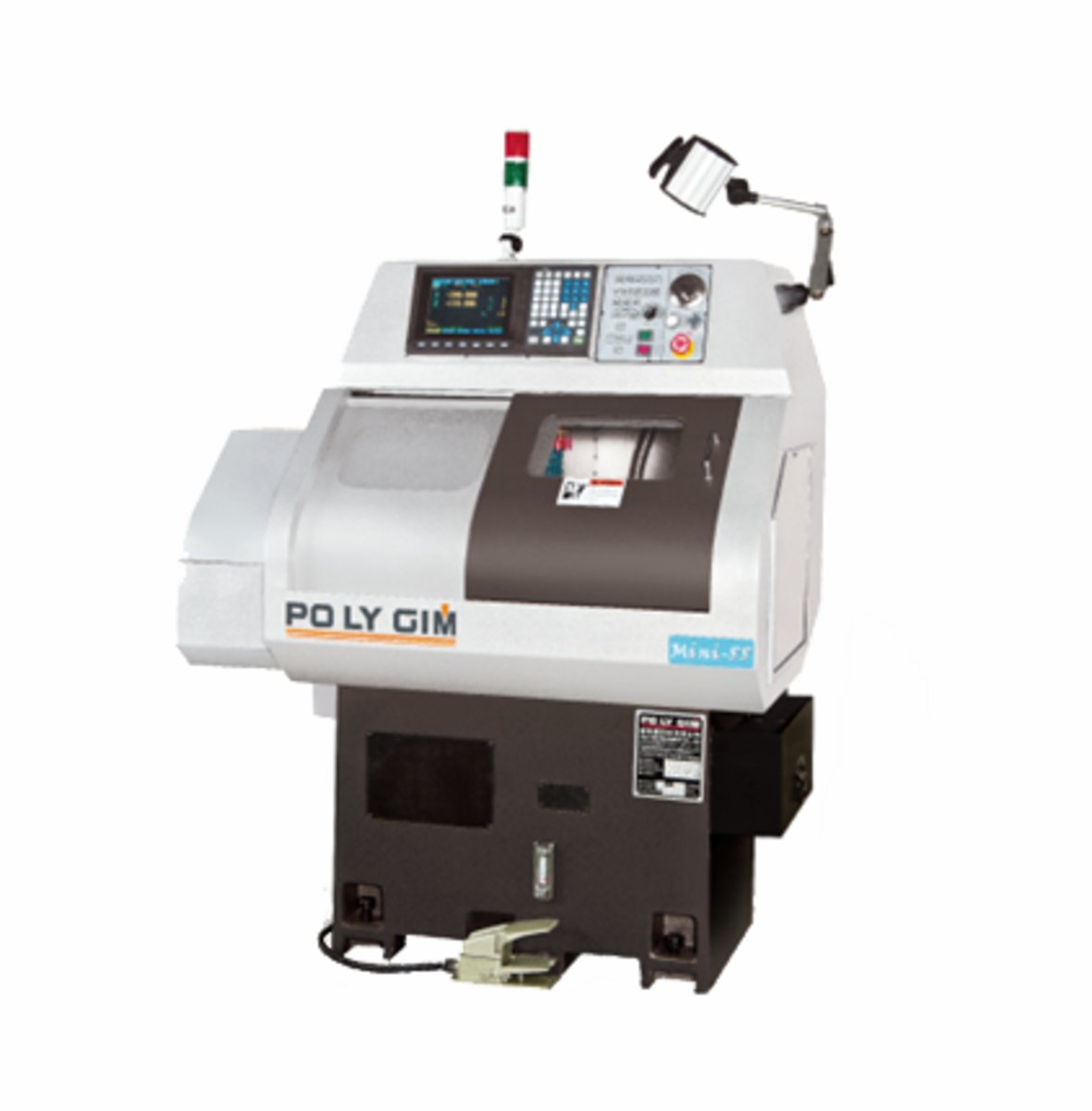

Product Image

PO LY GIM

Mini CNC Lathe

www.polygim.com.tw

Request Quote on This Model

Specifications

Items MINI-88
Max. Machining Dia. 60 mm (with chuck) 26 mm (with collet chuck)
Max. Machining Length 120 mm
Swing Over Cross Slide 120 mm
Max. Cross Travel (X Axis) 170 mm
Max. Longitudinal Travel (Z Axis) 170 mm
Bore of Spindle 34 mm
Max. Bar Feeding Dia. 26 mm
Spindle Nose Ø85 mm
Hydraulic Chuck 4"
Spindle Motor 2.2 kw / 3 H.P.
Spindle Speed Range 100-5000 r.p.m.
Rapid Traverse Speed (X & Z Axis) 15 m/min
Min. Input Unit 0.001 mm
Cutting Tool Size 16 mm
Max. Bore Size of Tool Ø20 mm
Coolant Pump Motor 1/4 H.P.
Machine Dimension (L x W x H) 1200 x 1000 x 1500 mm
Machine Net Weight 1058 kgs
