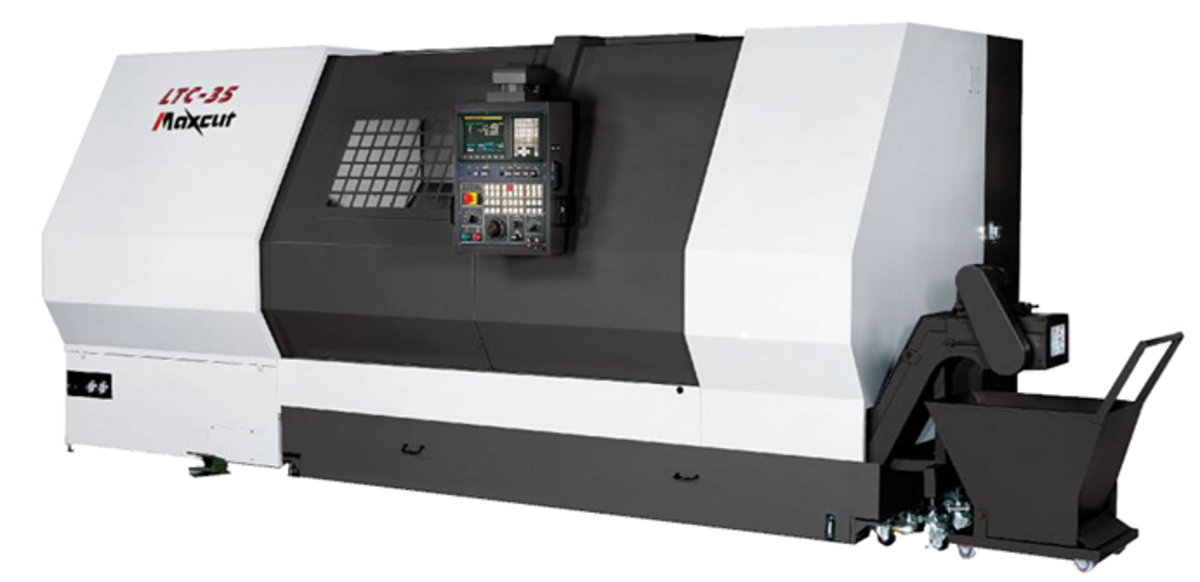

MAXCUT LTC4-35/2100
FEATURES
Fagor control 8055 or Fanuc 0i-TD with 10.4"LCD + Manual guide
A2-11 18” hydraulic chuck with Hard/soft jaws
Programmable tail-stock with hydraulic quill
Two speed gearbox for heavy-duty jobs
High/low pressure of chuck
Chain type chip conveyor
Main spindle orientation
Spindle air outer blow
High pressure pump

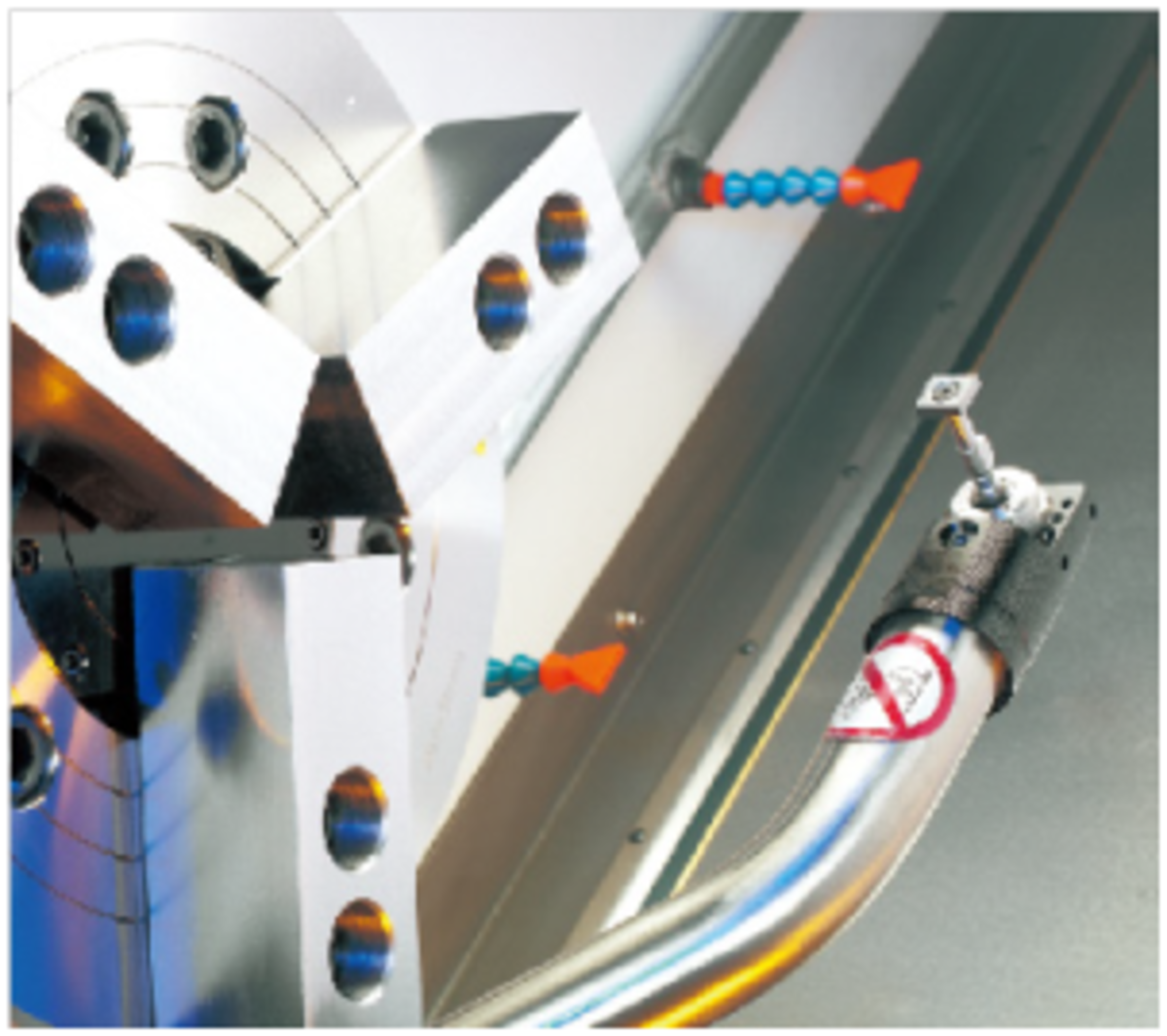

Tool Setter
Request Quote on This Model
SPECIFICATIONS
| ITEM | LTC4-35/2100 | |
| CAPACITY | UNIT | |
| Max. swing | mm (in) | 800 (31.5) |
| Max. turning diameter | mm (in) | 600 (24.0) |
| Max. turning length | mm (in) | 2100 (82.6) |
| Bar capacity | mm (in) | 115 (4.5 |
| Max workpiece weight (w/o tailstock) | Kg (lb) | 1200 (2646) |
| TRAVEL | ||
| X axis | mm (in) | 300 (11.8”) + 20 (0.7”) |
| Z axis | mm (in) | 2100 (82.6) |
| Y axis | mm (in) | -- |
| SPINDLE | ||
| Spindle speed range | rpm | 1500 |
| Chuck size | mm (in) | 460 (18) |
| Hole through spindle | mm (in) | 115 (4.5) |
| Spindle power | HP | 60 |
| TURRET | ||
| Number of tool stations | 12 | |
| Shank height for square tools | mm (in) | 32 (1.25) |
| Shank height for boring tools | mm (in) | 50 (2)/ OPT 63 (2.5) |
| Index time (adjacent tools) | sec | 1.7 |
| Index time (180) | sec | 4.5 |
| FEEDRATE | ||
| X axis | M/min | 15 |
| Z axis | M/min | 20 |
| TAILSTOCK | ||
| Quill movement type | Auto | |
| Quill stroke | mm (in) | 125 (4.9) |
| Quill diameter | mm (in) | 110 (4.3) |
| Quill inside taper | M.T. | 5 |
| MACHINE SIZE | ||
| Power requirement | KVA | 55 |
| Machine length | mm | 5380 |
| Machine width | mm | 2090 |
| Machine height | mm | 2192 |
| Total machine weight | kg | 10200 |
ACCESSORIES
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
| RS232 interface | VDI tool disc |
| Fully enclosed guarding | Tool setter |
| Work light | Status lights |
| Metric or inch tool disc | Tool tip air blow system |
| Heat exchanger | High pressure coolant |
| Levelling screws | Oil mist collector |
| Maintenance tool box | Chip conveyor |
| Buzzer | Chip bucket |
| 3” jaw open center chuck | Manual steady rest |
| Chuck foot switch | Auto steady rest with hydraulics |
| Programmable tailstock | Linear scales |
| Wide angle v-belt | Oil skimmer |
Optional Power turret
|
Heavy duty EWS BMT75 Power turret 13.4HP, Heavy duty EWS BMT75 Power turret + C axis |
Optional tooling package
|
Heavy duty Power turret tooling package 2 axial holders; 4 radial holders;4 ID holders (2 inch);4 OD holders (1 inch); 1 set of sleeves |
