LTC-25iL/1500

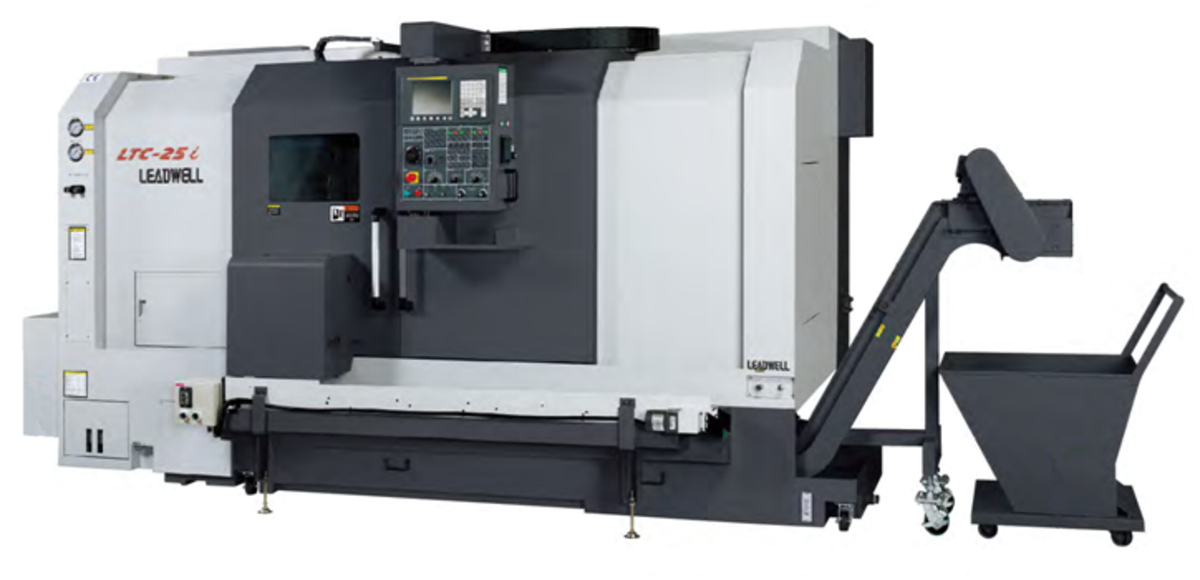

Product Image

FEATURES Fanuc F-0iTD or Fagor 8055 A2-11 mount 12” hydraulic chuck 4.064” spindle bore/bar capacity 4.06” High/low pressure of chuck Hard jaws ( one set) Soft jaws (one set) Single point main spindle orientation Tool setter Programmable tailstock High pressure pump Set of tool holders Chain type chip conveyor and bucket

Request Quote on This Model

SPECIFICATIONS

ITEM   LTC-25iL/1500
CAPACITY UNIT
Max Swing mm (in) 670 (26.3)
Max turning diameter mm (in) 450 (17.7)
Max turning length mm (in) 1550 (61)
Bar capacity mm (in) 103 (4.06)
TRAVEL
X axis mm (in) 225+25 (8.8+1)
Z axis mm (in) 1590 (62.6)
SPINDLE
Spindle speed rpm 2600
Chuck size mm (in) 305 (12)
Spindle nose   A2-11
Spindle motor power KW(HP) 18.5 (24.8)
TURRET
Number of tool stations pcs 12
Shank height for square tool mm (in) 25 (1)
Shank diameter for boring bar mm (in) 40 (1.5)
FEEDRATE
X axis M/min(ipm) 15000 (590.5)
Z axis M/min(ipm) 20000 (787.4)
FEED MOTORS
X axis KW(HP) a c12B-2000i/1.8 (2.4HP)
Z axis KW(HP) a 22i-3000i/4.0 (5.4HP)
TAILSTOCK
Quill diameter mm (in) 100 (3.9)
Quill inside taper M.T. 5
MACHINE SIZE
Total machine weight kg 8100
Machine length mm (in) 4370 (172)
Machine width mm (in) 1930 (76)
Machine height mm (in) 2106 (82.9)
Power requirement KVA 40

ACCESSORIES

STANDARD ACCESSORIES OPTIONAL ACCESSORIES
Metric disc Inch disc Chip bucket
Manual tailstock Tool setter Two speed gearbox
Buzzer Manual steady rest Collect chuck
Heat exchanger        Hydraulic steady rest Mist separator
Full enclosed splash guard Alarm lamp Oil skimmer
jaw open center chuck Air conditioner H.T.D belt
Foot switch    Bar feeder Transformer
Wide angle V-belt Auto door Transformer
VDI disc (ForLTC-25iM) Spindle air outer blow EWS Turret BMT-65
  High pressure pump Chip conveyor

Optional Power turret

Heavy duty BMT65 Power turret + C axis
