WS-1824FA

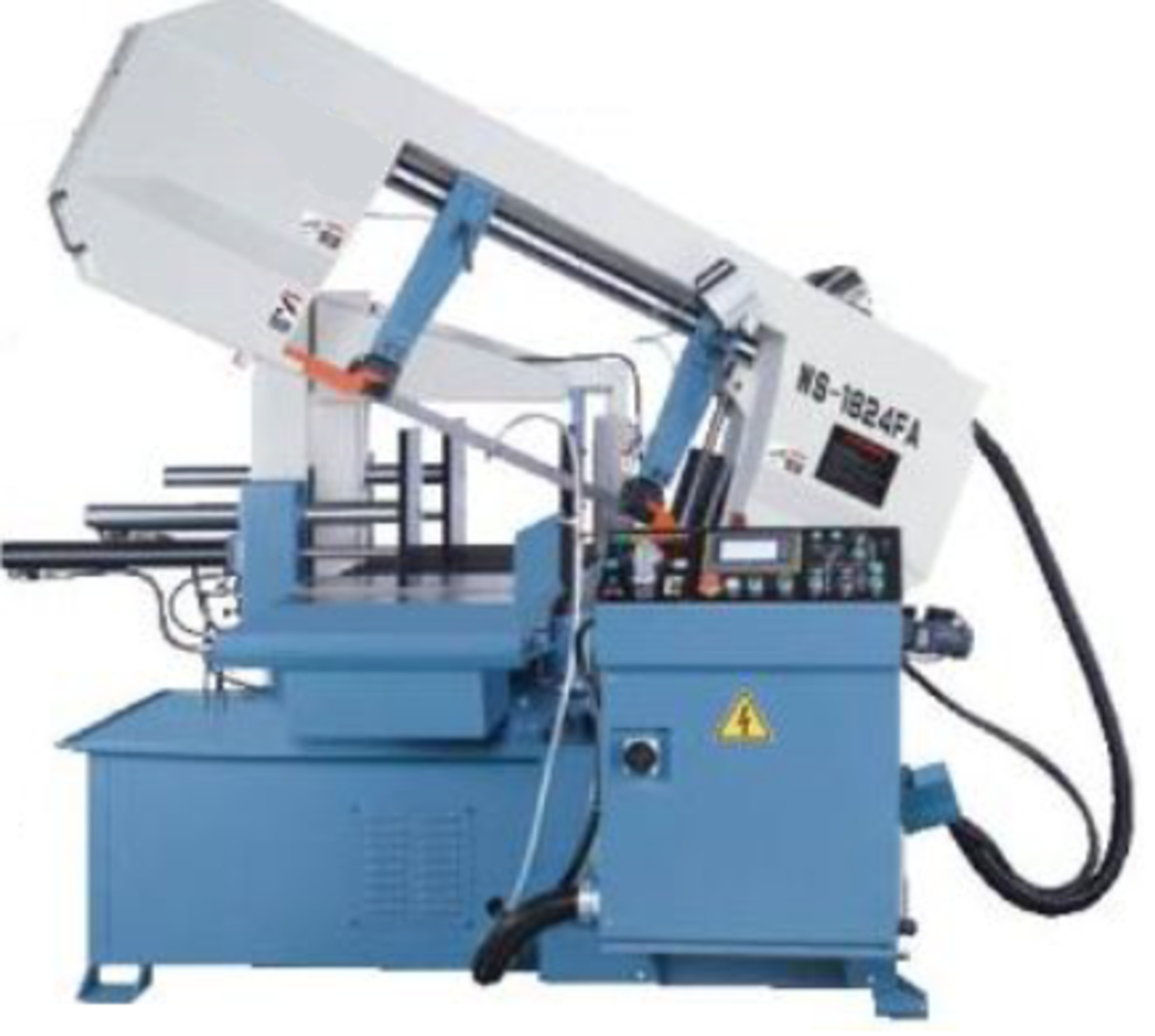

Product Image

FEATURES
Miter cutting 0°-45°
Touch screen and length encoder
Variable blade speed by motor inverter
Hydraulic blade tension device
Equipped with two vertical presses
Manual bow height setting
Vise pressure regulator
Fully automatic
Auto chip conveyor
Blade tension gauge

Request Quote on This Model

Technical Specifications

ITEM UNIT
Blade Motor HP 5
Hydraulic  Motor HP 1
Coolant  Motor HP 1/6
Blade Speed mpm 20-85
Saw Blade mm (WxTxL) 41 x 1.3 x 5330
Hydraulic Tank Liters 15
Coolant Tank Liters 55
Table Height mm 925
Weight NW/GW 1520 / 1770  kgs
PACKING DIMENSIONS mm (LxWxH) 2750 x 2270 x 1950

CUTTING CAPACITY
