RF-500DSAH

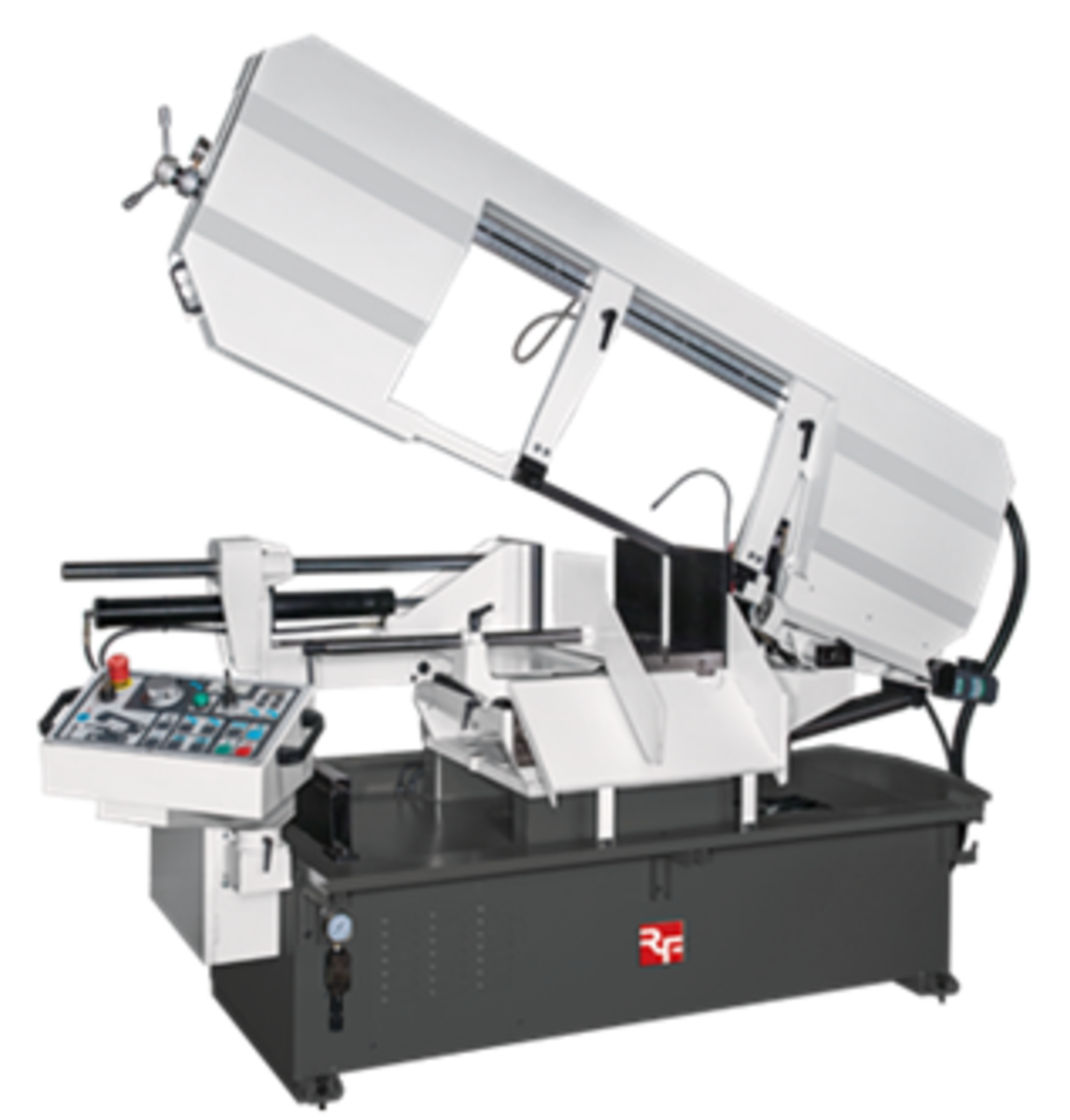

Product Image

Dual Swivel cutting angle from 0~+-60 degrees. Can fix the position every 5 degrees. High efficiency gear drive system cooperated to variable step pulley provides fast changing speed. Also with LED readout for clear speed figure Heavy duty one-piece stand with swing control box for better operation. Enlarged hydraulic cylinder and buffer spring enhance the cutting stability. Hydraulic vise system can assist to clamp different size of workpiece properly. Electric shut-off system and alarm. Cleaning hose and nozzle assist in washing chips away Easy access chip tray allows quick cleanup Self-propelled blade brush extends the blade life Optional selection includes laser indicator and hydraulic tension meter

Request Quote on This Model

Technical Specifications

ITEM UNIT RF-330NA
Main Motor HP Main Motor / 5HP Hydraulic Motor / 2HP Coolant Pump / 1/8HP
Speed Mt/min 60HZ / 32~96 50HZ / 26~80
Ft/min 60HZ / 106~317 50HZ / 85~264
Saw Blade mm (WxTxL) 41 x 1.3 x 5890
inch (WxTxL) 1.61" x 0.05" x 231.88"
Machine Dimentions mm (LxWxH) 3000 x 1270 x 1730
inch (LxWxH) 118" x 50" x 68"
Weight NW/GW 1650 / 1860 kgs
3635 / 4095 lbs
PACKING DIMENSIONS mm (LxWxH) 2930 x 1140 x 1981
inch (LxWxH) 115.3" x 44.8" x 78"

CUTTING CAPACITY
